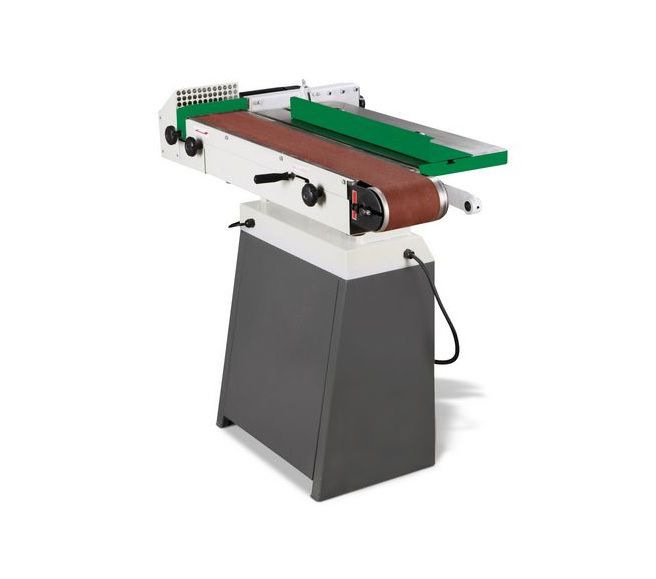

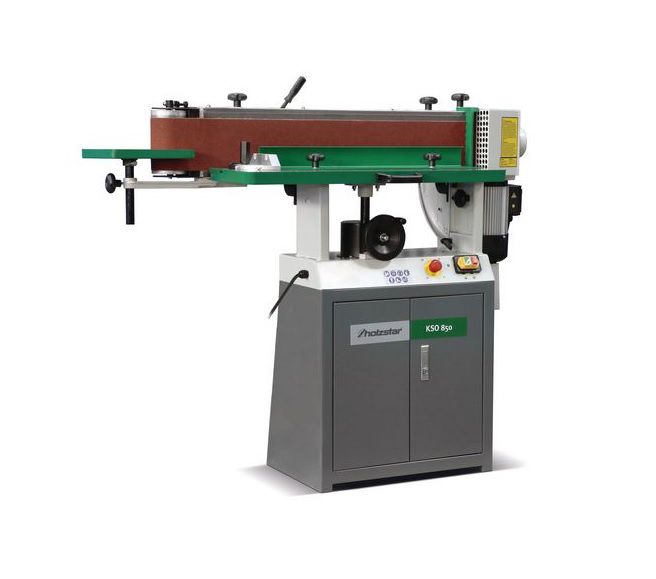

Sturmer Holzstar KSO 850 Osc' Tilting Belt and Spindle Sander 2200W 230v
Product Code: STU/5900851
Brand: Stuermer
Low Stock - Contact Us For Availability
£1,559.99 Inc. VAT
£1,299.99 Exc. VAT
COLLECTION
DELIVERY
Sturmer Holzstar
KSO 850 Osc' Tilting Belt and Spindle Sander 2200W 230v
ref: 5900851
Key Features
- KSO 850 15mm Osciallating tilting belt & spindle sander + handwheel R&F work table w T slots + mitre att + cabinet base + 2200W motor 230v 16 Amp
- With oscillating sanding belt for a good removal rate, a clean sanding pattern and a longer service life of the sanding belt
- With height-adjustable sanding table

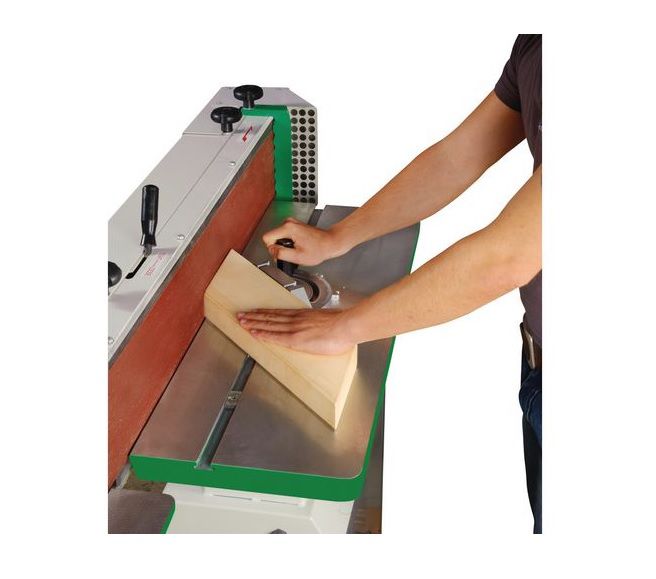

- Standard with -45 ° to + 45 ° infinitely adjustable miter and workpiece stop
- Infinitely tiltable sanding unit (0 ° -90 °) for vertical and horizontal sanding

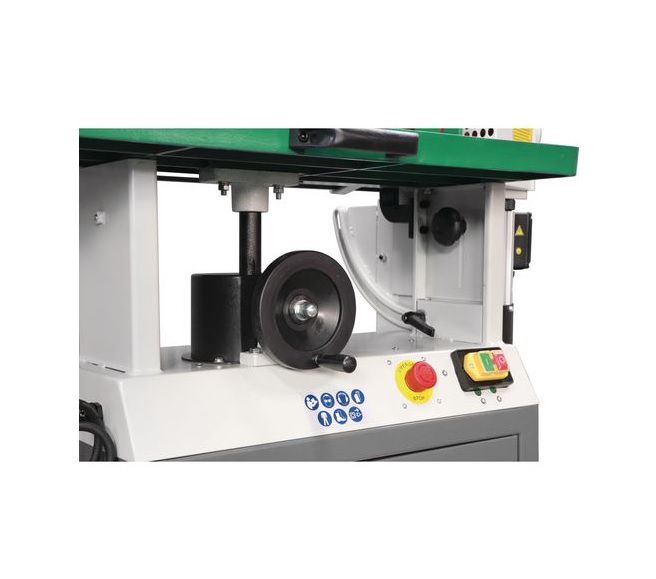

- Table height adjustment by handwheel
- Robust gray cast iron work table with T-slots, stable machine stand when working

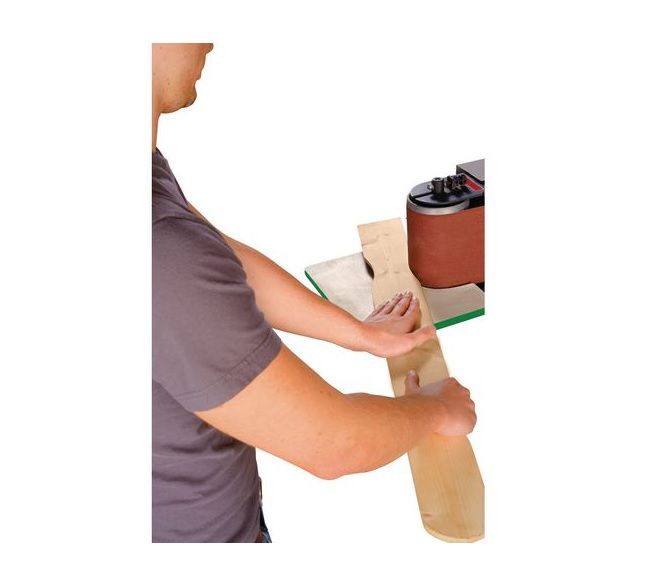

- With height-adjustable additional table for contour sanding
- Quick and easy sanding belt change via quick clamping system
- Spring-loaded clamping device for a uniform belt tension
- Sanding sole with graphite coating as standard
- Extraction nozzle Ø 100 mm
- With lockable storage option in the standard substructure
Technical details
Dimensions and weights
- Length approx.: 1430 mm
- Width/depth approx.: 600 mm
- Height approx.: 1250 mm
- Weight approx.: 187 kg
Electrical Data
- Absorbed power drive motor: 2.2 kW
- Mains frequency: 50 Hz
Extraction port
- Extraction port diameter: 100 mm
Sanding machine
- Sanding belt length: 2515 mm
- Sanding belt width: 150 mm
- Circumferential belt speed(s): 16 m/s
- Sanding surface length: 950 mm
- Sanding surface width: 180 mm
Work top(s)
- Work table height adjustment: 80 mm
- Longitudinal table length: 850 mm
- Longitudinal table width: 300 mm
- Longitudinal table height adjustment: 80 mm
- Min. cross table height: 965 mm
