Sturmer Holzstar KGZ 305 E Sliding Crosscut Mitre Saw 305mm 2000W 230v

Sturmer Holzstar

KGZ 305 E Sliding Crosscut Mitre Saw 305mm 2000W 230v

ref: 5702305

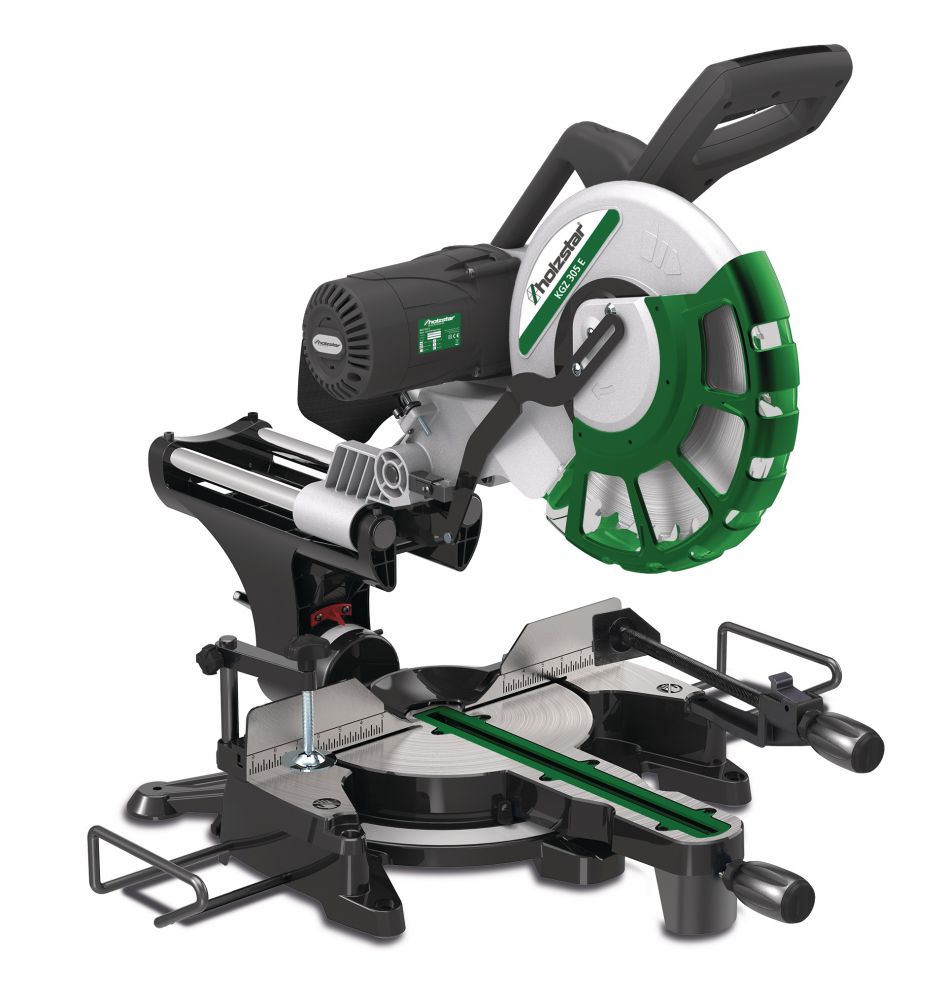

• KGZ 305 E 305mm Double bevel sliding crosscut mitre saw + laser + 2000W motor 230v
• Infinitely adjustable double mitre and tilt to the left
• Base plate and rotary table made of die-cast aluminium, at the same time compact, robust and easily transportable

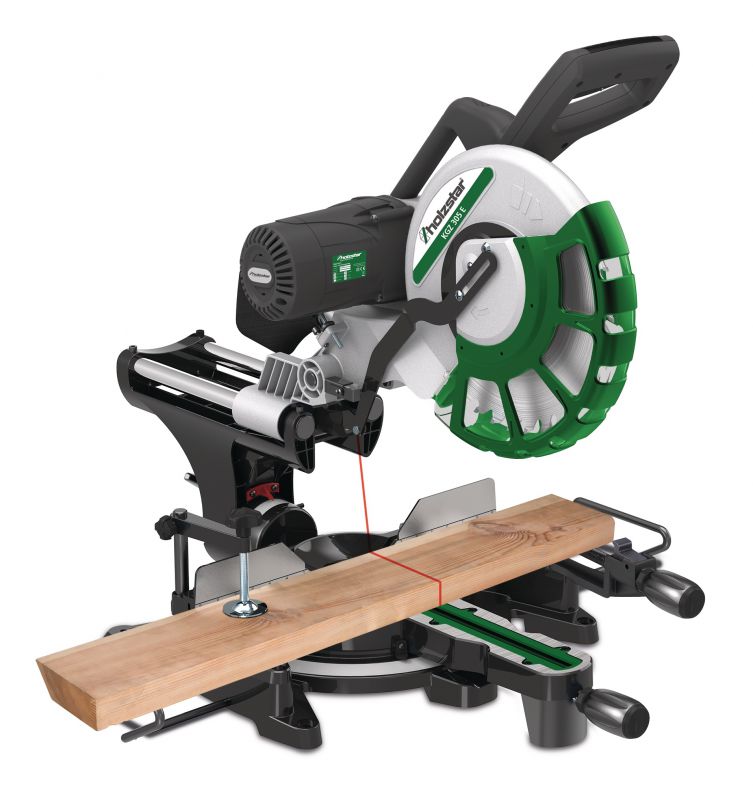

• Laser projection on the workpiece for precise control of the cutting position
• Laterally extendable support aids for longer workpieces

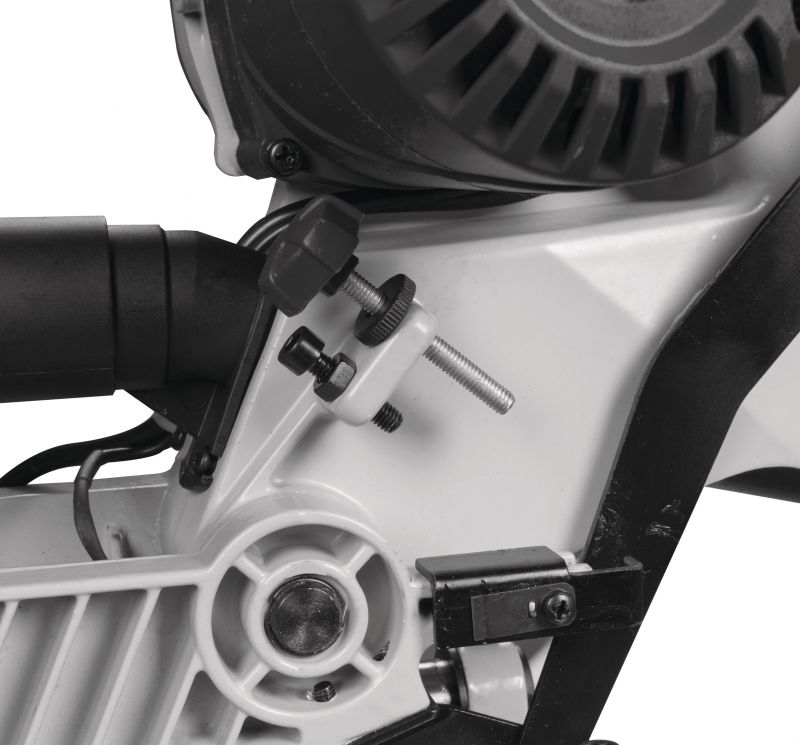

• Double adjustable cross-cut depth limiter
• Pull function for extended cutting range
• Standard with hold-down clamp for safe workpiece locking
• Extraction connection for dust collection bag or connection of an external extraction system

• Saw band speed 4500min¯¹
• Saw blade diameter 210mm
• Sound pressure level 93.6dB(A)
• Sound power level 106.6dB(A)
• Vibration emission value 4.58m/s²
• Extraction duct outside nominal width 32.5mm
• Max. bevel angle range left 45°
• Max. mitre left 45°
• Max. mitre right 45°

Dimensions and weights

• Length (product) approx. 650mm
• Width/depth (product) approx. 450mm
• Height (product) approx. 430mm
• Net weight approx. 10.5kg

Electrical Data

• Supply voltage 230V
• Mains frequency 50Hz
• Drive motor output 1,5kW

Cutting capacity

• Cutting capacity at 0° inclination / 0° mitre 220 x 70mm
• Cutting capacity at -45° inclination / 0° mitre 155 x 70mm
• Cutting capacity at 0° inclination / -45° mitre 220 x 35mm
• Cutting capacity at -45° inclination / -45° mitre 155 x 35mm
