Sturmer Holzstar KGZ 305 E I Sliding Crosscut Mitre Saw 2000W 230v
Product Code: STU/5702306
Brand: Stuermer
Low Stock - Contact Us For Availability
£287.99 Inc. VAT
£239.99 Exc. VAT
✗ COLLECTION
DELIVERY
Please call to check stock availability for larger quantities
Sturmer Holzstar

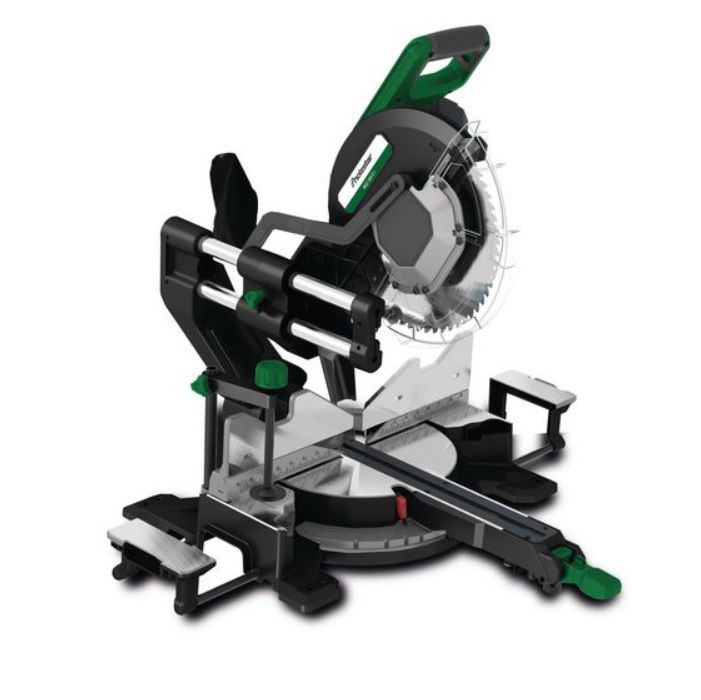

KGZ 305 E I Sliding Crosscut Mitre Saw 2000W 230v
ref: 5702306
Key Features
- KGZ 305 E I 305mm Double bevel sliding crosscut mitre saw + laser 230v
- With infinitely adjustable double mitre and double tilt as standard
- Base plate and turntable made of die-cast aluminum, compact, robust and easy to transport

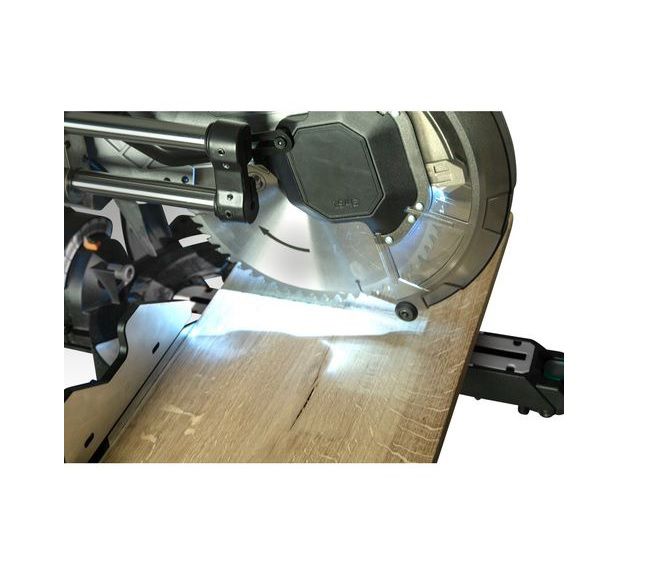

- LED projection on the workpiece for precise control of the cutting position
- Adjustable stop rails on the right and left
- Laterally extendable support aids for longer workpieces
- Double adjustable cross-cut depth limiter

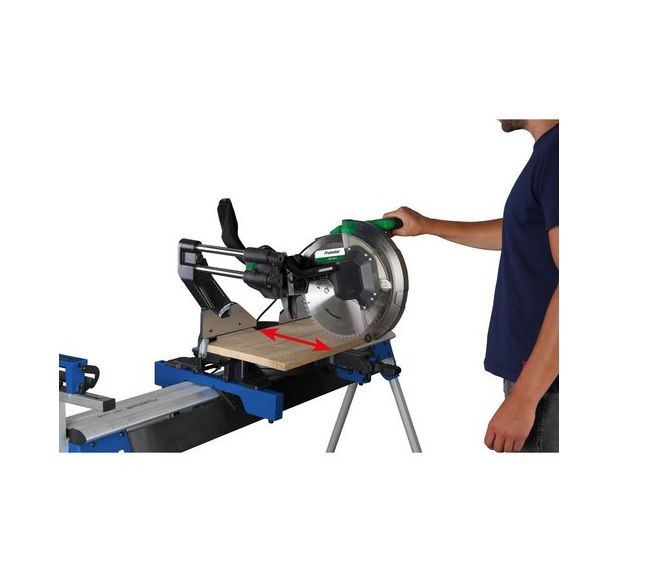

- Pull function for extended cutting range

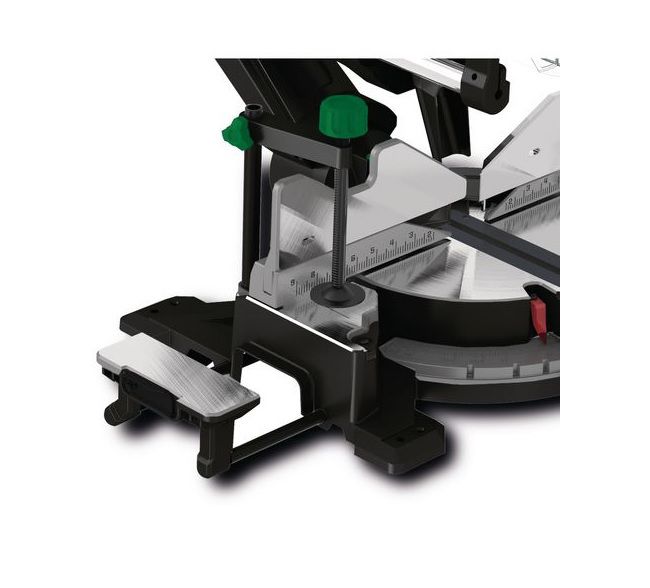

- With screw clamp and clamping device for secure workpiece locking as standard
- Suction nozzle for dust collection bag or connection of an external suction unit
Technical details
- Saw blade diameter: 305 mm
- Max. bevel angle range left: 45 °
- Max. bevel angle range right: 45 °
Cutting capacity
- 0° inclination / 0° mitre: 340 x 105 mm
- -45° inclination / 0° mitre: 235 x 105 mm
- +45° inclination / 0° mitre: 340 x 60 mm
- 0° inclination / -45° mitre: 340 x 25 mm
- -45° inclination / -45° mitre: 340 x 60 mm
- +45° inclination / +45° mitre: 235 x 25 mm
Dimensions and weights
- Length approx.: 800 mm
- Width/depth approx.: 710 mm
- Height approx.: 640 mm
- Weight approx.: 20.3 kg
Electrical Data
- Main motor: 2.0 kW
- Supply voltage: 230 V
- Mains frequency: 50 Hz
