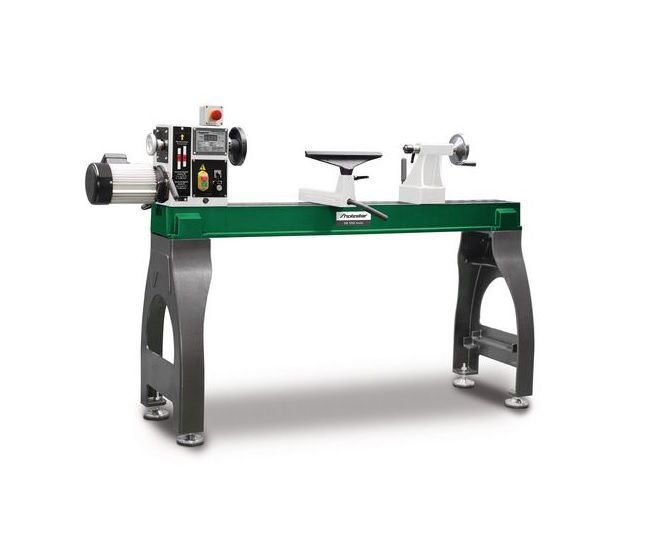

Sturmer Holzstar DB 1202 Vario Woodturning Lathe 1185mm x 460mm 1500W 230v
Product Code: STU/5921202
Brand: Stuermer
£2,699.99 Inc. VAT
£2,249.99 Exc. VAT
Sturmer Holzstar
DB 1202 Vario Woodturning Lathe 1185mm x 460mm 1500W 230v
ref: 5921202
Key Features
- DB 1202 VARIO Woodturning lathe + 1185x460mm capacity + 2 x variable speed range changes 0-3200rpm + R&L rotation + 1500W motor 230v
- The torsion-resistant cast iron machine bed ensures smooth running and precision
- Tailstock and headstock are also made of sturdy gray cast iron
- Drive can be moved freely on the machine bed
- Tailstock with quick release lever and handwheel
- Tailstock standard with revolving center point
- Tailstock quill with bore for machining long workpieces
- The tailstock is easily and quickly clamped on the machine bed thanks to single lever clamping

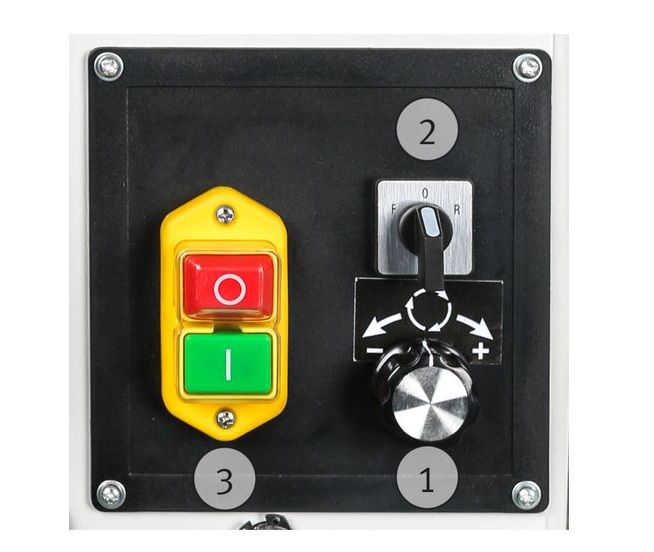

- Variable speed regulation from 0 - 3,200 rpm in two speed levels: 0 - 1,200 and 0 - 3,200 rpm
- A digital display shows the currently selected speed
- Right-left rotation as standard
Items included
- Revolving center of gravity
- Digital display
- Cast iron machine bed
- Tailstock with quick release lever and handwheel
Technical details
- Max. turning diameter: 460 mm
- Speeds: 0 – 3200 min¯¹
- Speed stages: 2
- Speed control: Electronically variable
- Travel of tailstock sleeve: 110 mm
- VPE: 1
Dimensions and weights
- Length approx.: 2060 mm
- Width/depth approx.: 500 mm
- Height approx.; 1200 mm
- Weight approx.: 189 kg
