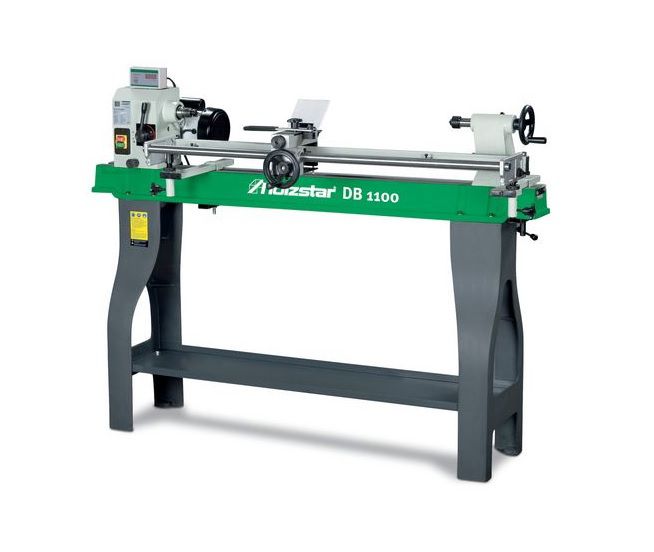

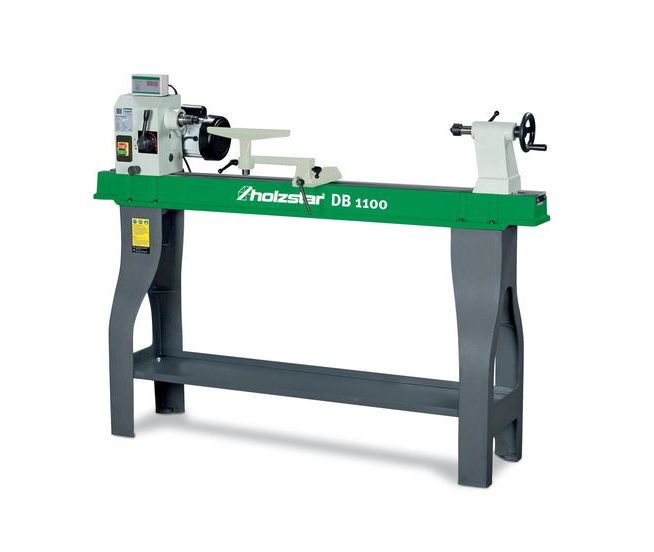

Sturmer Holzstar DB 1100 Woodturning Lathe 1100mm x 358mm 750W 230v
Product Code: STU/5921100
Brand: Stuermer
£1,079.99 Inc. VAT
£899.99 Exc. VAT
Sturmer Holzstar
DB 1100 Woodturning Lathe 1100mm x 358mm 750W 230v
ref: 5921100
Key Features
- DB 1100 Woodturning lathe + 1100x358mm capacity + variable speed + digital display + rotating headstock + 750W motor 230v
- Torsionally rigid gray cast iron machine bed for smooth running and precision

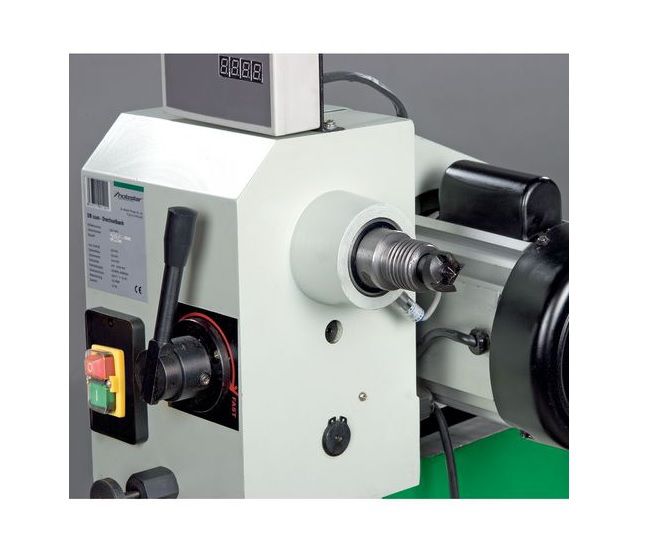

- Tailstock and headstock also made of sturdy gray cast iron
- Wide, easily adjustable turning steel support
- Tailstock with quick release lever and handwheel
- Tailstock (stroke 50 mm) as standard with revolving center point
- Tailstock quill with bore for machining long workpieces

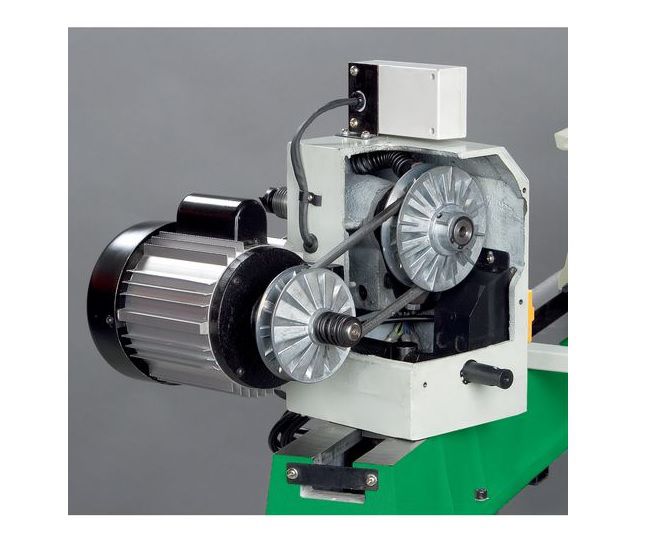

- Variable speed regulation from 500 - 2000 min-1 with digital speed display

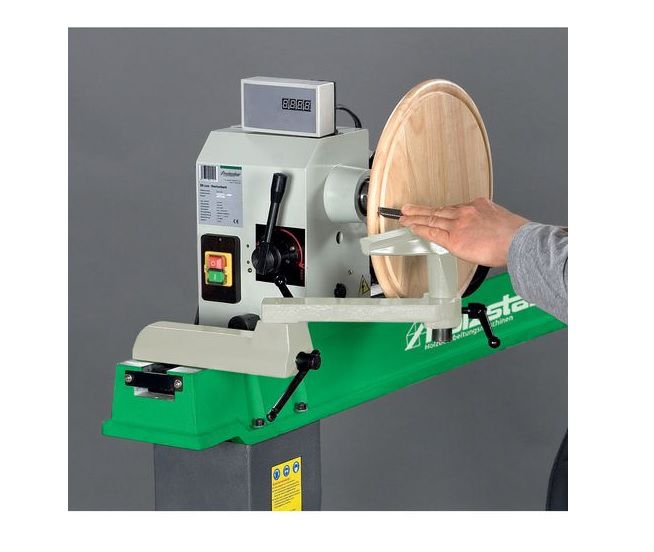

- The headstock can be rotated by 180°
- Ideal for turning large diameter
Items included
- Face plate Ø 15 cm
- Revolving tailstock tip
- substructure
- Four zag face driver
Technical details
- Max. turning diameter: 358 mm
- Speeds: 500 - 2000 min¯¹
- Speed stages: 10
- Speed control: Mechanical variable
- Travel of tailstock sleeve: 50 mm
- VPE: 1
Dimensions and weights
- Length approx.: 1620 mm
- Width/depth approx.: 340 mm
- Height approx.: 1215 mm
- Weight approx.: 111 kg
Electrical Data
- Supply voltage: 230 V
- Mains frequency; 50 Hz
