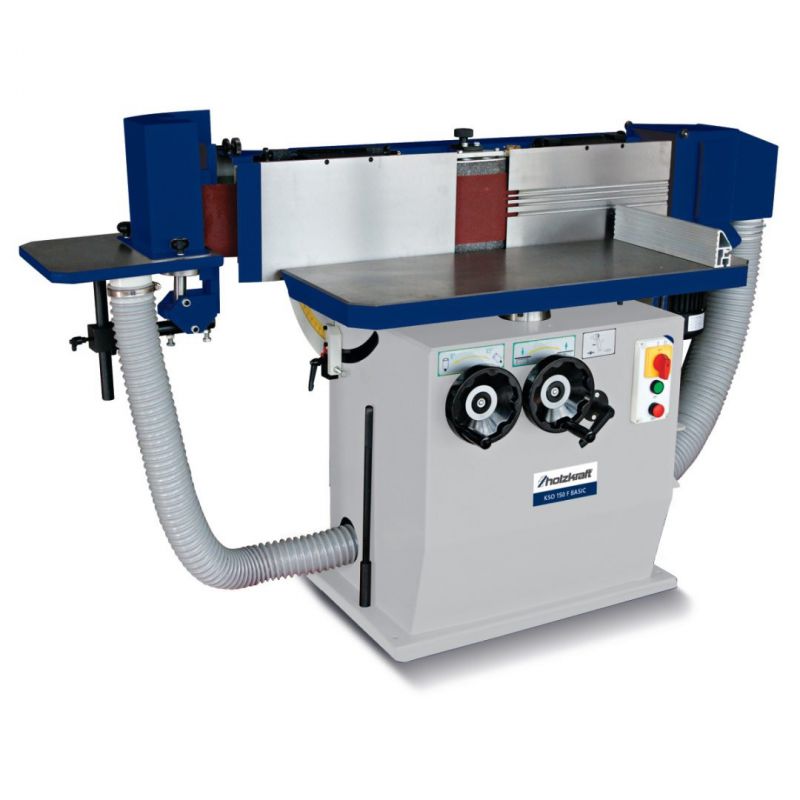

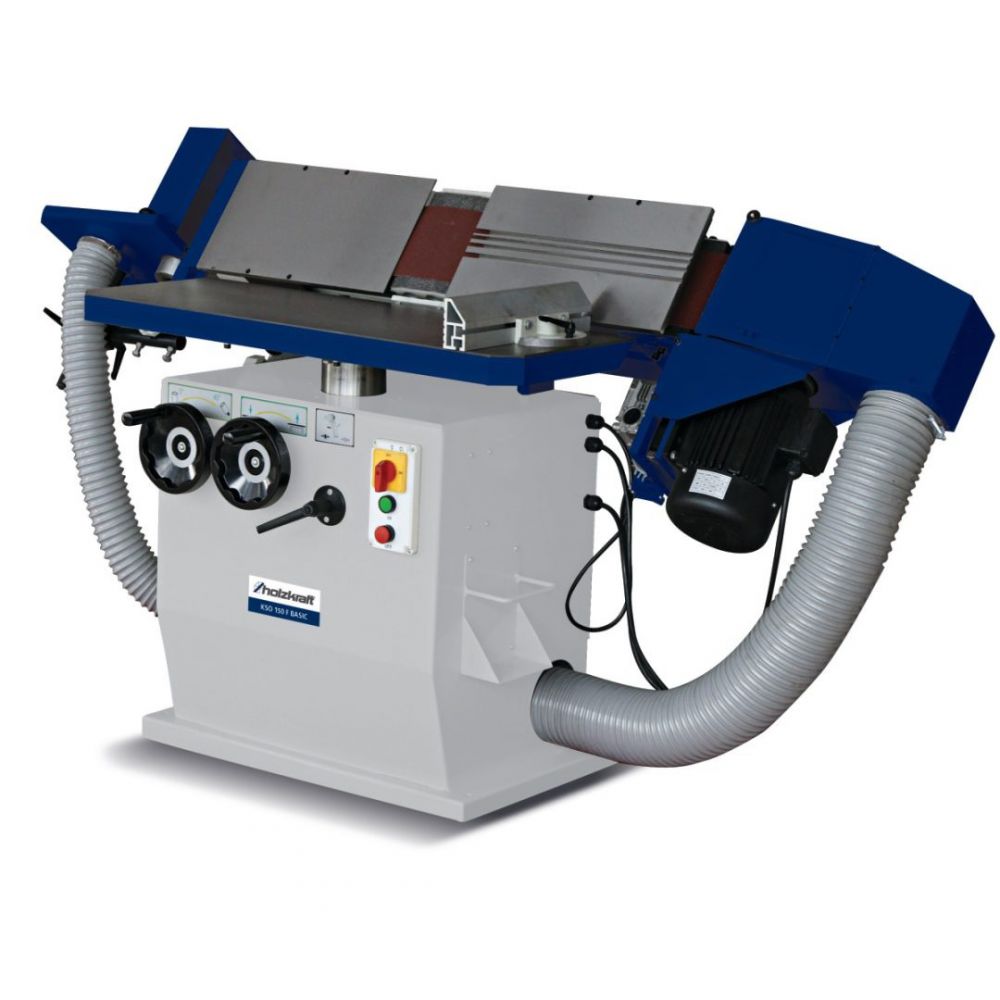

Sturmer Holzkraft KSO 150 F BASIC 150mm Oscillating Tilting Belt and Spindle Edge Sander 415v

Sturmer Holzkraft

KSO 150 F BASIC 150mm Oscillating Tilting Belt and Spindle Edge Sander 415v

ref: 5363150

• KSO 150 F BASIC 150mm Osciallating + tilting belt & spindle sander sander + integral twin dust extraction system + 3000W 415v
• Heavy machine stand guarantees high torsional rigidity and vibration-free working
• Better sanding results due to belt oscillation via separate geared motor
• Optionally selectable oscillation
• Fine edge veneer edge sanding device standard
• Grooved ramp for veneer overhang
• Quick conversion from veneer to solid wood sanding
• Height adjustable sanding table to utilize the entire sanding belt width
• Height adjustment of the sanding table and sanding unit swiveling via handwheels
• Height-adjustable additional table with suction for sanding of radii
• Optimal chip removal by suction at the aggregate and at the cross table
• Automatic compensation of belt length differences by spring-loaded belt tension

Dimensions and weights

• Length approx.: 1900 mm
• Width/depth approx.: 810 mm
• Height approx.: 1230 mm
• Weight approx.: 290 kg

Drive output

• Oscillation motor: 0.25 kW

Electrical Data

• Absorbed power drive motor: 3 kW
• Supply voltage: 400 V
• Mains frequency: 50 Hz

Extraction port

• Extraction port diameter: 120 mm

Sanding machine

• Sanding belt length: 3000 mm
• Sanding belt width: 150 mm
• Circumferential belt speed(s): 20 m/s
• Sanding surface length: 1050 mm
• Sanding surface width: 220 mm
• Pivoting: 0 – 45 °
• Oscillation stroke: 20 mm

Work top(s)

• Work table length: 960 mm
• Work table width: 352 mm
• Work table height adjustment: 210 mm
• Min. cross table height: 730 mm
