Sturmer Aircraft MOBILBOY SILENCE 320/90 OF E Piston Compressor 10 Bar 2200W 230v

Sturmer Aircraft

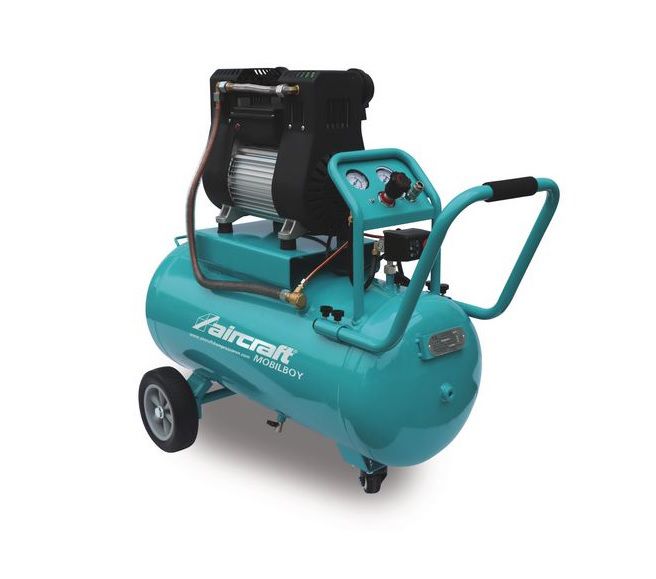

MOBILBOY SILENCE 320/90 OF E Piston Compressor 10 Bar 2200W 230v

ref: 2002340

• MOBILBOY SILENCE 320/90 OF E Twin cylinder reciprocating mobile oil free piston compressor + quiet operation + powder coated air tank + 10 Bar + 90 Ltr + 2200W motor 230v
• Very smooth operation and therefore very quiet
• Oil-free piston compressor: No oil change necessary and no oil in the condensate - best working quality and at the same time long service life of the pneumatic tools
• Compressed air reducer for stepless adjustment of the desired working pressure
• High-quality CONDOR pressure switch
• Electric motor equipped with motor protection switch
• Fully automatic on/off operation
• One pressure gauge each for displaying the tank and working pressure
• Compressed air tank powder-coated

• Pressure regulation: Pressure regulator
• Automatic pressure switch: CONDOR
• Drive transmission: Direct-coupled
• Material compressed air line: Flexible armored hose line, copper line
• Compressed air outlet: Two one-hand quick couplings
• Pressure vessel: Powder coated
• Compressor base: Two wheels with solid rubber tires, one swivel castor with parking brake
• Connection cable: 1.8 m
• Connector: CEE 7/4

Compressed air tank

• Maximum pressure: 10 bar
• Pressure vessel capacity: 90 l
• Tank vertical / horizontal: Horizontal

Compressor

• Oil-free / oil-lubricated: Oil free
• Suction capacity approx.: 320 l/min
• Filling capacity approx.: 230 l/min
• Explanation filling capacity: at 6 bar working pressure
• Number of cylinders: 2
• Number of compressor stages: 1
• Piston stroke: 30 mm
• Diameter of piston: 69.7 mm

Dimensions and weights

• Length approx.: 980 mm
• Width/depth approx.: 470 mm
• Height approx.: 950 mm
• Weight approx.: 68.4 kg

Electrical Data

• Delivery power: 1.55 kW
• Supply voltage: 230 V
• Mains frequency: 50 Hz
