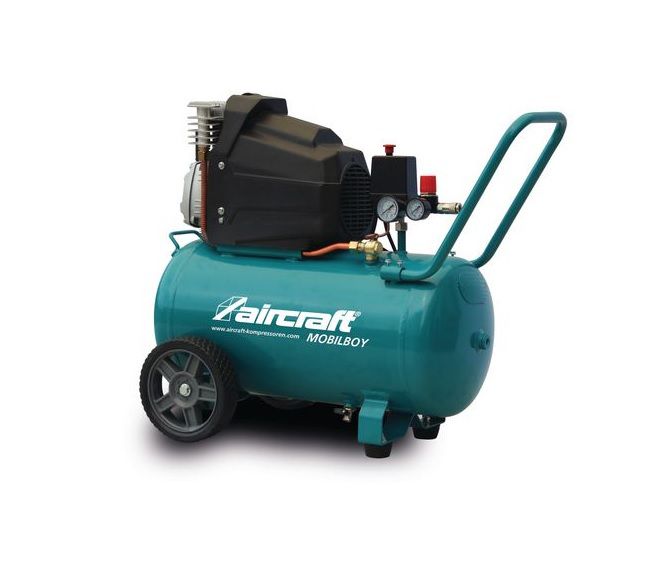

Sturmer Aircraft MOBILBOY 301/50 E Piston Compressor 10 Bar 2000W 230v

Sturmer Aircraft

MOBILBOY 301/50 E Piston Compressor 10 Bar 2000W 230v

ref: 2003731

• MOBILBOY 301/50 E Mobile oil lubricated compressor + 10 Bar + 50 Ltr + powder coated compressed air tank + 2000W motor 230v
• Units with high-performance oil lubrication system, efficient lubrication with optimum sealing at the same time
• Pressure regulator for continuously variable setting of the desired working pressure
• Compressed air outlet via one single-handed quick-action coupling
• Fully automatic on-off operation via pressure switch
• One pressure gauge each for displaying the tank and working pressure
• Electric motor equipped with protection switch
• Powder coated compressed air tank
• Two plastic wheels at rear

• Pressure regulation: Pressure regulator
• Automatic pressure switch: ✔
• Drive transmission: Direct-coupled
• Material compressed air line: Copper
• Compressed air outlet: Two one hand quick coupling
• Condensate drain: Ball valve
• Pressure vessel: Powder coated
• Compressor base: Two wheels Wheels with solid rubber tires, two rubber bumpers
• Connection cable: 1.5 m
• Connector: CEE 7/4

Compressed air tank

• Maximum pressure: 10 bar
• Pressure vessel capacity: 50 l
• Tank vertical / horizontal: Horizontal
• Tank surface: Powder coated

Compressor

• Compressor system: HOS
• Oil-free / oil-lubricated: Oil lubricated
• Suction capacity approx.: 300 l/min
• Filling capacity approx.: 145 l/min
• Explanation filling capacity: at 6 bar working pressure
• Number of cylinders: 1
• Number of compressor stages: 1
• Piston stroke: 42 mm
• Diameter of piston: 55 mm

Dimensions and weights

• Length approx.: 800 mm
• Width/depth approx.: 360 mm
• Height approx.: 750 mm
• Weight approx.: 35 kg

Electrical Data

• Delivery power: 1.9 kW
• Supply voltage: 230 V
• Mains frequency: 50 Hz
