Sturmer Aircraft MOBILBOY 261/24 E Piston Compressor 10 Bar 1800W 230v

Sturmer Aircraft

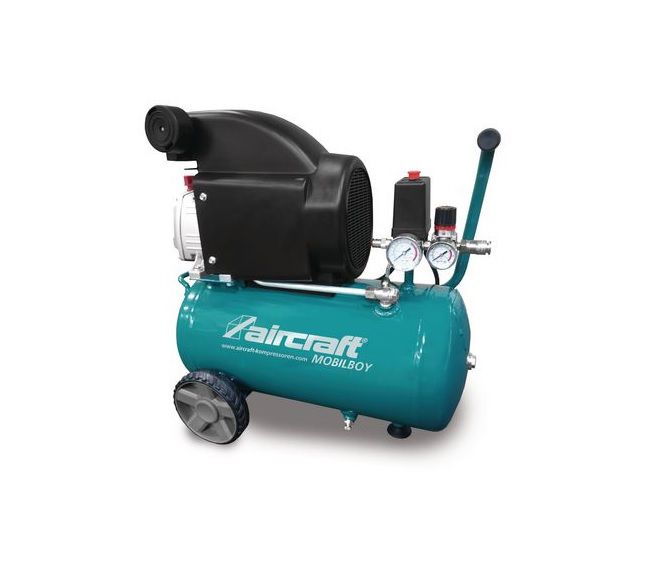

MOBILBOY 261/24 E Piston Compressor 10 Bar 1800W 230v

ref: 2003725

• MOBILBOY 261/24 E Mobile oil lubricated compressor + 10 Bar + 24 Ltr + powder coated compred air tank + 1800W motor 230v
• Units with high-performance oil lubrication system, efficient lubrication with optimum sealing at the same time
• Pressure regulator for continuously variable setting of the desired working pressure
• Compressed air outlet via one single-handed quick-action coupling
• Fully automatic on-off operation via pressure switch
• One pressure gauge each for displaying the tank and working pressure
• Electric motor equipped with protection switch
• Powder coated compressed air tank
• Two plastic wheels at rear

• Pressure regulation: Pressure regulator
• Automatic pressure switch: ✔
• Drive transmission: Direct-coupled
• Material compressed air line: Aluminium
• Compressed air outlet: A one-hand quick coupling
• Pressure vessel: Powder coated
• Compressor base: Two wheels, one rubber buffer
• Connection cable: 1.8 m
• Connector: CEE 7/4

Compressed air tank

• Maximum pressure: 10 bar
• Pressure vessel capacity: 24 l
• Tank vertical / horizontal: Horizontal
• Tank surface: Powder coated

Compressor

• Compressor system: HOS
• Oil-free / oil-lubricated: Oil lubricated
• Suction capacity approx.: 260 l/min
• Filling capacity approx.: 120 l/min
• Explanation filling capacity: at 6 bar working pressure
• Number of cylinders: 1
• Number of compressor stages: 1
• Piston stroke: 38 mm
• Diameter of piston: 55 mm

Dimensions and weights

• Length approx.: 565 mm
• Width/depth approx.: 315 mm
• Height approx.: 570 mm
• Weight approx.: 24 kg

Electrical Data

• Delivery power: 1.55 kW
• Supply voltage: 230 V
• Mains frequency: 50 Hz
