Sturmer Aircraft MOBILBOY 185 OF E Piston Compressor 10 Bar 1100W 230v

Sturmer Aircraft

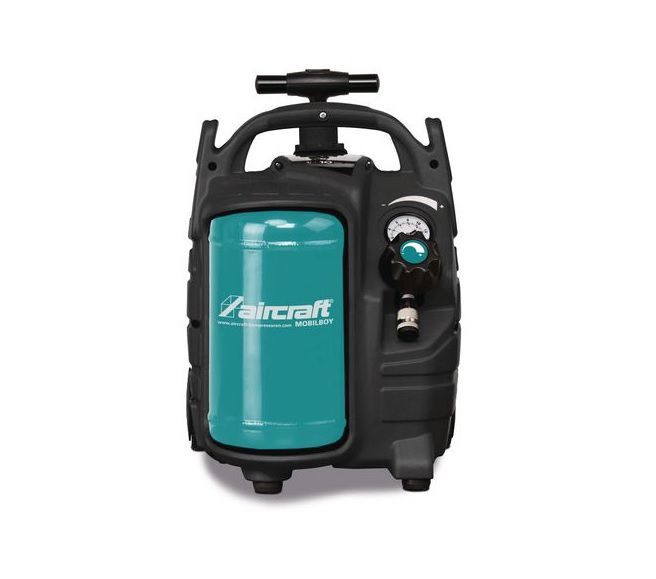

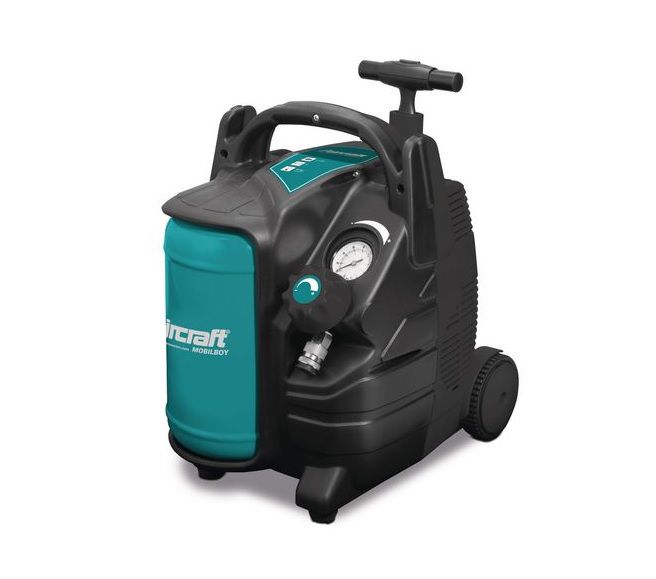

MOBILBOY 185 OF E Piston Compressor 10 Bar 1100W 230v

ref: 2001240

• MOBILBOY 185 OF E Portable oil free compressor + 10 bar + 5 ltr + wheeks & telescopic handle for easy transport + 1100W motor 230v
• Oil-free, no oil change required and no oil in condensate
• Compact mobile and portable model

Oil-free compressor

• No oil change necessary
• For best quality of work and long service life of compressed air tools

User-friendly design

• Compact model, therefore portable and portable

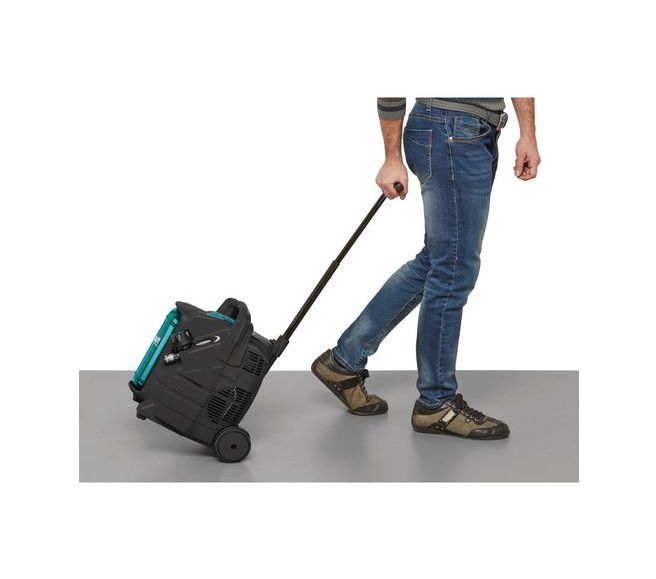

• Sturdy plastic wheels and extendable handle for easy transport
• Practical storage compartment integrated in the housing

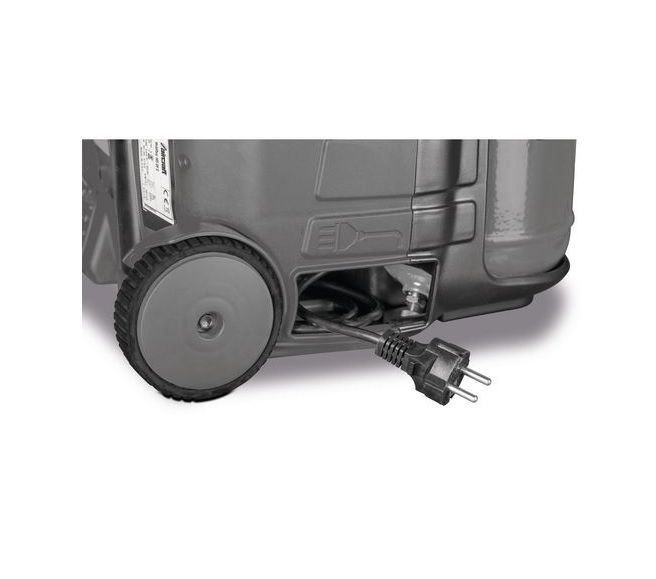

• Storage compartment for the power line

Complete equipment

• A manometer for the working pressure
• A one-hand quick release
• Pressure regulator for stepless fixation of the working pressure
• Condensate drain valve on the compressed air tank

• Pressure regulation: Pressure regulator
• Automatic pressure switch: ✔
• Drive transmission: V-belt
• Compressed air outlet: A one-hand quick coupling
• Pressure vessel: Powder coated
• Compressor base: Two wheels, two rubber buffers

Compressed air tank

• Maximum pressure: 10 bar
• Pressure vessel capacity: 5 l

Compressor

• Compressor system: WDS
• Suction capacity approx.: 180 l/min
• Filling capacity approx.: 90 l/min
• Explanation filling capacity: at 6 bar working pressure
• Number of cylinders: 1
• Number of compressor stages: 1

Dimensions and weights

• Length approx.: 320 mm
• Width/depth approx.: 380 mm
• Height approx.: 467 mm
• Weight approx.: 12 kg

Electrical Data

• Delivery power: 1,1 kW
• Supply voltage: 230 V
• Mains frequency: 50 Hz
