Sturmer Aircraft HANDY SILENCE 221 OF E Piston Compressor 8 Bar 1000W 230v

Sturmer Aircraft

HANDY SILENCE 221 OF E Piston Compressor 8 Bar 1000W 230v

ref: 2001221

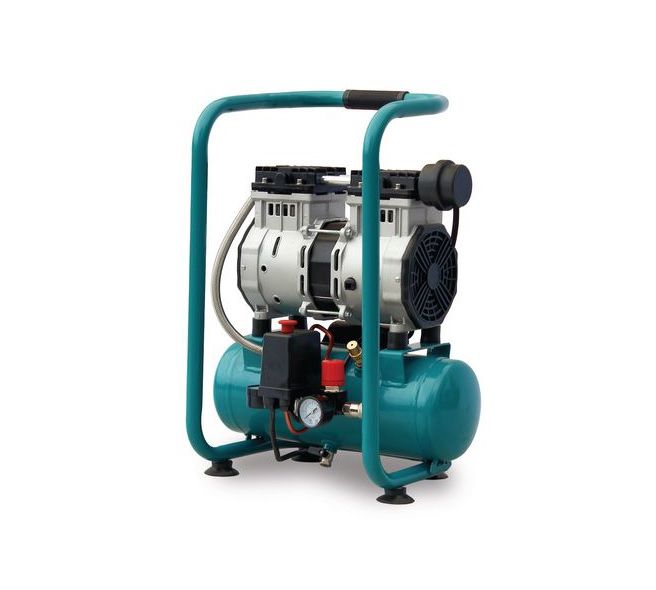

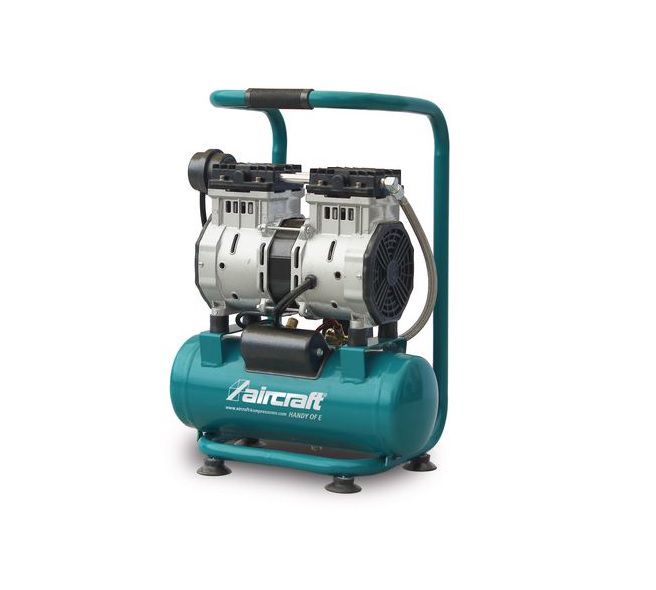

• HANDY SILENCE 221 OF E Twin cylinder portable oil free piston compressor + quiet operation + powder coated cylinder + 6 Ltr + 8 Bar + 1000W motor 230v

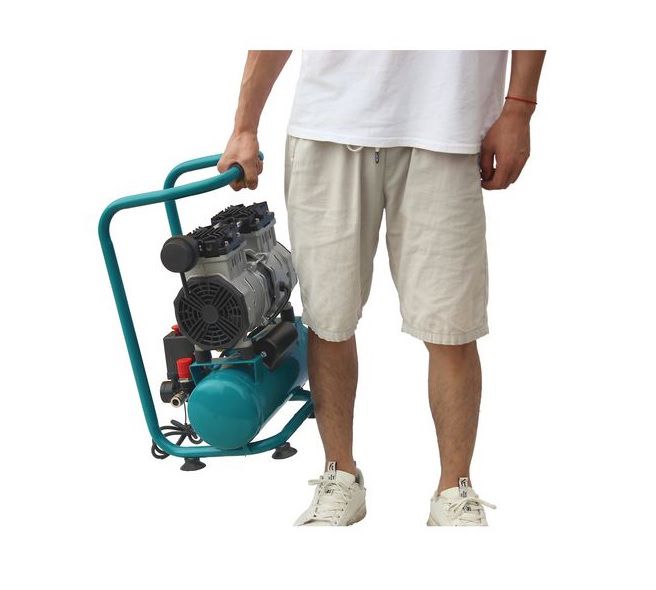

• Small portable compressor with compact design
• Very smooth operation and therefore very quiet
• Oil-free piston compressor: No oil change necessary and no oil in the condensate for best working quality
• Compressed air reducer for stepless adjustment of the desired working pressure
• High-quality pressure switch
• Electric motor equipped with motor protection switch
• Fully automatic on/off operation

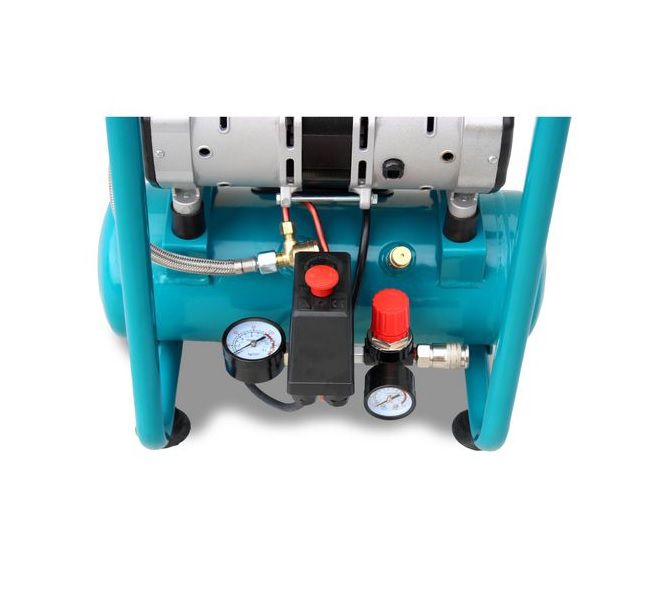

• One pressure gauge each for displaying the tank and working pressure
• Powder-coated compressed air tank
• Vibration-damping suction cups

• Pressure regulation: Pressure regulator
• Automatic pressure switch: ✔
• Drive transmission: Direct-coupled
• Material compressed air line: Aluminium
• Compressed air outlet: A one-hand quick coupling
• Pressure vessel: Powder coated
• Compressor base: Four suction cups
• Connection cable: 1.5 m
• Connector: CEE 7/4

Compressed air tank

• Maximum pressure: 8 bar
• Pressure vessel capacity: 6 l
• Tank vertical / horizontal: Horizontal
• Tank surface: Powder coated

Compressor

• Compressor system: WDS
• Oil-free / oil-lubricated: Oil free
• Suction capacity approx.: 200 l/min
• Filling capacity approx.: 90 l/min
• Explanation filling capacity: at 6 bar working pressure
• Number of cylinders: 2
• Number of compressor stages: 1
• Piston stroke: 11.2 mm
• Diameter of piston: 63.7 mm

Dimensions and weights

• Length approx.: 370 mm
• Width/depth approx.: 270 mm
• Height approx.: 530 mm
• Weight approx.: 16 kg

Electrical Data

• Delivery power: 1.0 kW
• Drive motor output: 0.75 kW
• Supply voltage: 230 V
• Mains frequency: 50 Hz
