Sturmer Aircraft AIRSTAR 401/50 Piston Compressor 10 Bar 2200W 230v

X
Product Code: STU/2009410
Brand: Stuermer
Available to Order Please Contact Us
or Call 01726 828 388
£1,109.99 Inc. VAT
£924.99 Exc. VAT
Stuermer
Special

Sturmer Aircraft

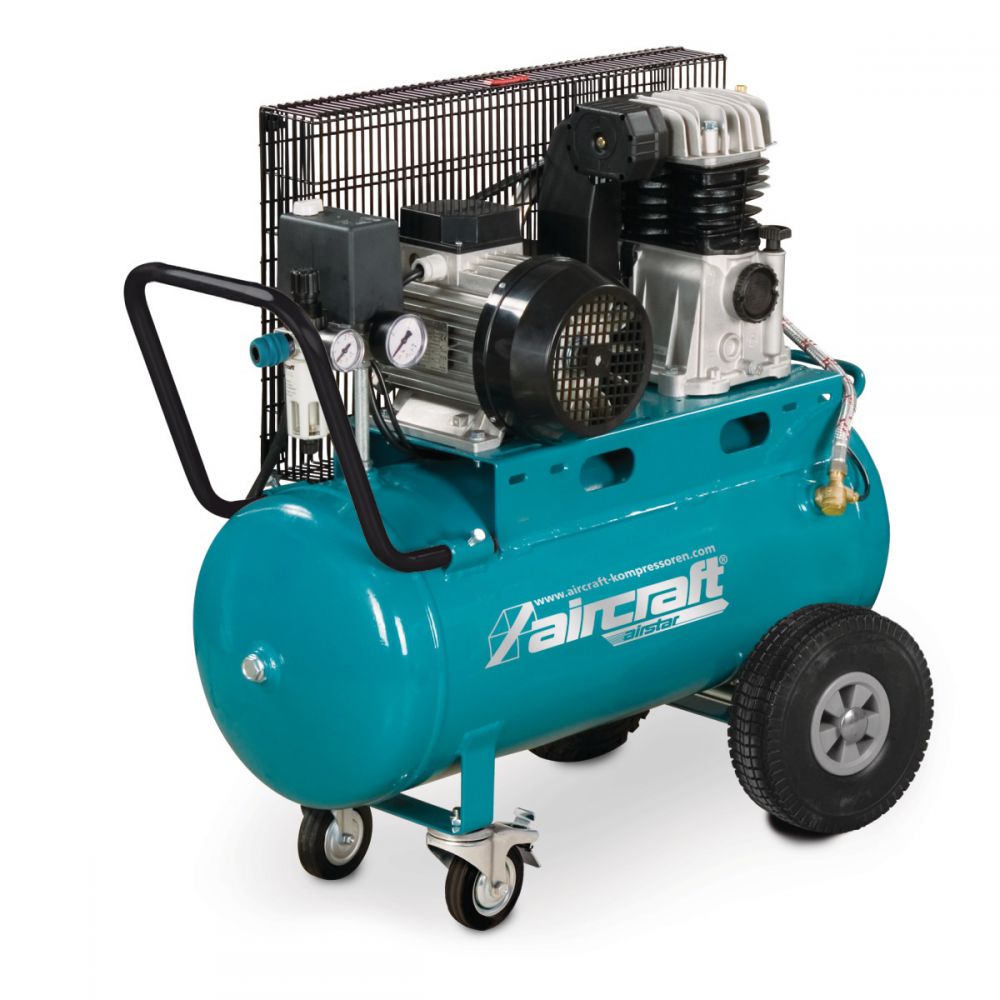

AIRSTAR 401/50 Piston Compressor 10 Bar 2200W 230v

ref: 2009410



Key Features

  • Solid, professionally equipped craftsman compressors with proven belt drive and two-cylinder high-performance unit made of gray cast iron.
  • Two-cylinder high-performance units made of gray cast iron for a long service life
  • Large fan wheel and a cooling air baffle on the cylinder for optimal cooling of the compressor
  • Quality electric motor with high starting torque
  • Electric motor equipped with motor protection switch
  • Aftercooler with cooling fins ensures a low tank inlet temperature and thus less moisture in the compressed air
  • Sturdy metal belt guard
  • Start-up capacitor and start-up relief valve ensure easy start-up on 230 volt models
  • Air receiver equipped with safety valve, receiver pressure gauge and condensate drain valve
  • Including all safety devices
  • Completely ready for connection
  • Filter pressure regulator with one pressure gauge for regulated compressed air cleaned of condensate, dirt and oil, second pressure gauge for vessel pressure
  • Ten-year warranty against rust-through on powder-coated compressed air reservoir
  • Includes high quality composite safety coupling and high quality CONDOR pressure switch
  • Flexible armored hose line with heat protection for long service life without vibration breakage
  • Ergonomic handle, rubber handle and transport handle on the compressed air tank for comfortable transport
  • Stable steering chassis with parking brake in combination with large, puncture-proof wheels for comfortable transport
  • AIRSTAR 401/50 F Twin cylinder reciprocating oil lubricated compressor + 10 Bar + 50 Ltr + stable steering chassis w parking brake + 2200W motor 230v Made in Austria + 10 YEAR WARRANTY



Technical details

Compressed air tank

  • Maximum pressure: 10 bar
  • Pressure vessel capacity: 50 l

Compressor

  • Compressor system: HOS
  • Suction capacity approx.: 365 l/min
  • Filling capacity approx.: 266 l/min
  • Explanation filling capacity: at 6 bar working pressure
  • Number of cylinders: 2
  • Number of compressor stages: 1

Dimensions and weights

  • Length approx.: 860 mm
  • Width/depth approx.: 440 mm
  • Height approx.: 800 mm
  • Weight approx.: 57.5 kg

Electrical Data

  • Delivery power: 2.2 kW
  • Supply voltage: 230 V
  • Mains frequency: 50 Hz

Noise emission

  • Sound power level Lw: 96 dB(A)
  • Explanation sound power level Lw: Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG)
  • VPE: 1
