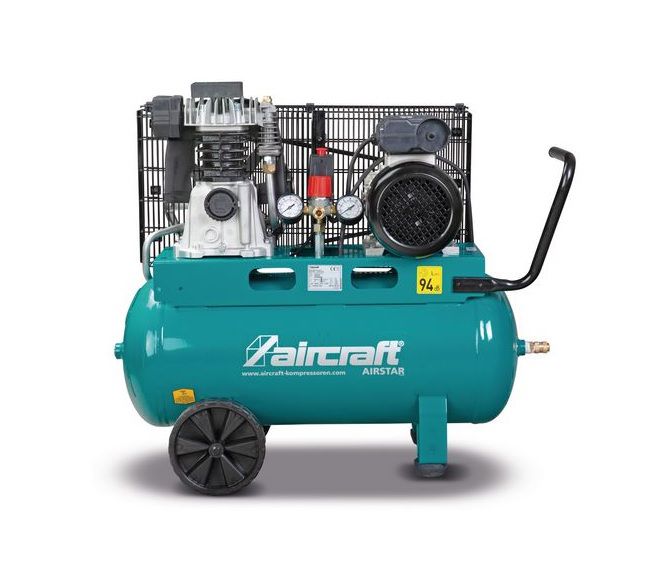

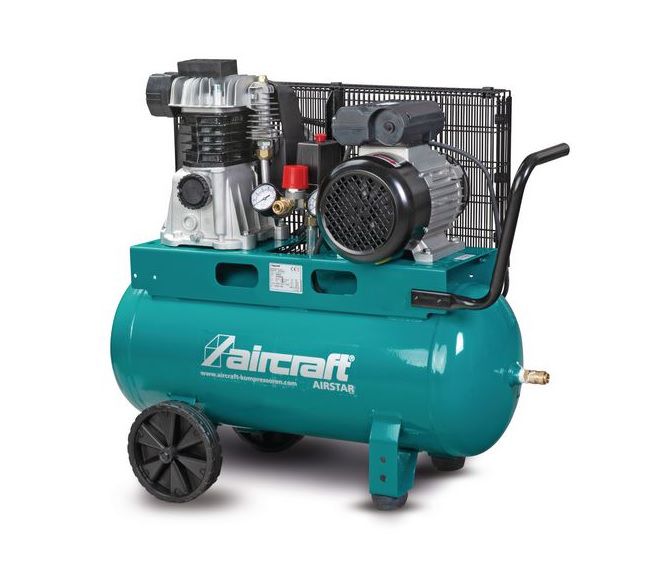

Sturmer Aircraft AIRSTAR 401/50 E Piston Compressor with Belt Drive 10 Bar 2200W 230v

Sturmer Aircraft

AIRSTAR 401/50 E Piston Compressor with Belt Drive 10 Bar 2200W 230v

ref: 2009413

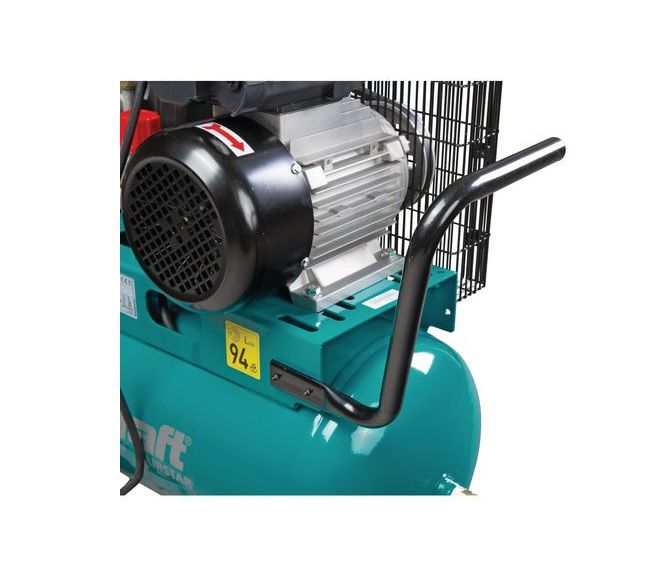

• AIRSTAR 401/50 E Twin cylinder reciprocating oil lubricated compressor + 10 Bar + 50 Ltr + large wheel & lifting handle for easy movement + 2200W motor 230v

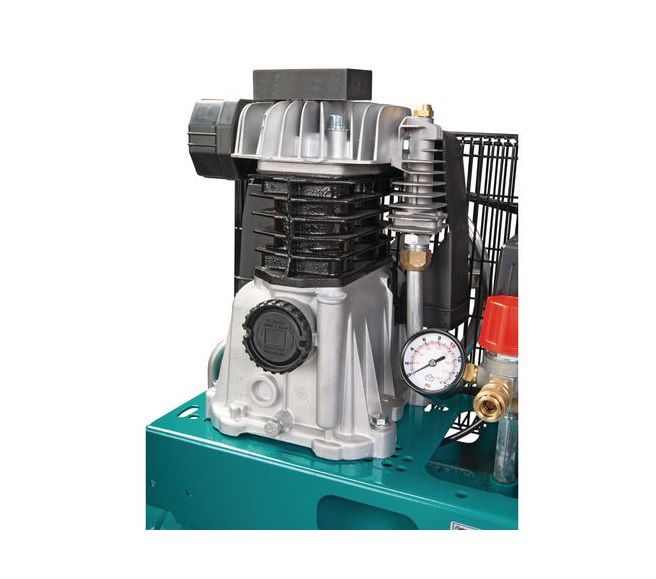

• 2-cylinder high-performance units made of cast iron for a long service life.
• Large fan wheel and a cooling air baffle on the cylinder for optimal cooling of the compressor

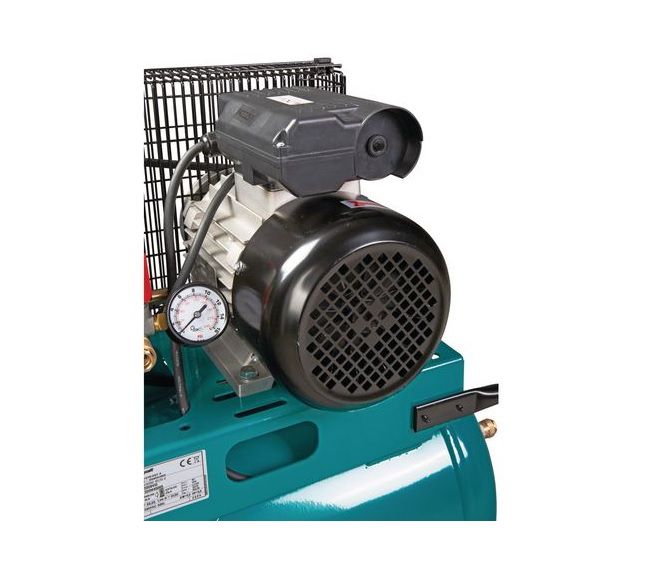

• Quality electric motor with high starting torque
• Electric motor equipped with motor protection switch
• Aftercooler with cooling fins ensures a low tank inlet temperature and thus less moisture in the compressed air

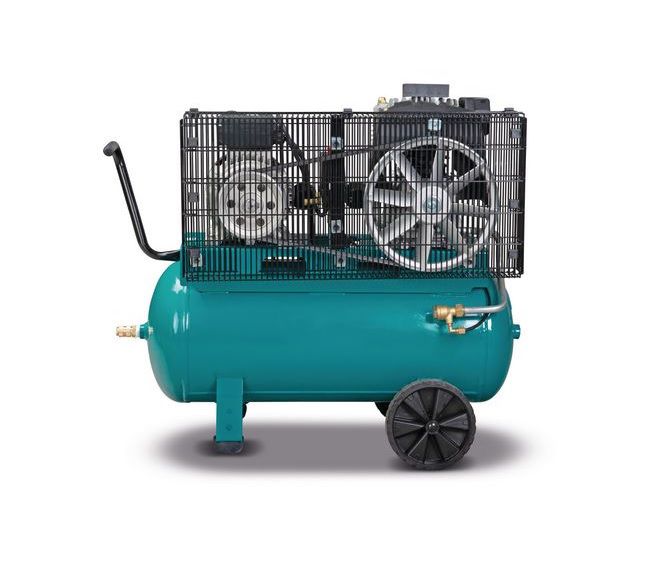

• Sturdy metal belt guard
• Start-up capacitor and start-up relief valve ensure easy start-up on 230 volt models
• 400 volt models with phase inverter as standard for easy reversal of direction of rotation

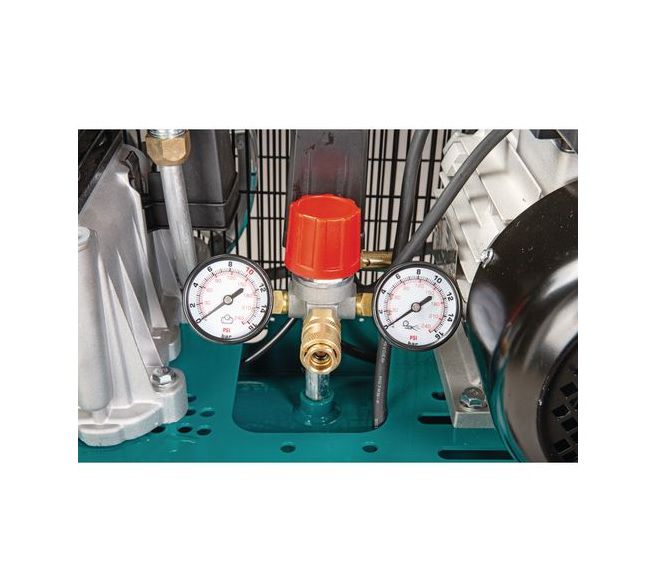

• Air receiver equipped with safety valve, receiver pressure gauge and condensate drain valve
• With all safety devices
• Completely ready for connection

• Pressure regulation: Pressure regulator
• Automatic pressure switch: ✔
• Drive transmission: V-belt
• Material compressed air line: Aluminium
• Compressed air outlet: A one-hand quick coupling
• Condensate drain: Condensate drain valve
• Pressure vessel: Powder coated

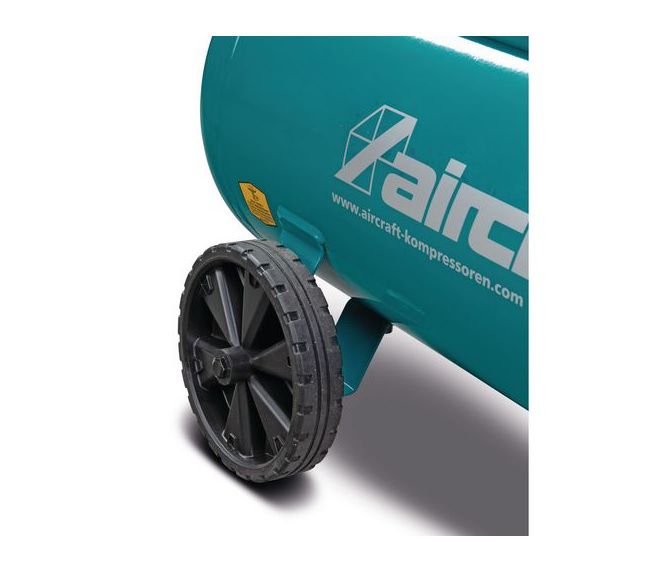

• Compressor base: Two wheels, two rubber buffers

Compressed air tank

• Maximum pressure: 10 bar
• Pressure vessel capacity: 50 l

Compressor

• Compressor system: HOS
• Suction capacity approx.: 365 l/min
• Filling capacity approx.: 270 l/min
• Explanation filling capacity: at 6 bar working pressure
• Number of cylinders: 2
• Number of compressor stages: 1

Dimensions and weights

• Length approx.: 810 mm
• Width/depth approx.: 365 mm
• Height approx.: 710 mm
• Weight approx.: 50.1 kg

Electrical Data

• Delivery power: 2.2 kW
• Supply voltage: 230 V
• Mains frequency: 50 Hz
