Sturmer Aircraft AIRPROFI 403/90 V Piston Compressor with Belt Drive 10 Bar 2200W 415v

Sturmer Aircraft

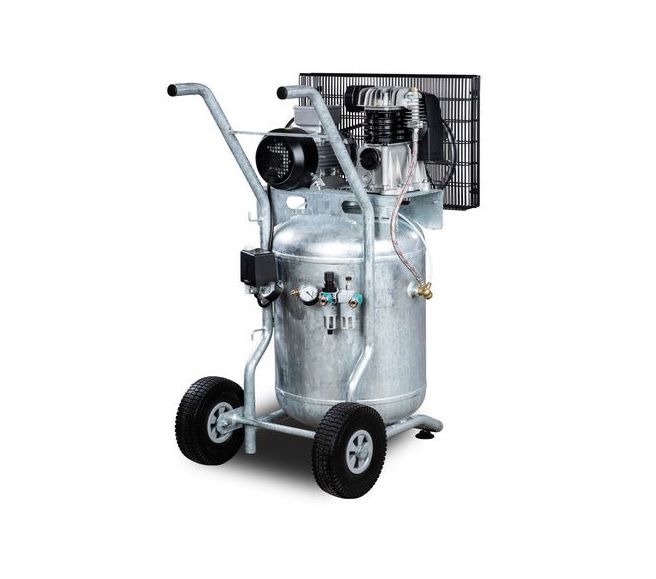

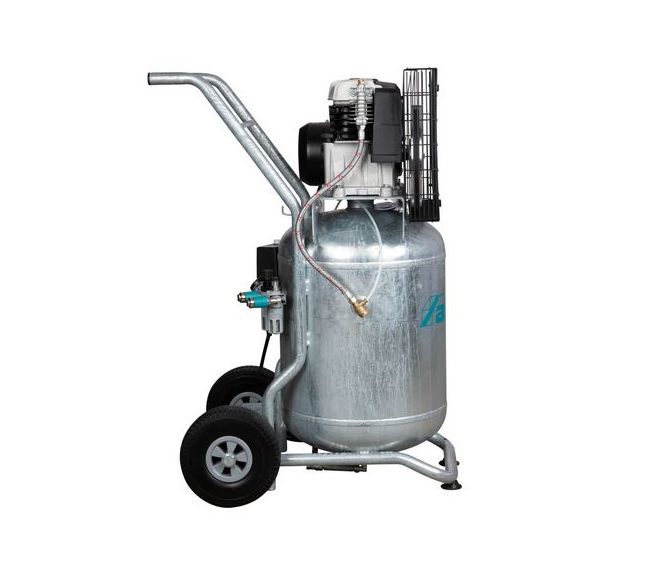

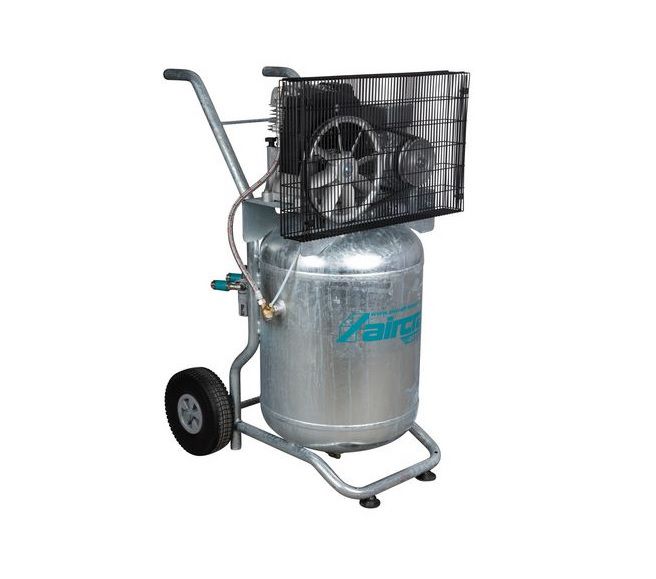

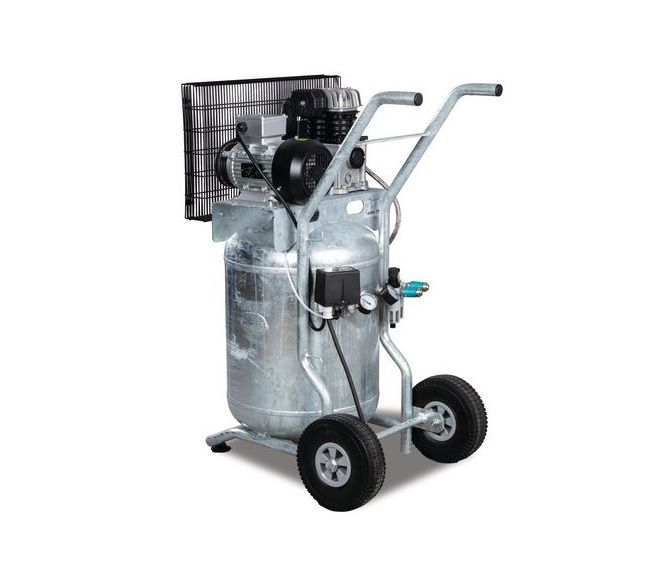

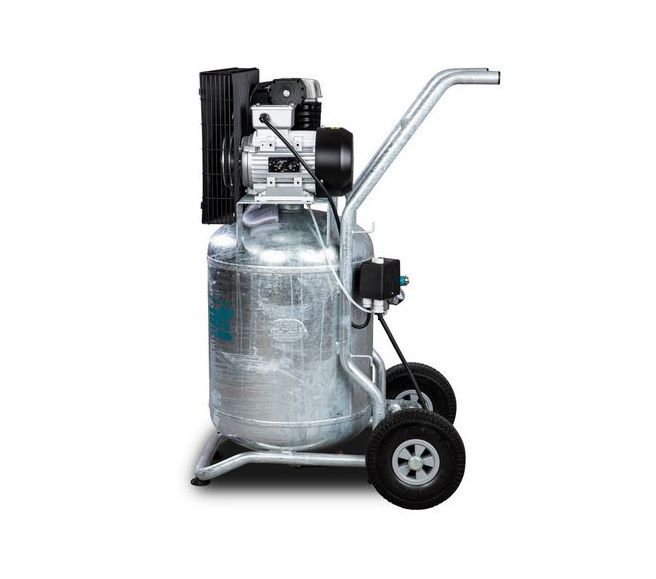

AIRPROFI 403/90 V Piston Compressor with Belt Drive 10 Bar 2200W 415v

ref: 2018434

• AIRPROFI 403/ 90 V Twin cylinder reciprocating oil lubricated compressor + 10 Bar + 90 Ltr 415v Made in Austria + 15 YEAR WARRANTY
• Maximum, robust equipment and best quality at a reasonable price
• Fully automatic on-off operation
• With all safety devices
• Completely ready for connection

Quality electric motor

• Quality electric motor with high starting torque is equipped with a motor protection switch
• Starting capacitor and starting relief valve ensure easy starting
• Phase inverter as standard for easy manual reversal of the direction of rotation

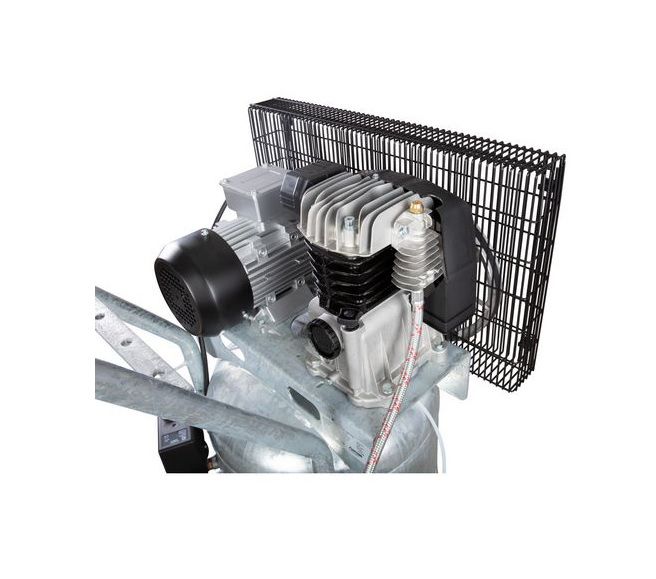

Compressed air compression via high-performance HOS unit

• The start-up relief valve ensures easy and pressureless start-up
• The two-cylinder high-performance unit made of gray cast iron and the low speed warranty particularly quiet and low-vibration running and a long service life
• This ensures an even longer service life due to even less wear and tear
• High-quality compressor with optimum lubrication for a long service life and high reliability
• Equipped with high quality intake filter
• The aftercooler with large cooling fins ensures a low boiler inlet temperature and thus less moisture in the compressed air, which protects the air tools
• Additional intercooler to the aftercooler
• Corrosion-free valve plates for improved heat dissipation and compressor longevity
• The large fan impeller and a cooling air baffle on the cylinder ensure optimum cooling of the compressor
• A sturdy metal belt guard ensures optimum protection of the components and a high level of user safety
• Compressed air supply to the boiler via flexible armored hose line with heat protection prevents vibration breakage

High quality drive belt

• Powerful and economical drive
• The toothed drive belt facilitates start-up, improves running smoothness and power transmission and reduces power consumption by up to 30%.
• Sturdy metal belt guard

Comfort safety coupling - The advantages

• Comfort safety couplings from AIRCRAFT as the first manufacturer to be used in series production
• Two separate locking systems for maximum working safety
• Dangerous whipping of the hose line is prevented

Comfortable and safe to transport and set up

• Ergonomically extended handle for comfortable transport in an almost upright position - strain on the back due to lifting is avoided
• Puncture-proof PU foam wheels and stable steering chassis with parking brake allow easy transport
• The parking brake prevents both turning and rolling movement of the wheels and ensures optimal standing of the compressor
• Practical second transport handle on the boiler, which facilitates carrying the compressor

High quality boiler with durable rust protection

• AIRCRAFT is the first manufacturer to equip the AIRPROFI series compressors with hot-dip galvanized tanks inside and outside as standard
• AIRPROFI series boilers therefore come with a 15-year warranty against rust-through.

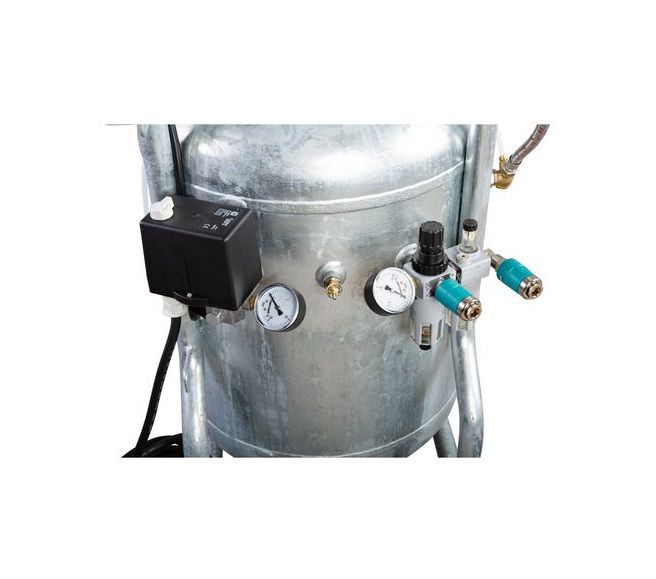

• Pressure regulation: Filter pressure regulator
• Automatic pressure switch: CONDOR
• Drive transmission: V-belt
• Material compressed air line: Flexible armored conduit with heat protection
• Compressed air treatment: Filter pressure regulator, mist lubricator
• Compressed air outlet: Two one-hand quick couplings
• Condensate drain
• Ball valve: Pressure vessel
• Hot-dip galvanized inside and out with fifteen-year warranty against rust-through
• Compressor base: Two wheels with PU foam tyres, two rubber buffers
• Connector: 400V CEE plug with phase inverter

Compressed air tank

• Maximum pressure: 10 bar
• Pressure vessel capacity: 90 l

Compressor

• Compressor system: HOS
• Suction capacity approx.: 390 l/min
• Filling capacity approx.: 285 l/min
• Explanation filling capacity: at 6 bar working pressure
• Number of cylinders: 2
• Number of compressor stages: 1

Dimensions and weights

• Length approx.: 600 mm
• Width/depth approx.: 600 mm
• Height approx.: 1030 mm
• Weight approx.: 77 kg

Electrical Data

• Delivery power: 2.2 kW
• Supply voltage: 400 V
• Mains frequency: 50 Hz
