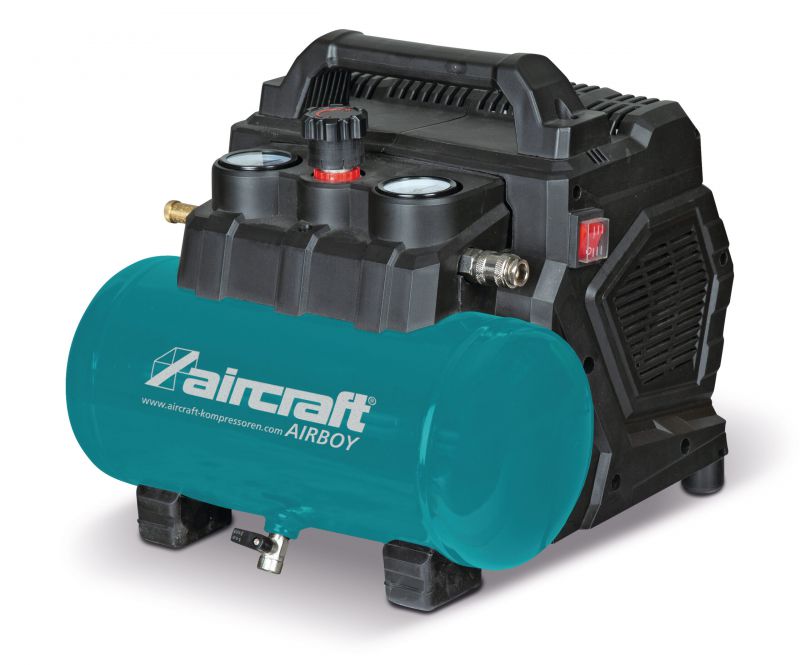

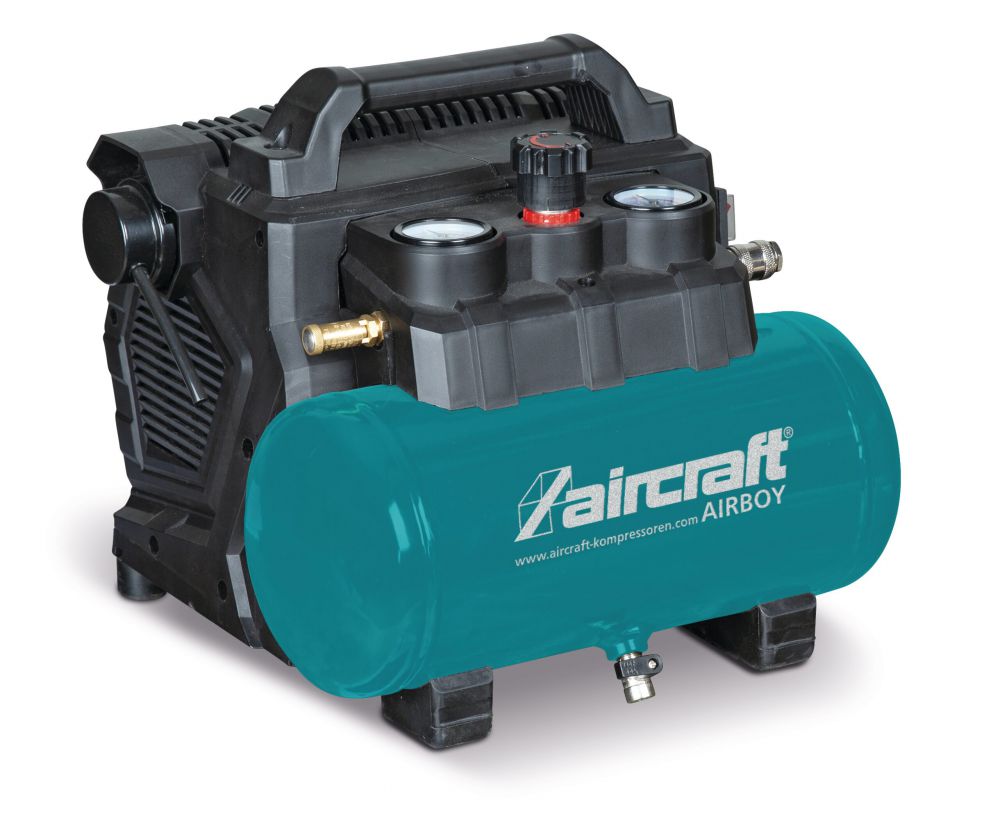

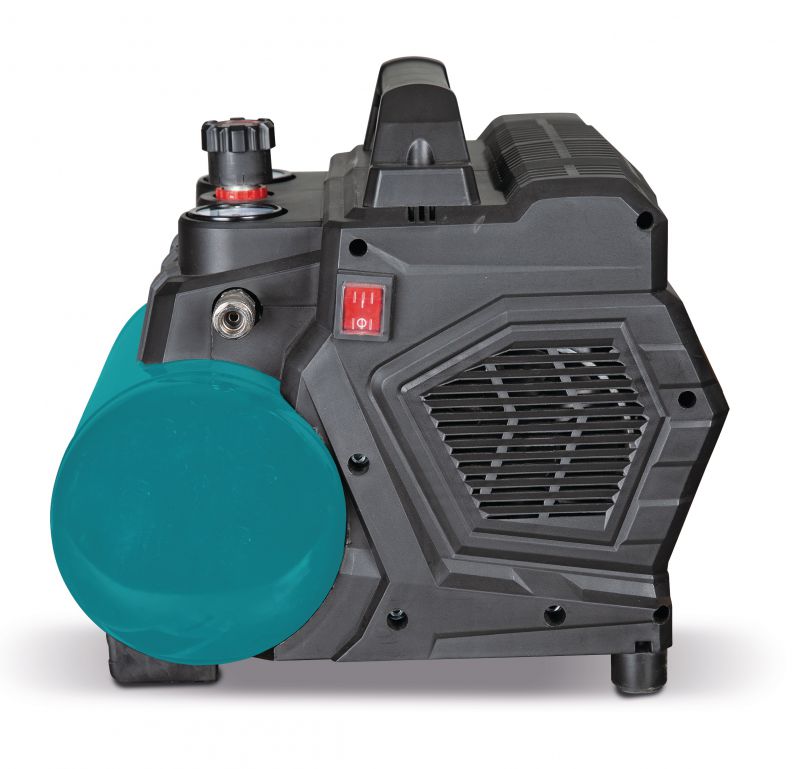

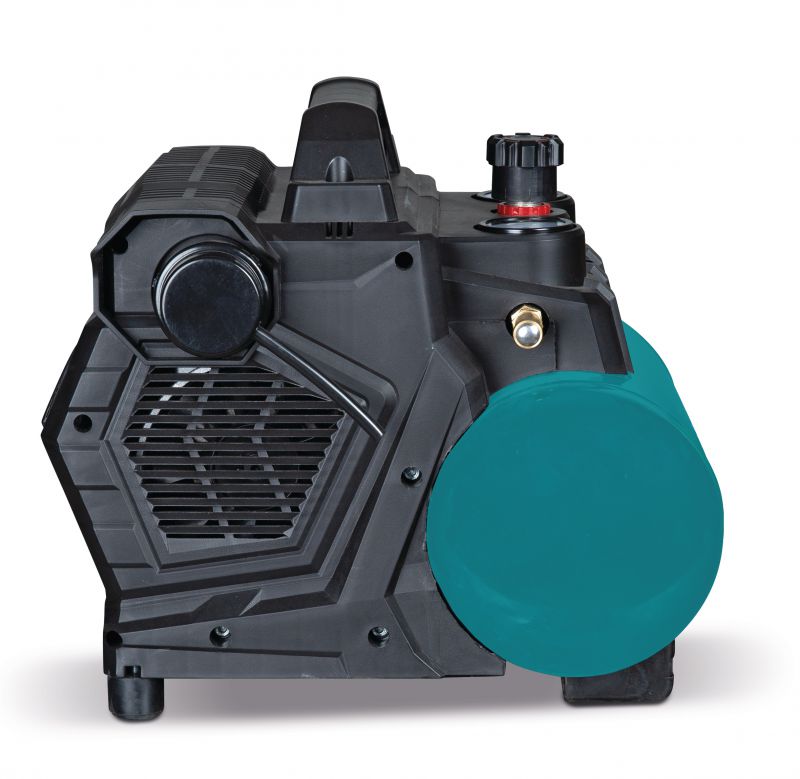

Sturmer Aircraft AIRBOY SILENCE 221 OF E Piston Compressor 8 Bar 900W 230v

Sturmer Aircraft

AIRBOY SILENCE 221 OF E Piston Compressor 8 Bar 900W 230v

ref: 2000206

• AIRBOY SILENCE 221 OF E Twin cylinder portable oil free piston compressor + quiet operation + 8 Bar 900W motor 230v
• Small, compact design
• Very smooth operation
• Oil-free piston compressor, thus no oil change necessary and no oil in the condensate
• Air sampling over a one-hand quick couplings
• Pressure regulator for stepless adjustment of the desired working pressure

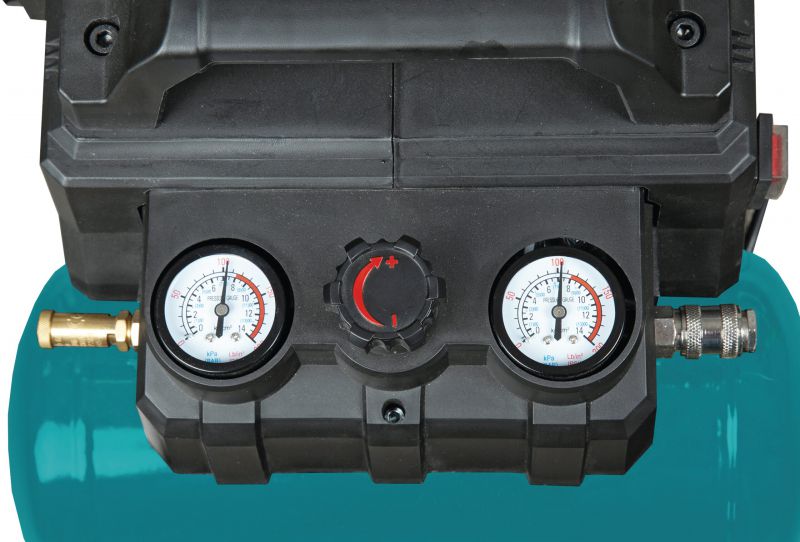

• Based on a pressure gauge for display of the container and work pressure
• Electric motor equipped with motor protection switch
• Vibration damping rubber feet
• Rubberized handle to prevent it slipping off during transport
• Compressed air tank powder coated
• Excellent running smoothness
• One-hand quick coupling
• Pressure regulator
• Frame to protect the compressor

• Pressure regulation: Pressure regulator
• Automatic pressure switch: ✔
• Drive transmission: Direct-coupled
• Material compressed air line: Flexible armoured hose line
• Compressed air outlet: A one-hand quick coupling
• Pressure vessel: Powder coated
• Compressor base: Vibration damping rubber feet
• Connection cable: 1,8 m

• Maximum pressure: 8 bar
• Pressure vessel capacity: 6 l

Compressor

• Compressor system: WDS
• Suction capacity approx.: 221 l/min
• Filling capacity approx.: 120 l/min
• Explanation filling capacity: at 6 bar working pressure
• Number of cylinders: 2
• Number of compressor stages: 1

Dimensions and weights

• Length approx.: 370 mm
• Width/depth approx.: 355 mm
• Height approx.: 330 mm
• Weight approx.: 16.4 kg

Electrical Data

• Delivery power: 0.9 kW
• Supply voltage: 230 V
• Mains frequency: 50 Hz
