Sturmer Aircraft AIRBOY SILENCE 171 OF E Piston Compressor 8 Bar 1100W 230v

Sturmer Aircraft

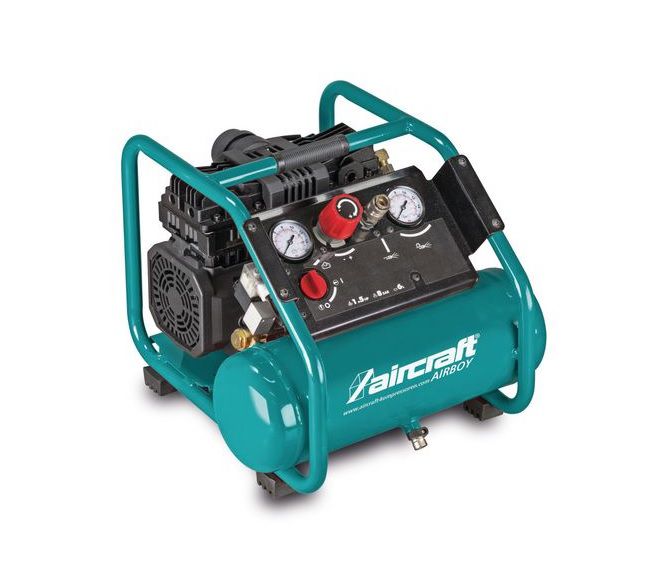

AIRBOY SILENCE 171 OF E Piston Compressor 8 Bar 1100W 230v

ref: 2001265

• AIRBOY SILENCE 171 OF E Twin cylinder portable oil free piston compressor + quiet operation + 6 Ltr + 8 Bar + 1100W motor 230v
• Small, compact design
• Very smooth operation
• Oil-free piston compressor, thus no oil change necessary and no oil in the condensate
• Air sampling over a one-hand quick couplings
• Pressure regulator for stepless adjustment of the desired working pressure
• Based on a pressure gauge for display of the container and work pressure
• Electric motor equipped with motor protection switch
• Vibration damping rubber feet
• Rubberized handle to prevent it slipping off during transport
• Compressed air tank powder coated

• Pressure regulation: Pressure regulator
• Automatic pressure switch: ✔
• Drive transmission: Direct-coupled
• Compressed air outlet: A one-hand quick coupling
• Pressure vessel: Powder coated
• Compressor base: Vibration damping rubber feet

Compressed air tank

• Maximum pressure: 8 bar
• Pressure vessel capacity: 6 l

Compressor

• Compressor system: WDS
• Oil-free / oil-lubricated: Oil free
• Suction capacity approx.: 160 l/min
• Number of cylinders: 2
• Number of compressor stages: 1

Dimensions and weights

• Length approx.: 445 mm
• Width/depth approx.: 435 mm
• Height approx.: 410 mm
• Weight approx.: 20 kg

Electrical Data

• Delivery power: 1.1 kW
• Supply voltage: 230 V
• Mains frequency: 50 Hz
