Sturmer Aircraft AIRBOY 186 OF E Piston Compressor 8 Bar 1100W 230v

Sturmer Aircraft

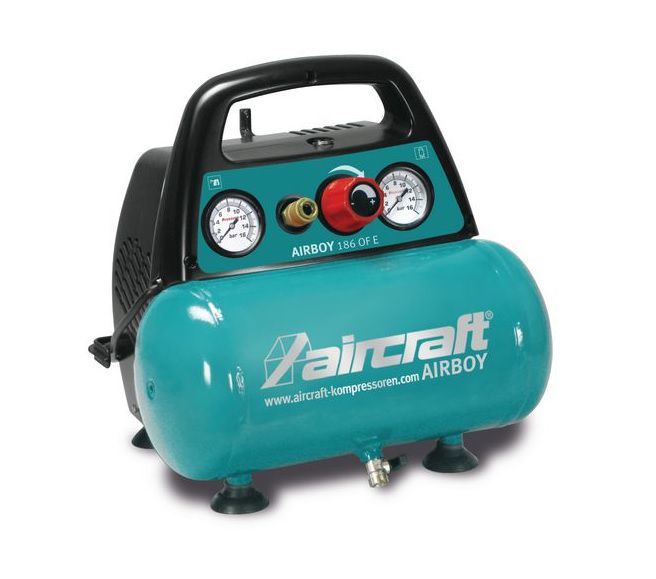

AIRBOY 186 OF E Piston Compressor 8 Bar 1100W 230v

ref: 2001230

• AIRBOY 186 OF E Portable piston oil free compressor + twin cylinders + 8 bar + powder coated air receiver + twin pressure guages + 1100W motor 230v
• Universally applicable
• Oil-free piston compressor, therefore no oil change necessary and no oil in the condensate
• Fully automatic on-off operation
• Electric motor equipped with motor protection switch
• One pressure gauge each for display of container and working pressure
• Powder coated air receiver
• Easy to use and easy to carry

• Pressure regulation: Pressure regulator
• Automatic pressure switch: ✔
• Drive transmission: Direct-coupled
• Material compressed air line: Aluminium
• Compressed air outlet: A one-hand quick coupling
• Pressure vessel: Powder coated
• Compressor base: Four suction cups
• Connection cable: 1,2 m

Compressed air tank

• Maximum pressure: 8 bar
• Pressure vessel capacity: 6 l

Compressor

• Compressor system: WDS
• Suction capacity approx.: 180 l/min
• Filling capacity approx.: 90 l/min
• Explanation filling capacity: at 6 bar working pressure
• Number of cylinders: 1
• Number of compressor stages: 1

Dimensions and weights

• Length approx.: 315 mm
• Width/depth approx.: 355 mm
• Height approx.: 370 mm
• Weight approx.: 9.2 kg

Electrical Data

• Delivery power: 1,1 kW
• Supply voltage: 230 V
• Mains frequency: 50 Hz
