SawStop Scale Mitre Gauge

SawStop Scale Mitre Gauge

ref: TSA-SMG-I

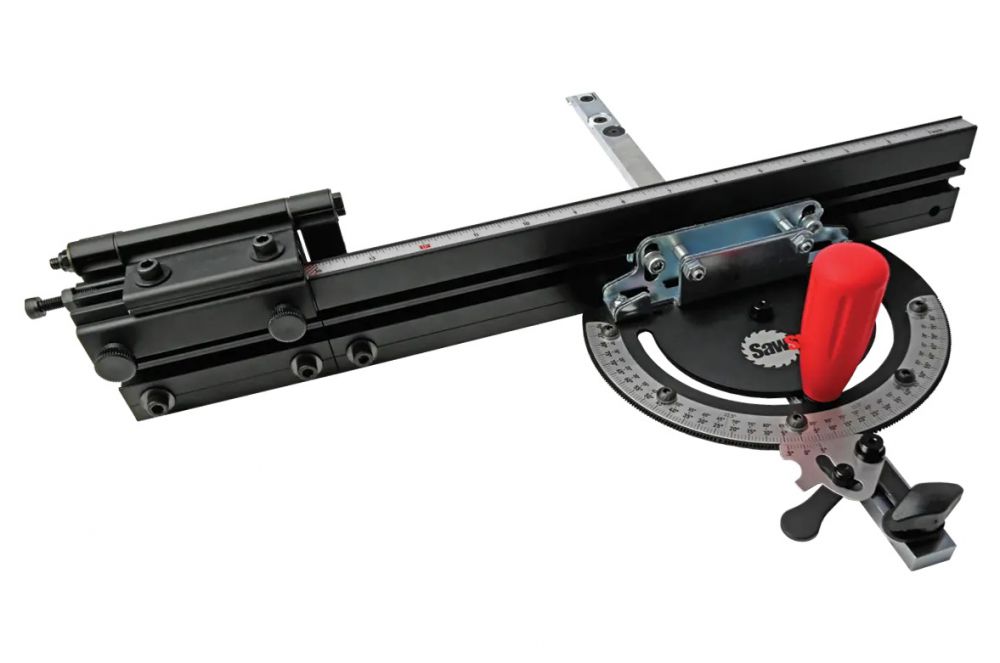

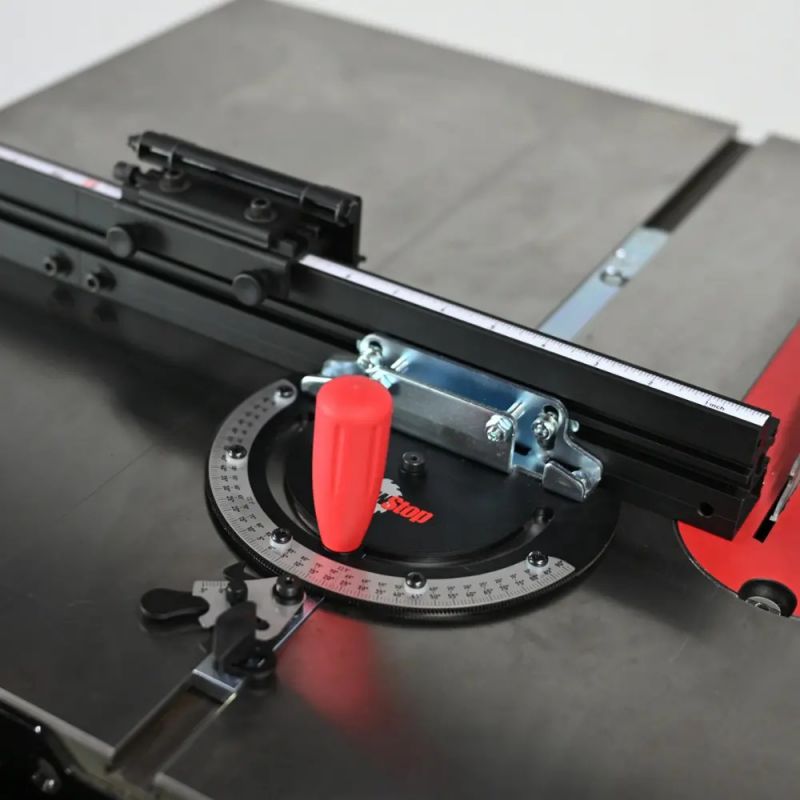

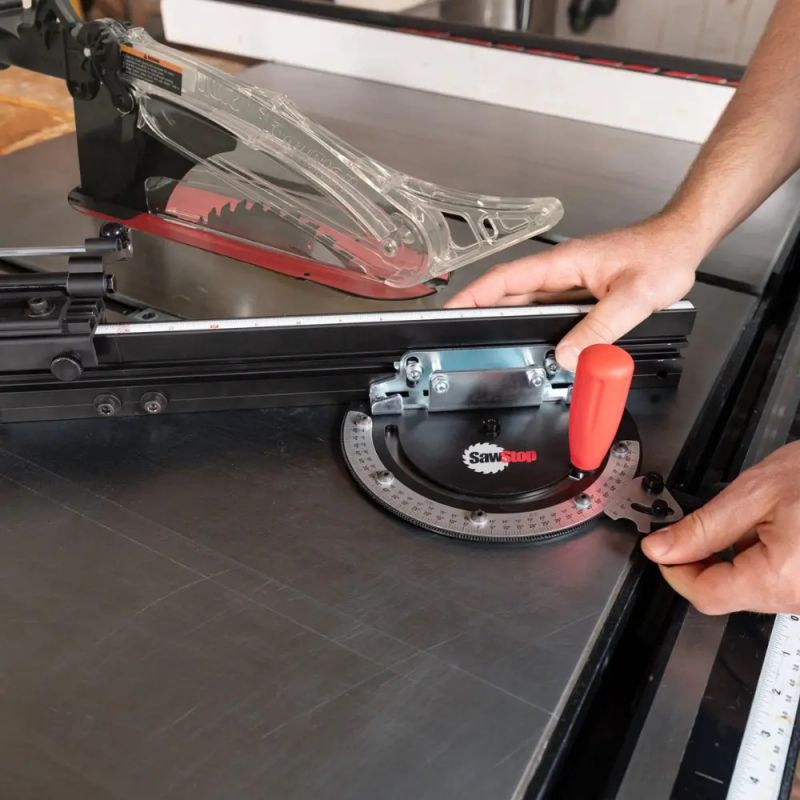

Engineered to bring can’t-miss accuracy to any table saw, the Scale Miter Gauge (SMG) features a protractor head with a pointer-and-notch alignment mechanism that locks in 181 precise angles. Anchor that to a premium adjustable miter bar and add a heavy-duty extendable fence and micro-adjustable flip stop for making repeated cuts of the same length, and you have a premium miter gauge that will take your woodworking to a whole new level of accuracy.

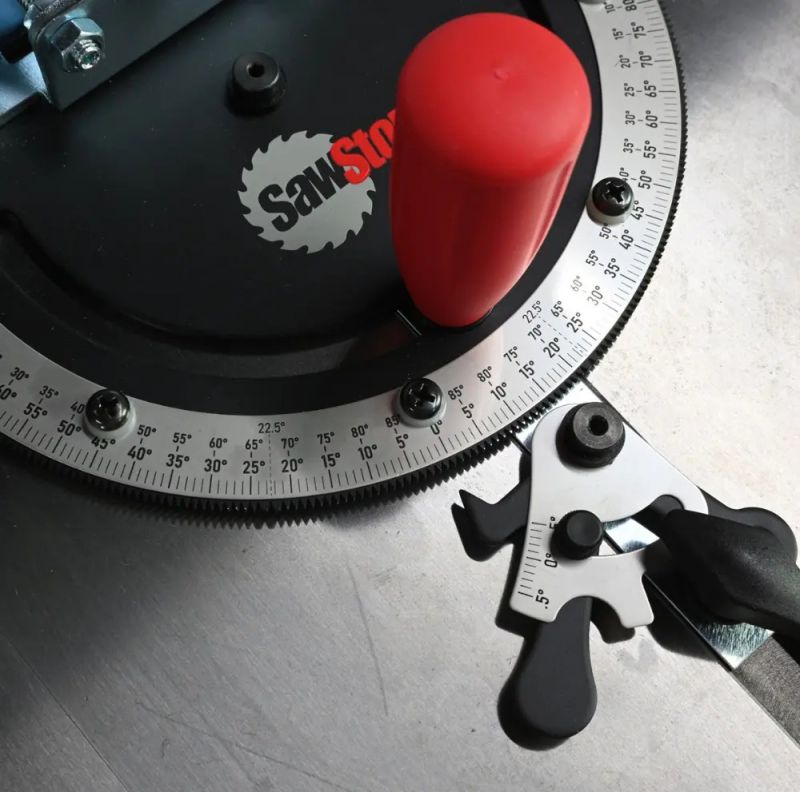

• The precision protractor head features a pointer and 90 notches in 1° increments each side of 0°, including one for 22.5° on each side. In addition, the built-in Vernier scale gives you the ability to fine-tune any angle in 1/10° increments.
• An 457.2mm (18”)-long miter bar, made to fit in common 9.52mm (3/8”) x 19.05mm (3/4”) miter slots, uses six adjustable washers to eliminate side-to-side wiggle in the miter slot while ensuring a smooth glide forward and back. A screw-on T-clip at the front of the bar holds the bar level in the miter slot when you pull the head off the table.

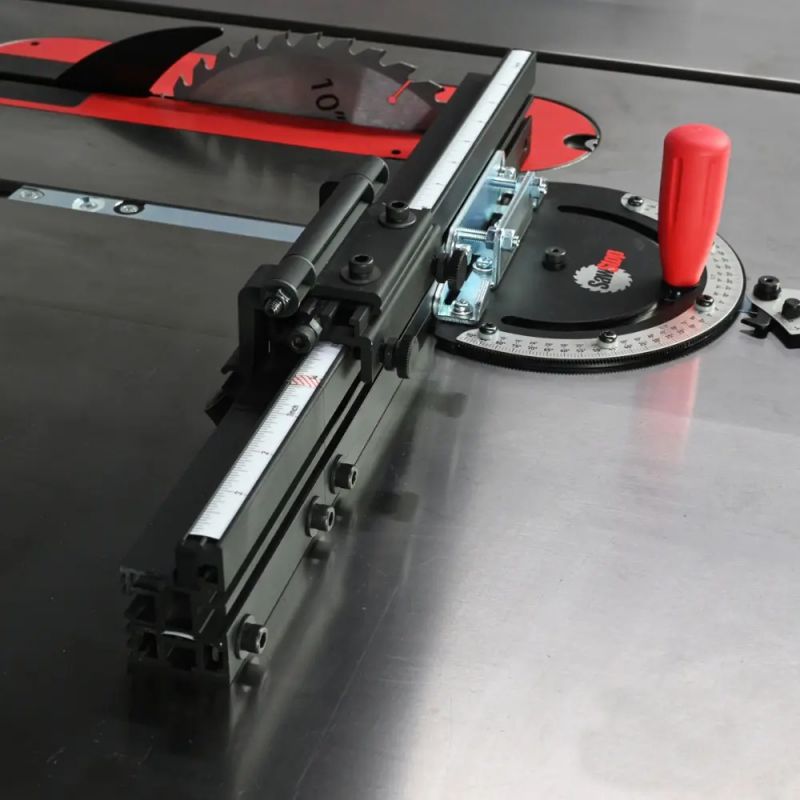

• The aluminum fence provides a larger reference for holding workpieces accurately (compared to the head alone), with a telescoping extension that reaches up to 800.1mm (31-1/2”), 863.6mm (34”) with the flip stop). A T-slot in the front face provides a place to attach auxiliary wood fences with T-bolts. The scale on top of the fence can be calibrated to enable making precise crosscuts without having to measure and mark your boards.

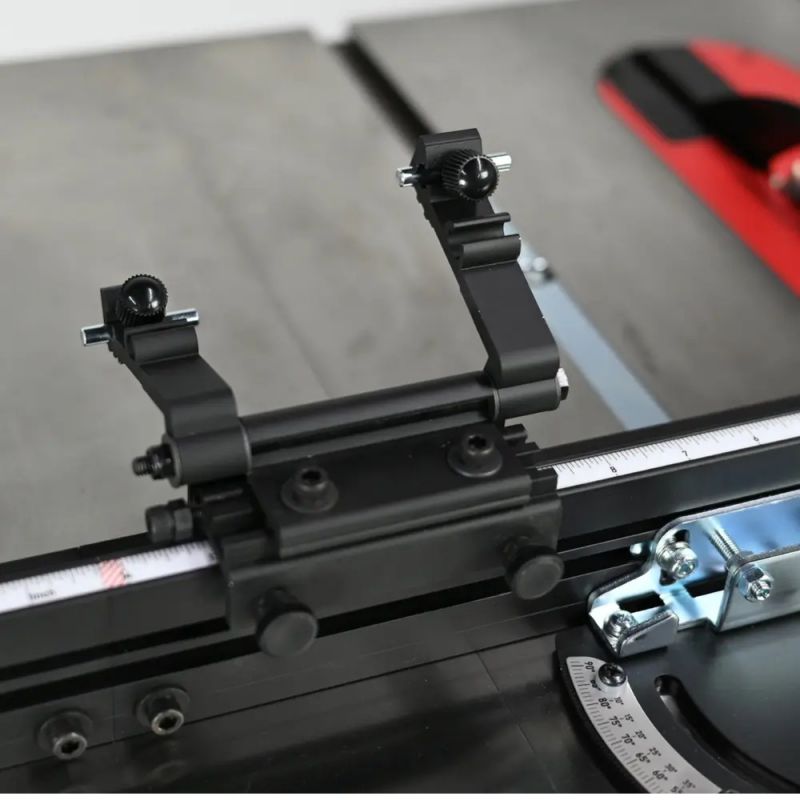

• Use the flip stop to make repeated cuts at the same setting for identical project parts. The flip stop indexes on the fence with a tooth-and-notch system that lets you position it in 0.79mm (1/32”) increments. The flip stop’s dual arms can be set independently at different lengths from the blade or linked together with a rod, all of which can be fine-tuned with a built-in micro-adjuster.
