SawStop 8" / 203mm Premium Dado Set

SawStop 8" / 203mm Premium Dado Set

ref: BTS-DS8-2402-I

Get unmatched performance with our 8” / 203mm Premium Dado Set. This stacked dado set features 24-tooth outer blades with left- and right-bevel tooth grind, five flat–grind chippers in a variety of widths to provide the precise dado width you need, and -5° hook angle for less tear–out and aggressiveness, resulting in cleaner one-pass cuts. This set comes with shims to fine-tune a width, as well as a heavy-duty storage case.

• Premium specialized blade set suited for cutting hardwoods, softwoods, and sheet goods.
• 8″ / 203mm Premium Dado set with 5/8″ / 15.9mm arbor
• 24-teeth ATB outer blades
• Flat grind chippers for reliable cutting
• Variety of chipper widths for optimum width flexibility
• -5° teeth hook angle for less chipping and cleaner cuts
• ¼”– 29/32” cutting range
• 6000 maximum RPM.
• REQUIRED FOR DADOS – In Europe the Floating Overarm Dust Collection must be used to be CE or UKCA compliant, which is mandatory in a professional workplace.

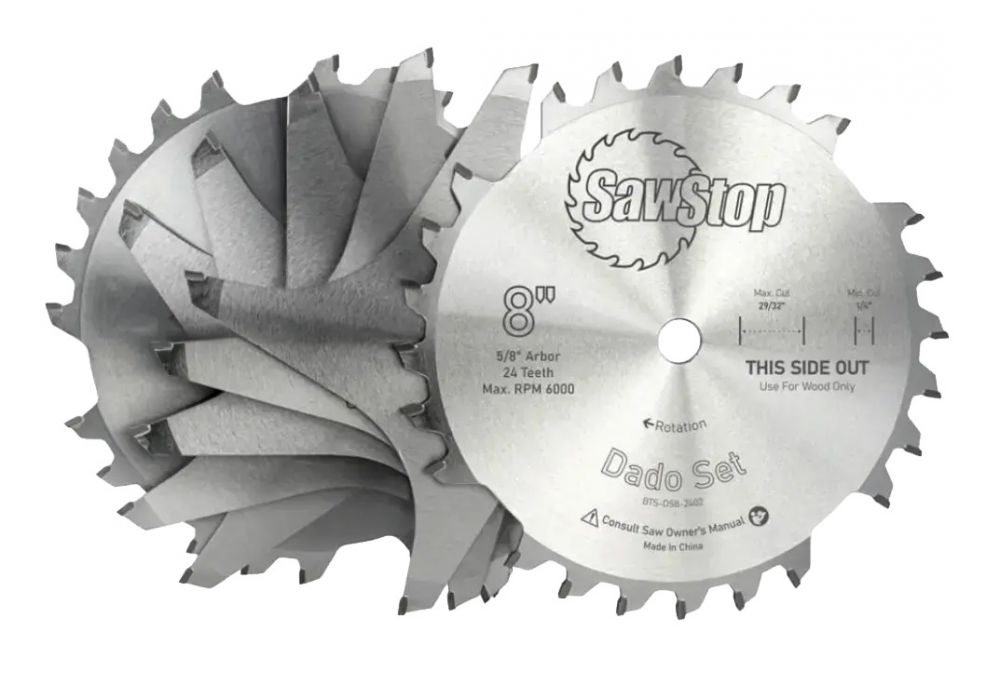

Main Blades

• 8” 24-tooth right-angle outer blade
• (1) 8” 24-tooth left-angle outer blade

Chippers

• (1) 8” 4-tooth ¼”-wide chipper
• (2) 8” 4-tooth 1/8”-wide chippers
• (1) 8” 4-tooth 1/16”-wide chipper
• (1) 8” 4-tooth 1/32”-wide chipper

Shims

• (3) .004”-thick shims
• (3) .008”-thick shims

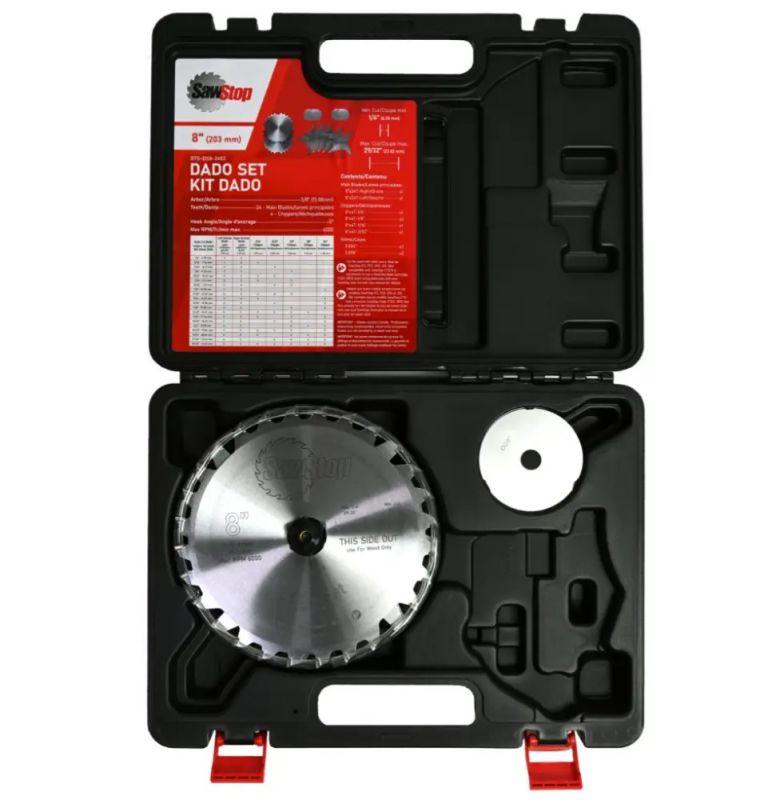

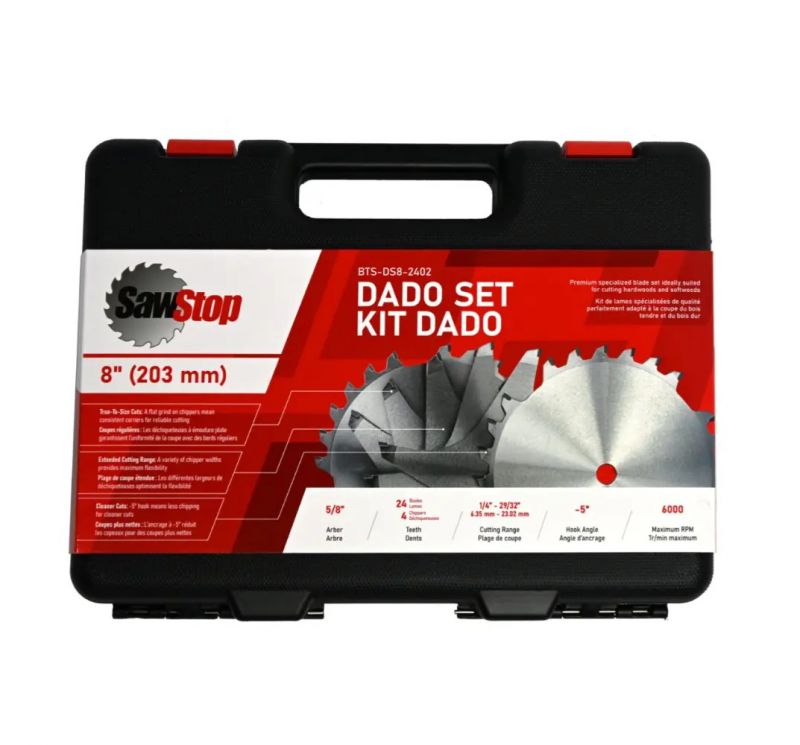

Case

• (1) plastic storage case
