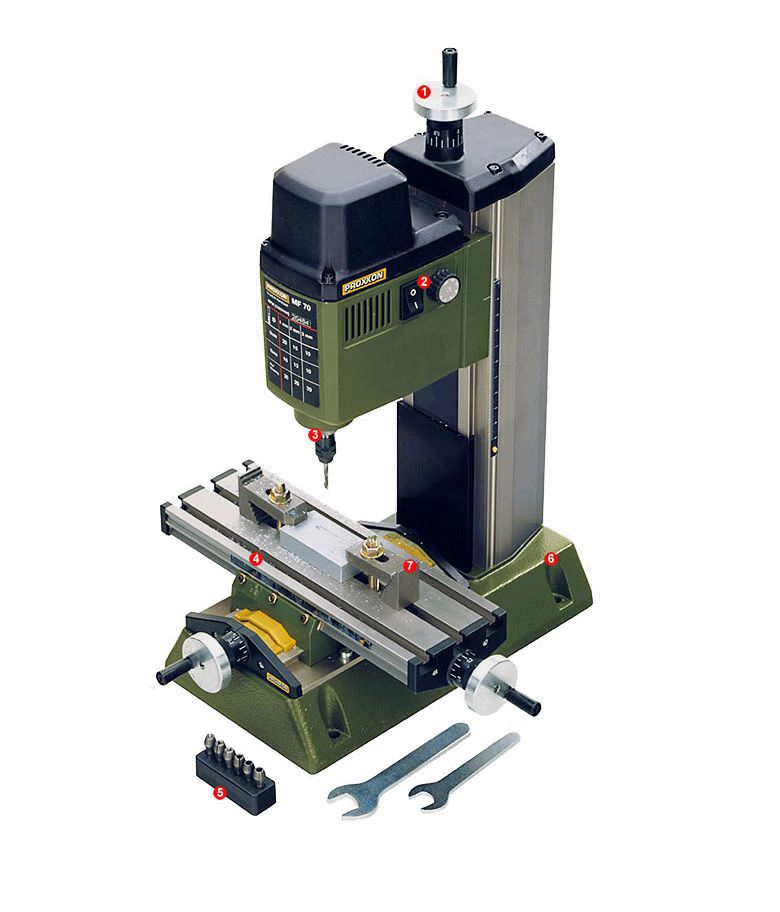

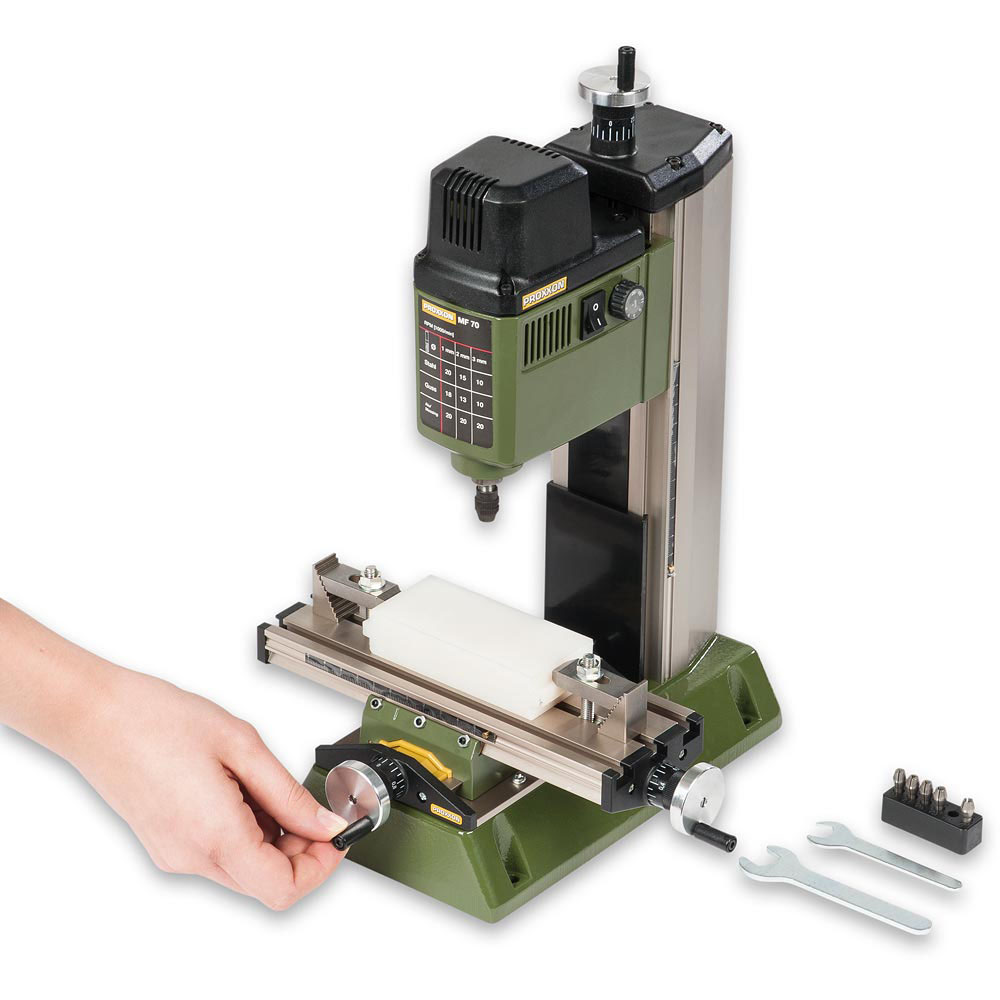

Proxxon MICRO Milling Machine MF 70 230v

Proxxon MICRO Milling Machine MF 70 230v

ref: 27110

Small but excellent: the accurate milling machine for lab technicians, opticians, jewellers, electricians/model builders.

• The accurate milling machine for delicate projects. Spindle speeds 5,000 - 20,000rpm. For work with extremely small cutters.
• Stable grey-cast iron machine base, vertical guide and compound table. Free from play, readjustable dovetail gib in all axes. Die-cast aluminium arm housing, with 24-pin special motor (balanced). For vibration-free work at high speeds.
• The triple slit, hardened steel MICROMOT collets 1 - 1.5 - 2 - 2.35 - 3 - 3.2mm.
• The table is fitted with 3 T-slots of the 12 x 6 x 5mm MICROMOT norm.
• An adjustable ruler scale eases the positioning of the workpiece.
• Handwheels with zero adjustable scales, 1 revolution = 1mm, 1 division = 0.05mm.
• Table of stable aluminium. Both axes are fitted with adjustable dovetail slides.
• Supplied complete with stepped clamp blocks of steel.

• 230V, 100W, 50/60Hz.
• Spindle speeds 5,000 - 20,000rpm.
• Table 200 x 70mm with X-Y travel of 134 and 46mm respectively, with vertical travel 80mm.
• Footprint size 130 x 225mm and overall height 370mm.
• Weight approx. 7kg.
