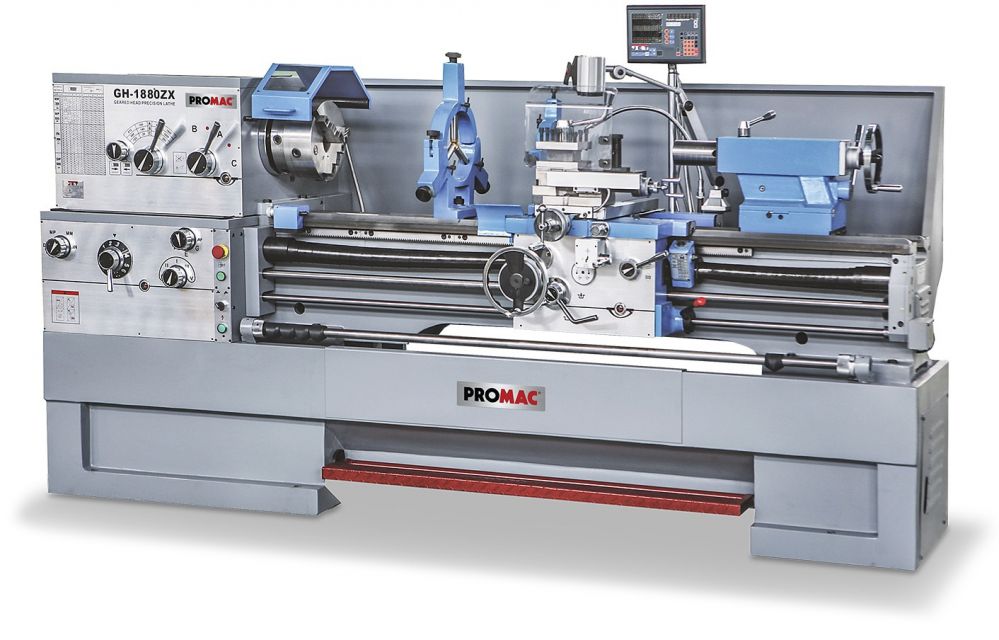

Promac GH-1880ZX-T-QC Precision Lathe 400v

Promac GH-1880ZX-T-QC Precision Lathe 400v

• Equipped with monitoring function for 3 axes (X, Y, Z)
• Prismatic frame made of gray-cast iron, induction hardened
• Reversal of direction CCW/CW
• Automatic longitudinal and traverse feed
• Incl. emergency stop switch

• Cast iron stand
• 6 Leveling pads
• Pull out chip tray
• Splash guard
• 250mm 3-jaw universal chuck
• 300mm 4-jaw independent chuck
• 300mm faceplate
• Quick Change tool post and holders
• Steady rest
• Follow rest
• Foot brake
• Coolant system
• Halogen work light
• MT-4 (MT-5) life centre
• MT-5 fixed centre
• MT5 / MT7 centre sleeve
• Threading dial
• Operating tools in tool box
• Oil can
• Operating manual Spare parts list

• Motor (V/kW) 400/5.6
• Center height (mm) 230
• Center distance (mm) 2’030
• Swing over bed (ø-mm) 460
• Swing over carriage (ø-mm) 280
• Spindle bore (mm) 80
• Morse taper of headstock MT7
• Spindle taper CAMLOCK D1-8 (DIN 55029)
• Speed range (min-1) 25–1’800
• Cross slide, stroke (mm) 228 Top slide, stroke (mm) 130
• Range of metric threads (mm) 0.5–20.0
• Range of inch threads (TPI) 72–15/8
• Longitudinal feed (mm/U) 0.038–2.3
• Morse taper of tailstock MT5
• Morse taper of tailstock, stroke (mm) 150
• Max. tool size (mm) 25
• 3-jaw chuck (mm) 250
• Dimensions (mm) 3’458×1’016 ×1’120
• Weight (kg) 2’980

Promac GH-1880ZX-T-QC Owners Manual
