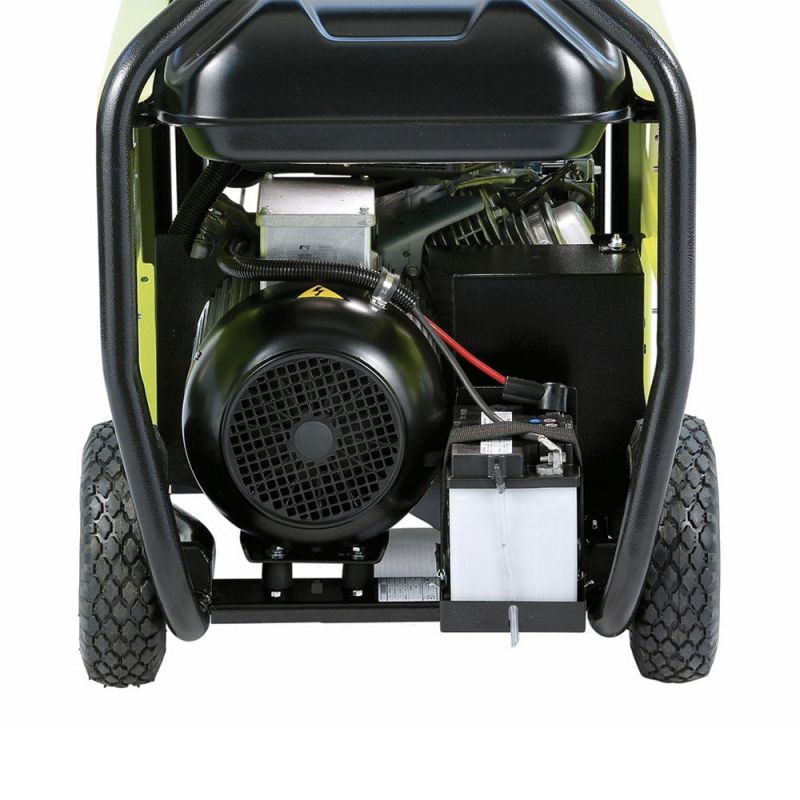

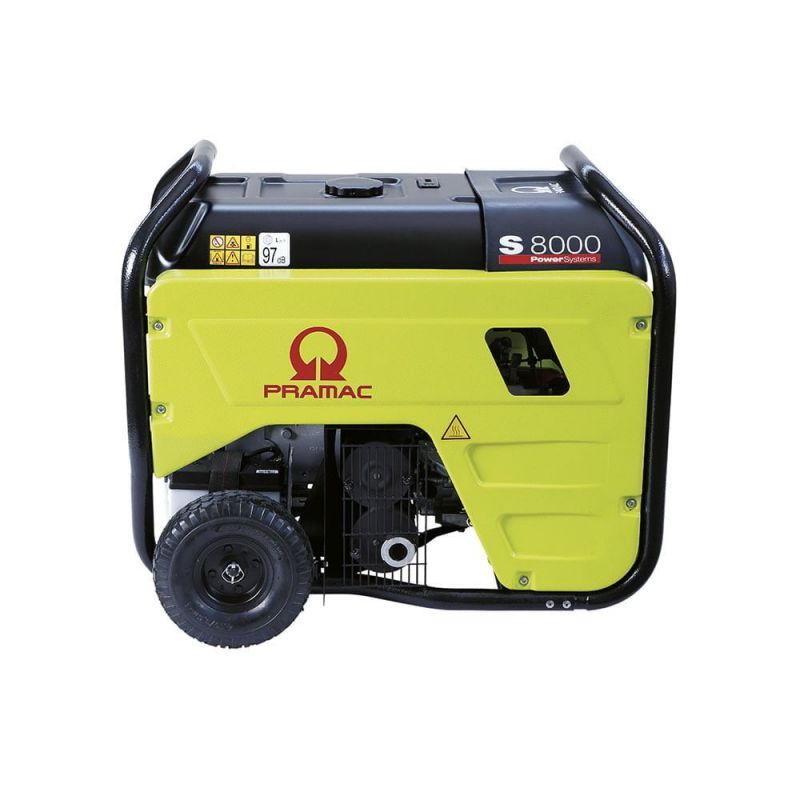

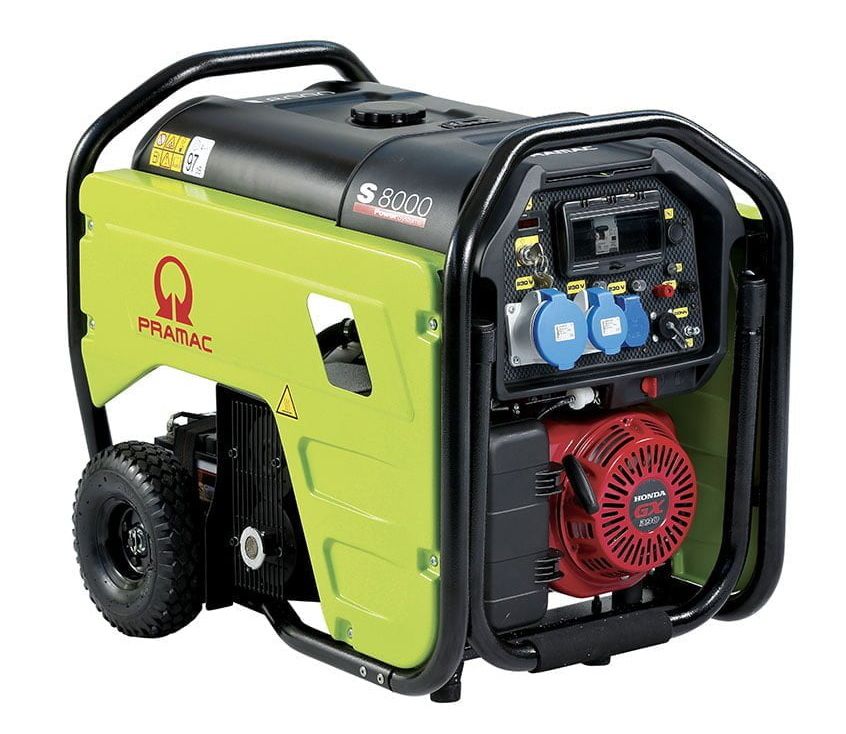

Pramac S8000 Portable Petrol Generator 230V 7.2kva - S8000-230

Pramac S8000 Portable Petrol Generator 230V 7.2kva

ref: S8000-230 / PD612SH2Z05

• Pramac S8000: A powerful and robust generator built for professional and intensive use. With its strong and compact frame, the S8000 is ready to move where power is needed and configured.

An innovative generator designed to meet professional applications. Includes:

• Practical quick user instructions leaflet on the front panel.
• Integrated transport kit.

Control Panel:

• Selector switch with key: OFF – ON-START
• Pushbutton Choke
• CONNector for AMF/RSS (AMF/RSS Accessory available not included)

Instrumentation:

• Voltmeter
• Hours-meter
• Frequency meter
• Fuel gauge

Output:

• Battery Charger 12V DC

Sockets:

• 1 x SCHUKO 230V 16A IP54
• 1 x CEE 230V 16A IP44
• 1 x CEE 230V 32A IP44

Main Features

• Frequency Hz: 50
• Voltage V: 230
• Power factor cos ϕ: 0.9
• Phase: 1

Power Rating *

• Emergency Standby Power ESP kVA: 7.2
• Emergency Standby Power ESP kW: 6.4
• Continuous power COP kVA :6.0
• Continuous power COP kW: 5.5

Engine specifications

• Engine Brand: Honda
• Model: GX390 Electric
• Engine cooling system: Air
• Displacement cm³: 389
• Aspiration: Natural
• Operating Speed-Nominal rpm: 3000
• Speed governor: Mechanical
• Fuel: Petrol
• Oil capacity l: 1.1
• Starting system: Electric (+ Recoil)

Alternator Specifications

• Brushes
• Class: H
• IP protection: 23
• Poles: 2
• Frequency Hz: 50
• Voltage regulation system: Electronic
• Standard AVR: AVR 520

Dimensional data

• Length (L) mm: 840
• Width (W) mm: 615
• Height (H) mm: 753
• Dry weight kg: 109
• Fuel tank capacity l: 27

Autonomy

• Fuel consumption at 75% of Load l/h: 2.16
• Fuel consumption at 100% of Load l/h: 2.87
• Running time at 75% of load h: 12.50
• Running time at 100% of load h: 9.41

Noise level

• Guaranteed noise level (LWA) dB(A): 97
• Noise pressure level @ 7 m dB(A): 69

* Ratings definition (ISO-8528)

• ESP - Emergency Standby Power: It is the maximum power available during a variable electrical power sequence, under the stated operating conditions, for which a generating set is capable of delivering in the event of a utility power outage or under test conditions for up to 200 h of operation per year with the maintenance intervals and procedures being carried out as prescribed by the manufacturers. The permissible average power output over 24 h of operation shall not exceed 70 % of the ESP.
• COP - Continuos Power: It is defined as being the maximum power which a generating set is capable of delivering continuously for an unlimited number of hours, with the maintenance intervals and procedure being carried out as prescribed by the manufacturers.
