Nova JS75DT Step Chuck Jaw Set for Woodturning Scroll Chuck

NOVA JS75DT - Step Chuck Jaw Set
Woodturning Scroll Chuck Jaws
Ref: JS75DT

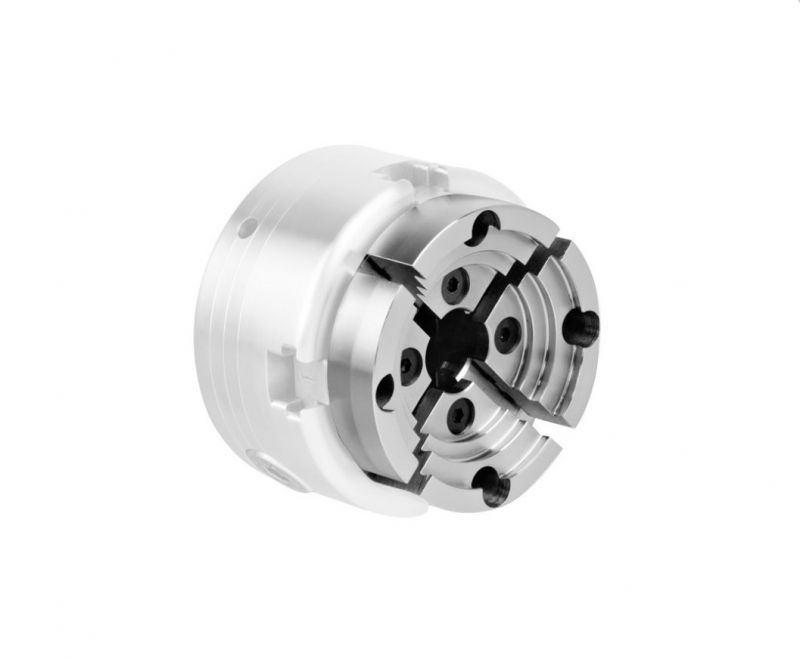

JAWS ONLY chuck shown for illustration

• Primarily designed to grip the base (foot) of footed bowls
• Three steps with optimum grip size of 42mm, 50mm and 64mm
• Expanding dovetail can hold bowls up to 300mm in diameter
• Expands into a recess between 77.5mm and 97.5mm diameter
• Bowl foot gripping range from 41.5mm to 83.5mm diameter
• Square timber between 30mm and 66mm

The primary purpose of these step jaws is to grip in the contracting mode onto the base (foot) of footed bowls. The step sizes provide optimum gripping for three foot sizes with minimal crush damaged wood. The optimum step sizes are 42mm, 50mm and 64mm. Of course there is plenty of adjustment. There is also an expanding dovetail made for alternative recess gripping of bowls. Can hold bowls up to 300mm in diameter. The jaw expands into a recess between 77.5mm and 97.5mm diameter. When gripping onto the foot of a bowl the range is 41.5mm to 83.5mm diameter. These jaws will also hold square stock between 30mm and 66mm.

Suits both SuperNova2 and Nova G3 chucks, Robert Sorby Patriot

If you are unsure if these jaws fit your chuck please contact us and we will be happy to help

THESE WILL NOT FIT ANY OF THE AXMINSTER RANGE OF CHUCKS

• Expands Internal - 77.5 to 9 7.5 mm
• Expands External - 41.5 to 83.5 mm
• Square Section - 30 to 66 mm
• Jaw Type JS75DT
