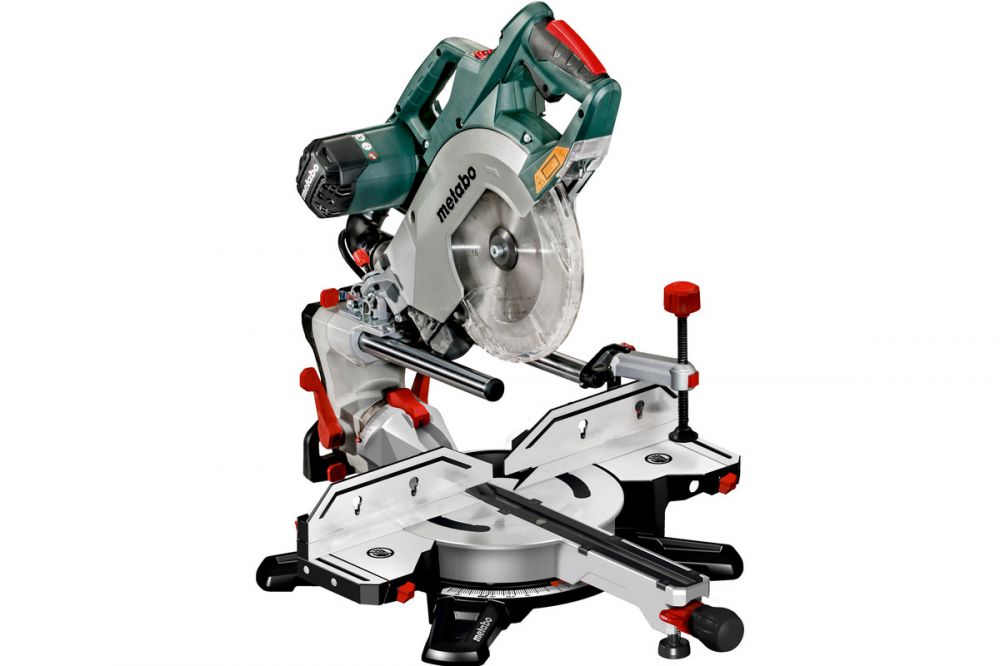

Metabo 8" Double Bevel Sliding Mitre Saw KGSV 72 Xact 240V

Metabo KGSV 72 Xact 240V 8" double bevel sliding mitre saw - ref: 611216000

• Compact traction function for wide workpieces up to 305 mm: no space required behind the saw.
• Maximum flexibility when sawing thanks to rotating table and inclinable saw head on both sides.
• Double line laser for precise display of the cutting line left and right of the saw blade.
• Speed control for extended range of application, e.g. for cutting of aluminium profiles and plastics.
• Compact light-weight with ergonomically designed carry handles, ideal for mobile use.
• Effective dust extraction via integrated dust scoop.
• Fast and precise setting of common angles using stop points.
• Bright LED work light for illumination of the cutting line (mains powered, no batteries required).
• Sliding high rear fence profiles for safe sawing.
• Depth stop for easy creation of grooves.
• Easy saw blade change by means of spindle lock: No dismantling of the pendulum protective cover required.

• Carbide saw blade (40 teeth).
• 2 Table length extensions.
• Material clamp.
• Tool for saw blade change.
• Cable winder.

• Dimensions 660 x 540 x 415 mm.
• Maximum cutting width 90°/45° 305 / 215 mm.
• Maximum cutting depth at 90°/45° 72 / 42 mm.
• Cutting capacity 90°/90° 305 x 72 mm.
• Cutting capacity 45°/45° 215 x 42 mm.
• Turntable setting left/right 50 / 50 °.
• Saw blade tilt left/right 47 / 47 °.
• Saw blade 216 mm.
• Rated input power S1 100% 1500 W.
• Rated input power S6 20% 1800 W.
• No-load speed 2200 - 6300 rpm.
• Cutting speed 25 - 70 m/s.
• Weight 16.1 kg.
• Cable length 3 m.
