Mafell ZSX EC / 400 Q Carpenter's Chain Saw 240v - 925553
Product Code: MAF/925553
Brand: Mafell
In Offsite Stock - Delivery in 4 to 5 Days
£5,477.14 Inc. VAT
£4,564.29 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Please call to check stock availability for larger quantities

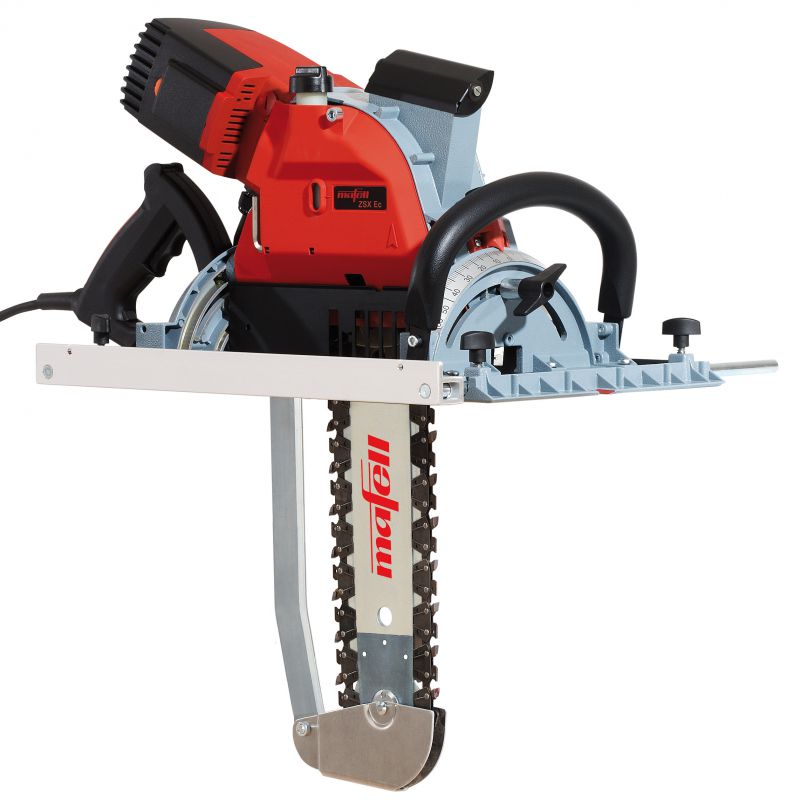

Mafell ZSX EC / 400 Q Carpenter's Chain Saw 240v - 925553
Replaces 925503
Key Features
- MAFELL´s unique chain guide system ensures consistent accurate cuts.
- The ZSX Ec can be tilted on both sides to 60°. The ability to precisely set a wide range of working angles in opposing directions offers maximum convenience.
- The generously dimensioned and adjustable chip ejector performs extremely efficiently.
- The generously dimensioned and adjustable chip ejector performs extremely efficiently.
- Automatic chain lubrication with adjustable speed to eliminate oil spillage on timber.
- Like all our portable circular carpentry saws, the ZSX Ec also uses our guide rail system.

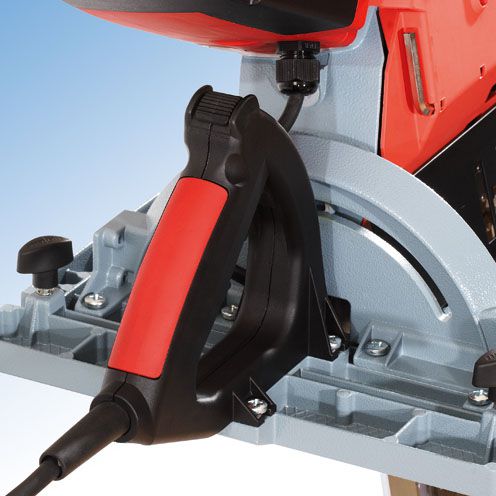

- Equally adapted for operation by either right-handed or left-handed users. The ergonomically designed handle and switch arrangement always applies the feed pressure at right angles to the support.
Strengths and benefits
- 3000 W CUprex motor, optimized digital electronics and newly developed control technology.
- The universal guide support for very precise individual machining operations such as notch and purlin cuts is available as an optional accessory.
- Excellent handling and optimum convenience - thanks to light weight and a built-in start-up lock.

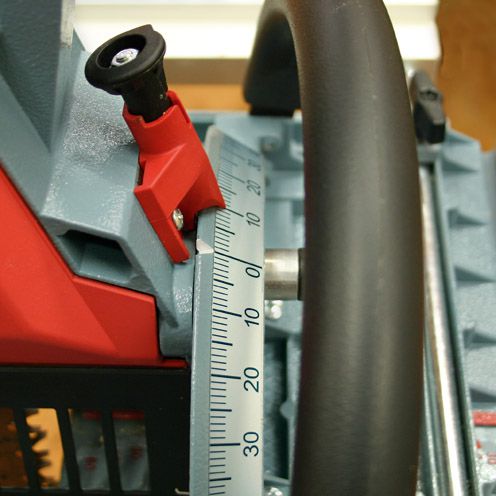

- Twin-guide tilt adjustment - for precise angle cuts.
- Excellent cutting results - thanks to MAFELL special saw chain.
- Mafell CUprex High-Performance Motor
Applications
- Cross-cutting and rip cuts
- Bevel cuts up to 60°
- General joining work
- Compound miter cuts up to 60°
- Compatible materials include solid wood, laminated beams, insulating materials
Items included
- 1 Parallel fence; Ref. No. 204591
- 2 Saw chain 3/8“ 400 P for ZSX Ec / 400 Q; ref. No. 006974
- 1 Combination screw driver 6 mm; Ref. No. 093272
- 1 Mains cable 10 m (32.8 ft); Ref. No. 087612
- 1 adapter cable UKCA
- boxed
Technical details
- Cutting depth 400 mm
- Cutting depth at 45° 282 mm
- Cutting depth at 60° 199 mm
- Tilts in both directions -60° - +60° °
- Nominal No. of strokes – no load 3000-3600 1/min
- Nominal power input 3000 W
- Universal motor 230 V / 50 Hz
