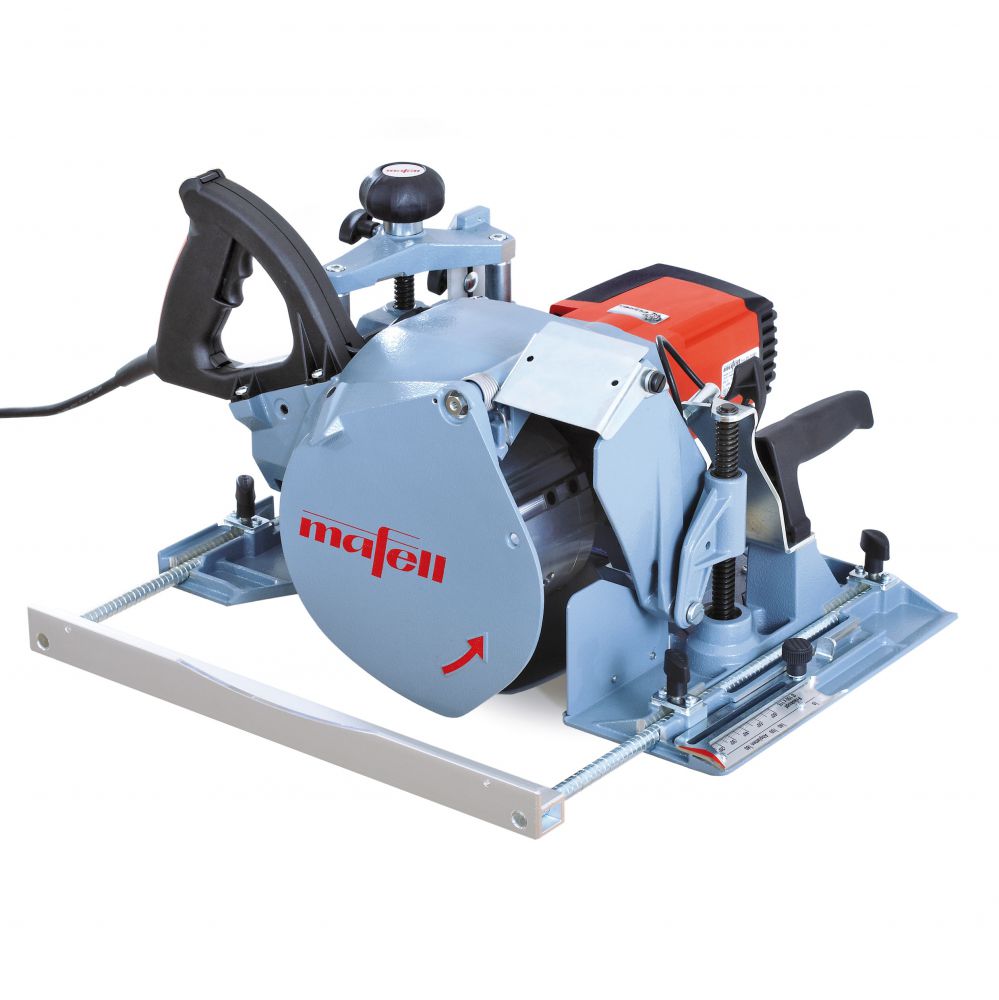

Mafell ZK 115 EC Skew Notch and Tenon Cutting Machine 240V - 925023

Mafell ZK 115 EC Skew Notch and Tenon Cutting Machine 240V - 925023

Replaces 925001

• The ZK 115 Ec – a persuasive and powerful tool offering ease of use, a tool brake and electronics with: - Smooth starting - Constant speed under load - Overload protection - No-load speed reduction to protect machine - Reduced noise emissions

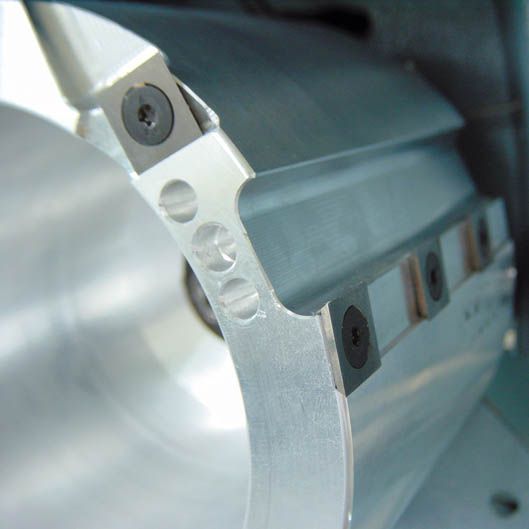

• The entirely newly developed 150 x 115 mm (5 7/8 x 4 1/2 in.) cutter head of the ZK 115 Ec, with 13 reversible carbide tips (9 for final, 4 for rough cutting), facilitates very high cutting rates, optimum chip removal and an extended service life.

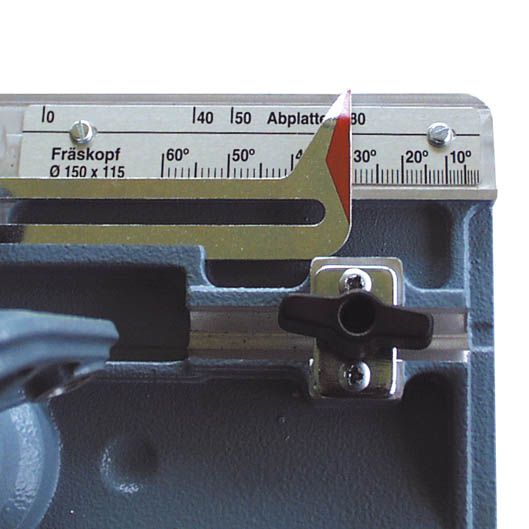

• Simply score the notch and vertical cut, set the cut indicator, notch depth and angle – and mortising can begin. It couldn´t be quicker or easier!

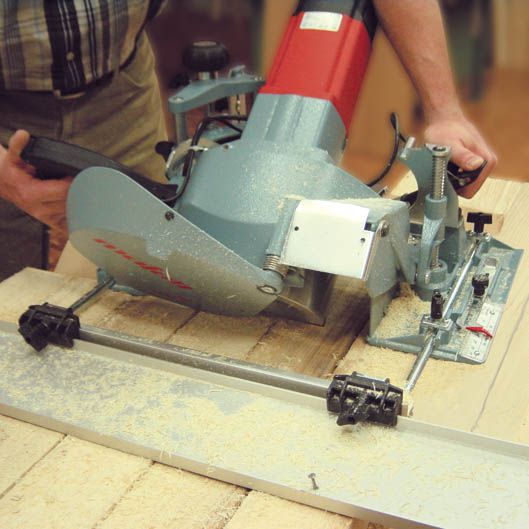

• The guide rails available as optional accessories can be used with all other MAFELL carpentry machines.
• Special machine – for all notching and facing tasks.
• Fast, precise adjustment – no test cutting necessary – considerable time-saving.
• All-round protective cover – for optimum user protection.

• Birdsmouth cuts and lap joints
• Compatible materials include solid wood and glue-laminated timber

• Unsurpassed precision – approved right-angled height adjustment. Distance of noches always constant irrespective of wood tolerances.
• New cutter head with reversible carbide tips for extreme machining rates and optimum chip removal.
• Mafell CUprex High-Performance Motor

• 1 Cutter head, cpl., Ø 150 x 115 mm (5 7/8 x 4 1/2 in.) Ref. No. 203657
• 1 Parallel guide fence Ref. No. 203683
• 1 Allen key 10 mm Ref. No. 093164
• 1 Screw driver Torx T 15 Ref. No. 093274
• 1 Mains cable 10 m (32.8 ft) Ref. No. 087612
• 1 adapter cable UKCA

• Cutting depth at 0°: 0 - 2 12/16 Inch
• Tilt range: 0 - 60 °
• Nominal No. of strokes – no load: 4050 1/min
• Nominal power input: 4.0 hp
• Weight (with standard cutter head): 46.5 lbs
• Universal motor: 230 V / 50 Hz
