Mafell SKS 130 Door Lock Mortiser in Case with 16mm Chain Set 240v - 915521

Mafell SKS 130 Door Lock Mortiser in Case with 16mm Chain Set 240v

ref: 915521

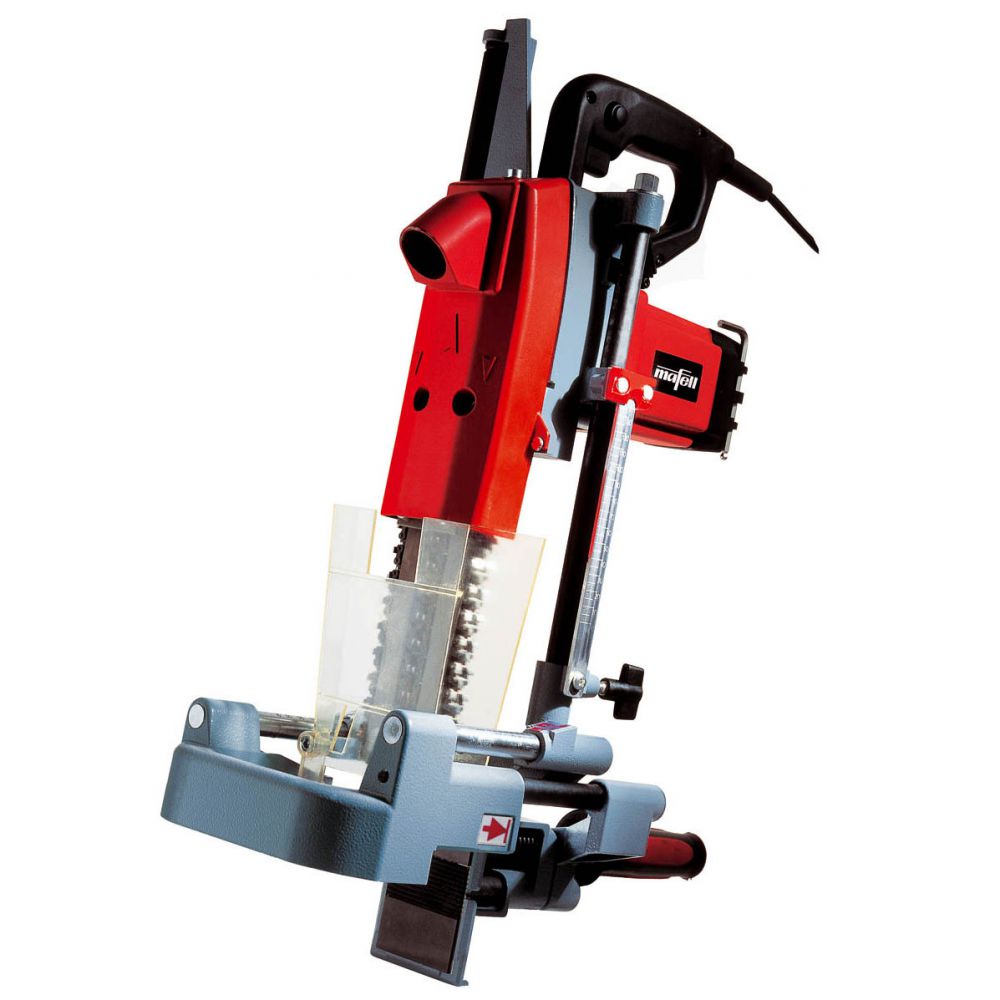

• The SKS 130 – the world´s first portable special machine for mortising door locks.
• The security needs of many house and apartment owners have increased considerably, so that more and more security locks are being fitted.
• At 1600 watts (2.1 hp), the SKS 130 cuts door locks of all sizes - completely tear-free!

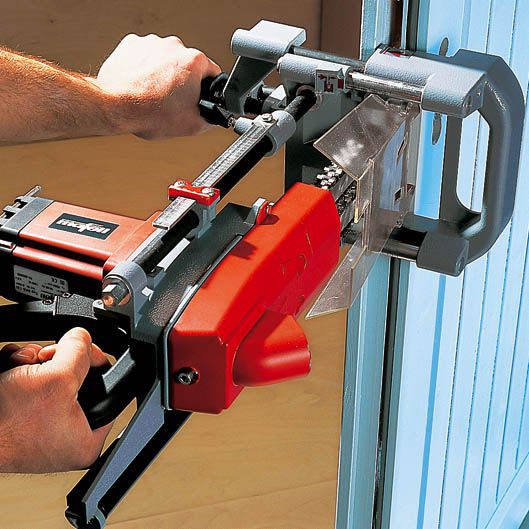

• The SKS 130 is clamped onto a large surface of the door. Due to the Pertinax/rubber surface of the clamping device, the door surface remains protected, whether mounted on site or in the workshop.

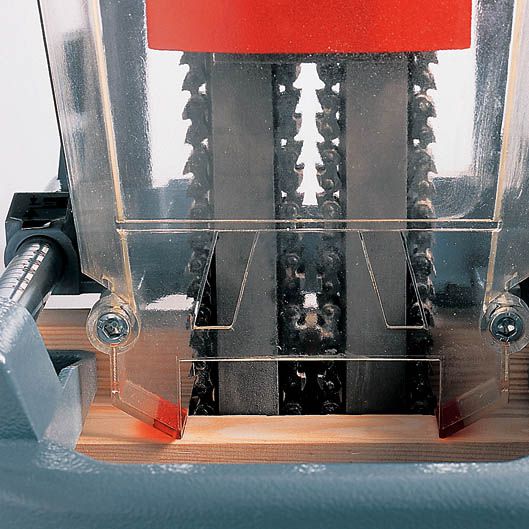

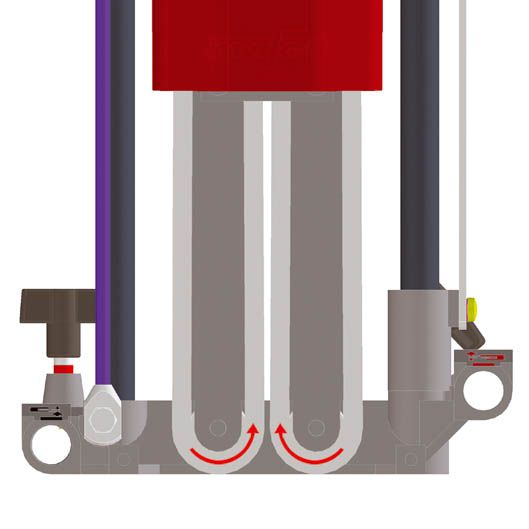

• Two special mortising chains in opposite directions - for tear-free work and optimum chip flow.
• Handy, ergonomic, compact construction – for on-site work on mounted doors.
• Two special mortising chains in opposite directions – for tear-free work and optimum chip flow.

• Cutting mortises for lock cases (installation of safety locks)
• Compatible materials include doors made of wood and wood-based materials, solid wood

• Mortising lengths of 78 mm (3 1/16 in.) and mortising widths of 16 mm (5/8 in.) are possible with one cut. Wider and longer slots can also be made to the exact millimetre by following up with the SKS 130.
• Two special mortising chains in opposite directions ensure tear-free work and optimum chip flow.
• The chain bars are maintenance-free and do not need to be re-greased.
• No longer a problem: quick, precise lock mortising is now possible on a mounted door.

• 2 Chain bars cpl. Ref. No. 091000
• 2 Sprockets Ref. No. 091002
• 1 Allen key 5 mm Ref. No. 093278
• 2 Mortising chains Ref. No. 091001
• 1 Mains cable 4 m (13.1 ft)
• Carrying Case


• Mortising depth: 5 1/8 Inch
• Mortising width: 9/16, 5/8, 11/16 Inch
• Mortising length: 3 1/16 Inch
• Stroke/working travel: 6 7/8 Inch
• Nominal No. of strokes – no load: 5770 1/min
• Nominal power input: 2.1 hp
• Weight: 23.4 lbs
• Universal motor: 240 V

Mafell SKS 130 Door Lock Mortiser Manual
