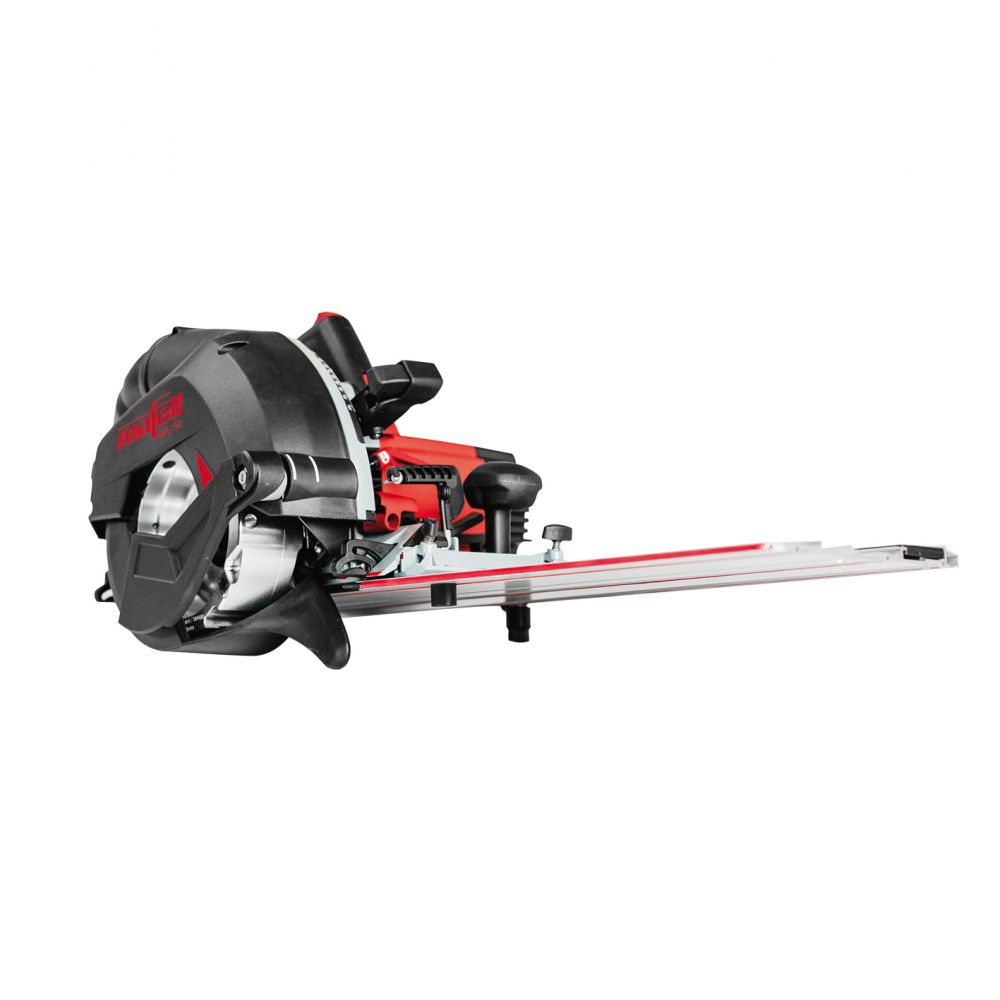

Mafell NFU 50 Groove and Birds Mouth Cutter 240V - 918721

Mafell NFU 50 240V Groove and Birds Mouth Cutter - (Ref: 918721)

• Groove cutting machine NFU 50 offers flexibility of use and is an all-rounder capable of executing an enormous range of timberconstruction tasks. An extensive range of accessories opens up further possibilities for day-to-day work.
• The design of the NFU 50 is characterized by the use of extremely rugged, high-quality and precision-made parts, including the lightweight magnesium die-cast housing and impact-resistant, fiber glass-reinforced plastic components. It also features clever technical details to help you meet the rigors of the job.

• The rotating 58 mm (2 5/16 in.) hose connector for large volumes of dust can be positioned by means of a locking function.
• The 2-in-1 functionality allows the cutting depth to be set quickly and easily.
• The hydraulic brake stops the tool within 3 seconds. The flashing LED lamp indicates to the user that the cutter is still turning.
• The NFU can be removed from the cross-cut track at the single press of a button, allowing its use either freehand or on the guide rail.
• Mafell CUprex High-Performance Motor

• Lengthwise and crosswise grooves
• Frieze blocks (with guide)
• Panels in half-timbered buildings, false floors
• Angled grooves up to 45°
• Tenons
• Compatible materials include solid wood and board materials

• 1 Cutter head Ø 163 x 60 mm (6 7/16 x 2 3/8 in.)
• 1 position indicator NFU-PA
• 1 Side fence SA 625
• 1 parallel fence
• 1 Guide track L, max. tilt range 370 mm (14 9/16 in.)
• 2 repeat fence
• 1 allen key SW 6
• 1 Screw driver Torx T 15
• 1 Mains cable 10 m (32.8 ft)

• Nominal voltage: 230 V
• Nominal power input: 2300 W
• Cutting depth at 0° without guide track: 0 - 50 mm
• Cutting depth at 0° with guide track: 0 - 44 mm
• Tilt range: 0 - 45 °
• Nominal No. of strokes – no load: 5900 1/min
• Weight with guide rail: 9,4 kg
• Dimensions (W x L x H) with guide L: 370 x 810 x 280 mm
• Cutting length with guide L 370 mm
