Mafell Cross Cutting Saw System KSS 80 EC / 370 240v, with Guide Rail - 918521

X
Product Code: MAF/918521
Brand: Mafell
Low Stock - Please Call For Availability
£1,397.83 Inc. VAT
£1,164.86 Exc. VAT
COLLECTION
DELIVERY
Please call to check stock availability for larger quantities
Qty
Mafell

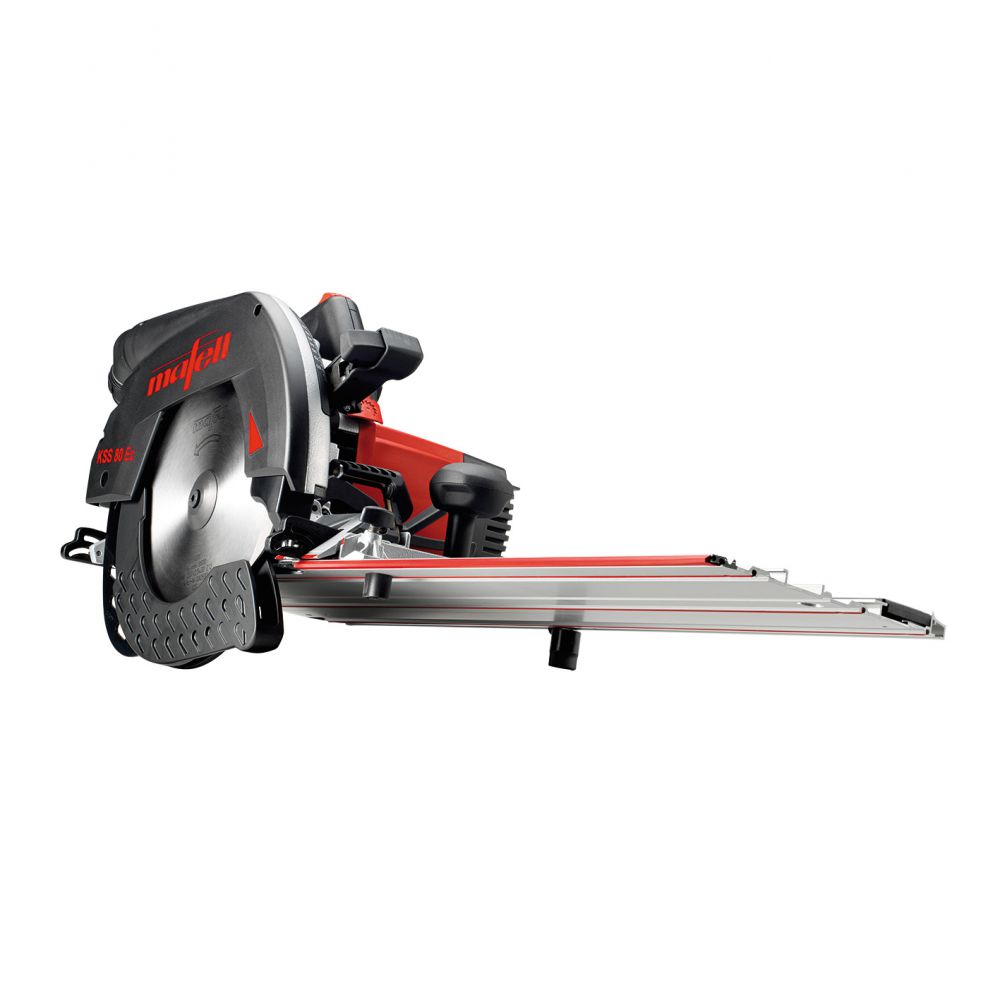

Mafell KSS 80 Ec / 370 Circular Saw System 240v - (Ref: 918521)



Key Features

  • The MAFELL KSS 80 Ec / 370 cross-cutting system combines power and precision with ease of use and ergonomic design. These properties transform the machine into an unique carpentry system.
  • Once the cut has been executed, the saw automatically returns to the starting position. The maximum cutting length, exploiting the full cutting depth, is 370 mm (14 9/16 in.).
  • Sheer power and high torque take on a whole new meaning with the new high-output CUprex motor. It offers performance-optimized digital electronics and newly developed control technology. Its speed is continuously variable according to the nature of the material and application.
  • It is no longer necessary to unscrew the riving knife – the FLIPPKEIL offers you optimum user-friendliness and safety when plunge cutting.



Strengths and benefits

  • The cutting depth is set and locked in a single, quick action.
  • The rubberized underside ensures a good grip on the work and avoids damage to the surface.
  • The quick-release catch enables you to detach the machine from the rail in a single, quick action. The saw can then be used as a separate portable circular unit with all the functionality of the MAFELL KSP series.

Applications
  • Cross cuts with guide
  • Rip cuts and cross-cutting
  • Plunge cuts and recesses
  • Compatible materials include solid wood, board materials, insulating materials, doors, worktops and internal finishing and renovation materials

Items included
  • 1 TCT saw blade 237 x 1.8/2.5 x 30 mm (9 5 /16 in.), AT, 12 teeth, for rip cuts in wood Ref. No. 092590
  • 1 Parallel guide fence Ref. 205323
  • 1 Hose connector for chip extraction Ref. No. 205290
  • 1 Allen key 5 mm Ref. No. 093034
  • 1 Guide track L, max. tilt range 370 mm (14 9/16 in.) Ref. No. 208171
  • 1 Mains cable 4 m (13.1 ft) Ref. No. 08788
  • Boxed

Technical details
  • Cutting depth at 0° with guide track 0 - 82 mm
  • Cutting depth 45° with track 0 - 55,5 mm
  • Cutting depth at 0 ° without guide track 0 - 88 mm
  • Cutting depth at 60° 0 - 38,5 mm
  • Angle cuts -60 - +50 °
  • Tilt range 0 - 60 °
  • Nominal No. of strokes – no load 2250-4400 1/min
  • Nominal power input 2300 W
  • Weight with guide rail 8,3 kg
  • Universal motor 230 V / 50 Hz



Mafell KSS 80 Ec / 370 Brochure
