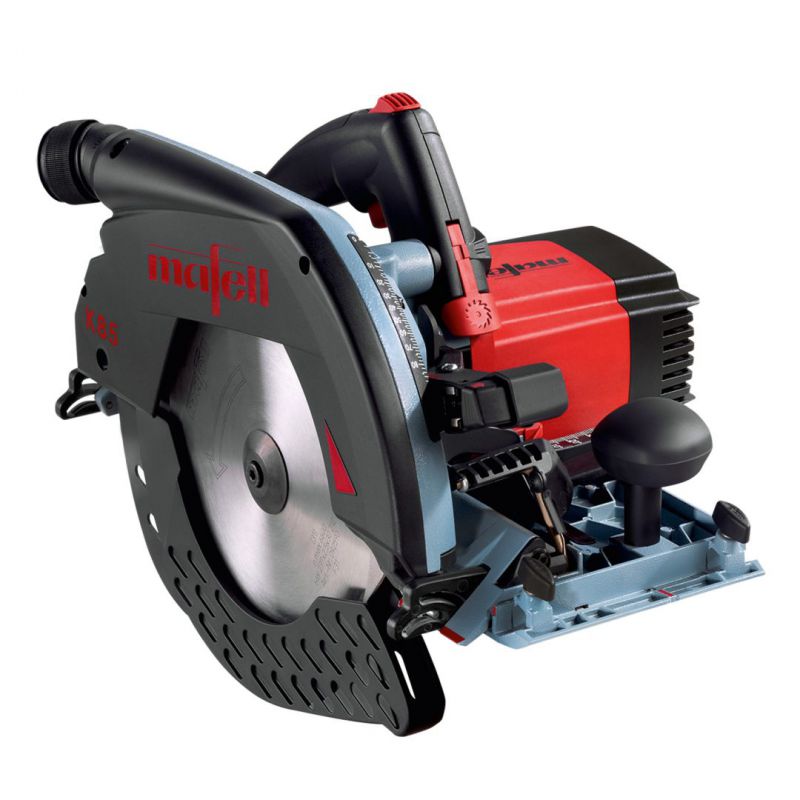

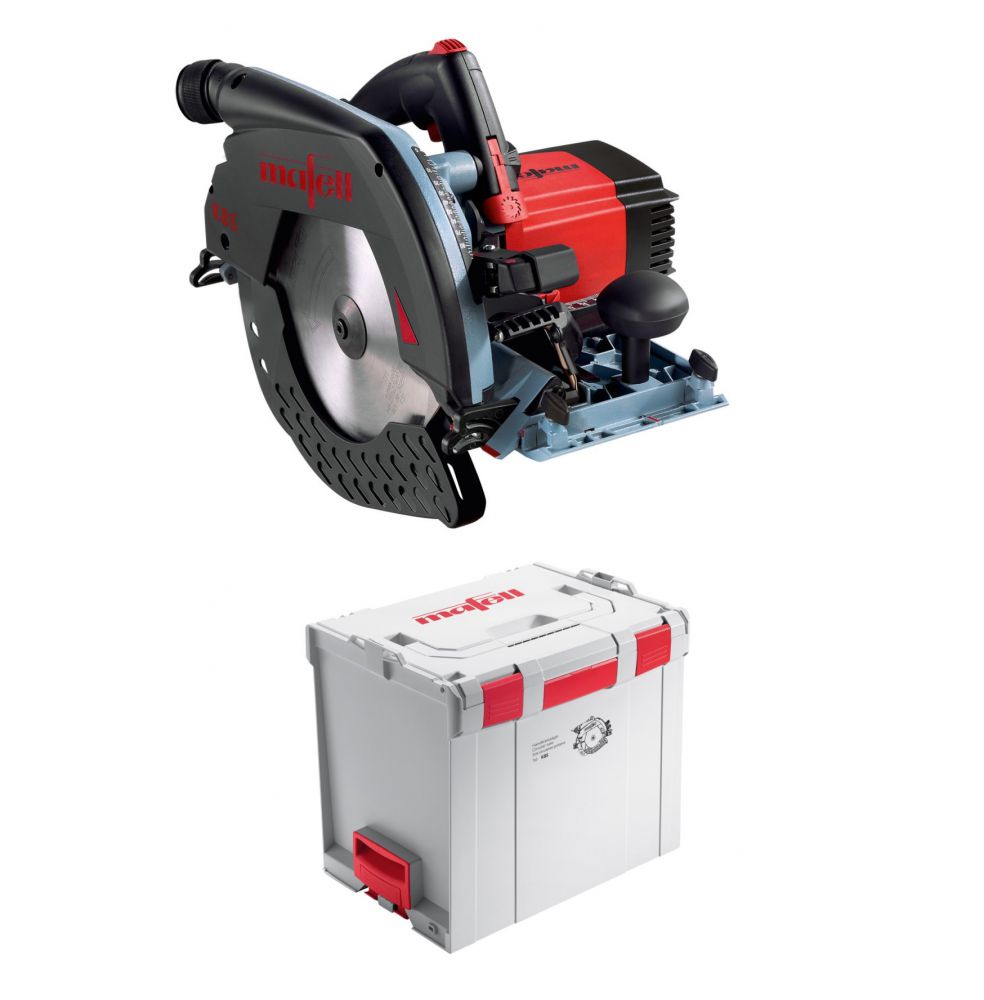

Mafell Cordless Portable Circular Saw K 85-18 PURE 18v in L-MAX - 91E303

Mafell Cordless Portable Circular Saw K 85-18 PURE in L-MAX

ref: 91E303

• The K85 / K85-18 saws are perfectly equipped to meet the future challenges of the woodworking trades. Not only in view of their exemplary material and build qualities, but also thanks to their well-conceived userfriendliness and compatible dual-battery technology.
• With the MAFELL ErgoBalanceConcept, our portable circular saws are optimized for all types of work. This not only enables precise work, but also optimum ergonomic guidance. This effectively prevents fatigue.
• Sheer power and high torque take on a whole new meaning with the high-output CUprex motor. It offers performance-optimized digital electronics and newly developed control technology. Its speed is continuously variable according to the nature of the material and application.
• It is no longer necessary to unscrew the riving knife – the FLIPPKEIL offers you optimum user-friendliness and safety when plunge cutting.

• Cross-cutting and rip cuts
• Bevel / compound miter cuts up to 60°
• Birdsmouth cuts
• Plunge cuts
• Chamfers and grooves
• Compatible materials include solid wood, board materials, insulating materials, doors, worktops and internal finishing and renovation materials

• Optimum chip ejection, especially when sawing insulating materials.
• Bright LEDs illuminate a large working area.
• Sawing to mark. The pointer adjusts automatically to the set tilt angle.
• For an enhanced cutting depth of up to 88 mm (3 7/16 in.). Even when used in conjunction with the guide rail, it achieves an exceptional depth of 82 mm (3 3/16 in.).
• The cutting depth is set and locked in a single, quick action.
• Thanks to the new tilting arrangement, reading the scale is easier than ever before.
• With the groove in the base plate, the portable circular saw can be used as a cross-cutting system. The guide device is required for this.

• Cutting depth: 0 – 88 mm
• Cutting depth: 0 – 3 7/16 in
• Cutting depth: 0 mm
• Cutting depth: 88 mm
• Cutting depth at 45°: 0 – 61,5 mm
• Cutting depth at 45°: 0 – 2 7/16 in
• Cutting depth at 60°: 0 – 44,5 mm
• Cutting depth at 60°: 0 – 1 3/4 in
• Cutting depth on rail: 0 – 82 mm
• Cutting depth on rail: 0 – 3 1/4 in
• Tilt range: 0 – 60 °
• Nominal No. of strokes – no load: 2.800 -5.200 1/min
• Nominal voltage: 2 x 18 V
• Battery: 18 V, 99 Wh, LiHD
• Weight (including battery): 8,1 kg
• Weight (including battery): 17.9 lbs
