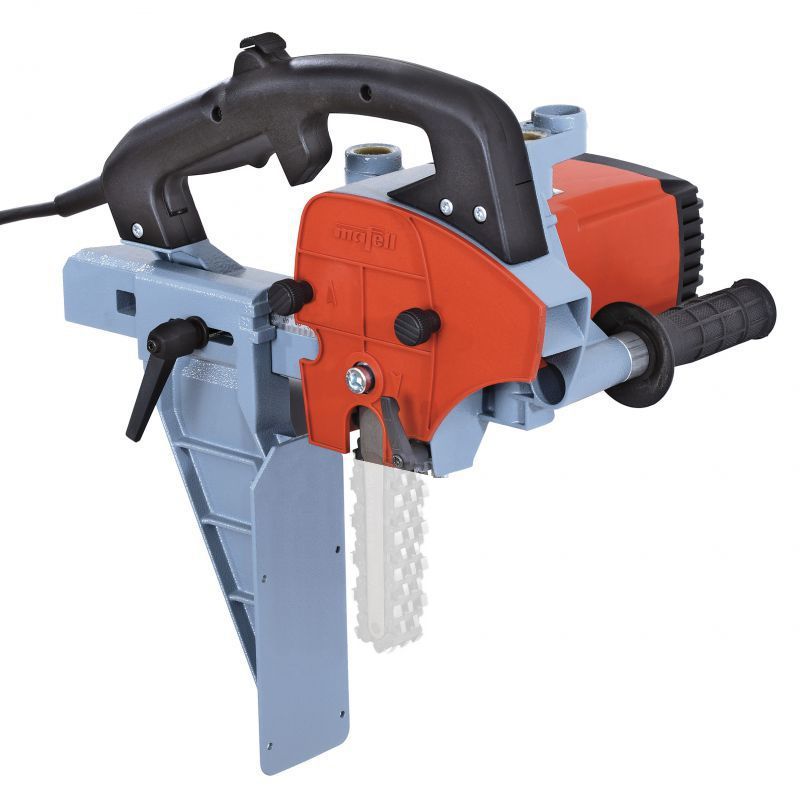

Mafell Chain Mortiser LS 103 EC 240V without Chain Set - 924260

Mafell Chain Mortiser LS 103 EC 240V without Chain Set - 924260

Replaces Mafell Chain Morticer 924221

• Unique lightweight at only 8.7 kg (19.2 lbs.). Chain mortising without the drag.
• The long guide plate has a large adjusting range and permits work on large timber workpieces.
• The tensioning system of the LS 103 Ec allows fast chain replacement. Even retightening of the chain without removing the chain guard is quick and easy.
• Optional accessories include the guide support stand for the LS 103 Ec, ideal for precise framing work, particularly indispensable for chain sets of 150 mm (5 7/8 in.)
• With the LS 103 Ec and the appropriate slot mortising attachment SG 230, SG 400 or SG 500, you can execute slots of up to 500 mm (19 11/16 in.). This is not possible with any other machine on the market!

• Ergonomic handle and switch arrangement – for safe, efficient, energy-saving work
• Low machine weight – ideal for use on construction site
• Extremely powerful motor – for high efficiency and considerable time-saving
• Mafell CUprex High-Performance Motor

• For cutting mortises
• Compatible materials include solid wood and glue-laminated timber

• 1 Stop plate Ref. No. 200954
• 1 Allen key 4 mm Ref. No. 093074
• 1 Allen key 8 mm Ref. No. 093070
• 1 Mains cable 10 m (32.8 ft) Ref. No. 087612
• 1 adapter cable UKCA

• Mortising depth 3 15/16 / 5 7/8 Inch
• Nominal No. of strokes – no load 4050 1/min
• Nominal power input 3.4 hp
• Weight 19.2 lbs
• Universal motor 230 V / 50 Hz

Mafell Chain Mortiser LS 103 EC 240V Manual
