Mafell Carpenters Beam Planer ZH 320 EC 240v - 924401
Product Code: MAF/924401
Brand: Mafell
Stock Expected
Delivery typically within 7-10 days
£5,034.86 Inc. VAT
£4,195.71 Exc. VAT
✗ COLLECTION
✓ DELIVERY

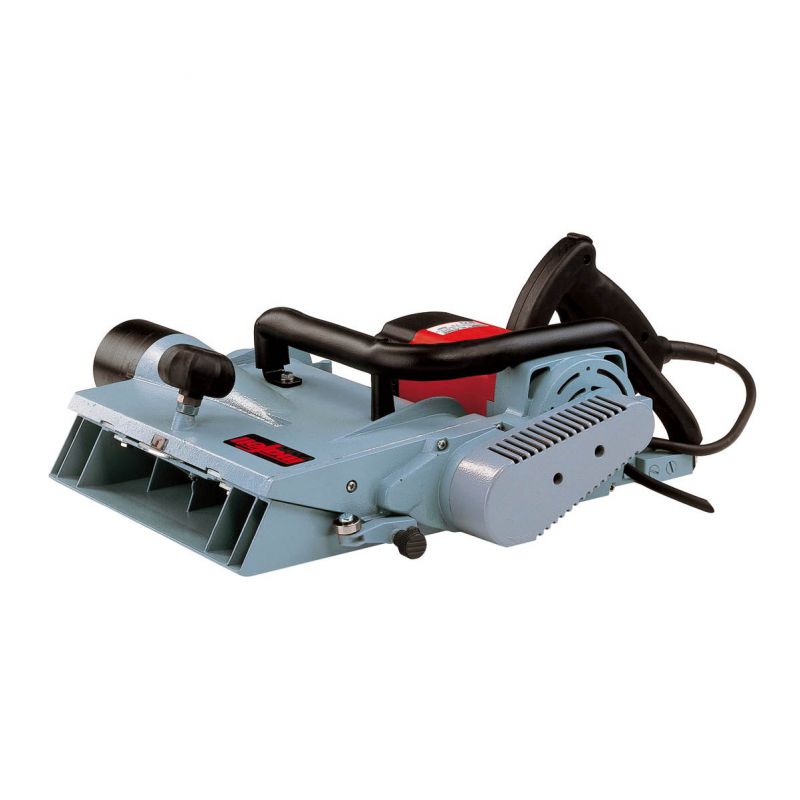

Mafell ZH 320Ec
Carpentry Planing Machine 240 V
Ref: 924401
Key Features
- Beam planer.
- The new chip ejector with excellent chip removal via enhanced air flow and new air duct makes blockages due to wet chips a thing of the past!
- Thanks to the development of the 2700 watt (3.6 hp) motor, it is now possible to achieve a 320 mm (12 5/8 in.) planing width with a light current motor.
- Due the consistent lightweight design, the solid cast construction weighs only 14 kg (30.9 lbs).
- As with most MAFELL machines, the intelligent control electronics keep watch in the background. For smooth start-up and constant speed under load, speed reduction to protect the machine without load and overload protection.
- After switching off, the highly efficient tool brake stops the cutter head in seconds. Just a detail, but important for your continued safety after planing.
- Planing width 320 mm
- Planing depth 3 mm
Strengths and benefits
- High quality standard means lower machine costs and longer service life.
- Practical lightweight, ergonomic handle ensures exemplary handling.
- With guide rollers - for maximum utilisation of the planing width.
- Disposable reversible knife system means no more time-consuming planing knife adjustment.
- Mafell CUprex High-Performance Motor
Applications
- Cutting width up to 320 mm
- Compatible materials include solid wood
Items included
- 1 Reversible knives, 1 pair, HL; Ref. No. 091791
- 1 Single-end spanner 8 mm; Ref. No. 093258
- 1 Mains cable 10 m (32.8 ft); Ref. No. 087378
- boxed
Technical details
- Planing width 320 mm
- Planing depth 0 - 3 mm
- Cutter head diameter 74 mm
- Nominal No. of strokes – no load 8500 1/min
- Nominal power input 2700 W
- Weight 14 kg
- Universal motor 230 V / 50 Hz
