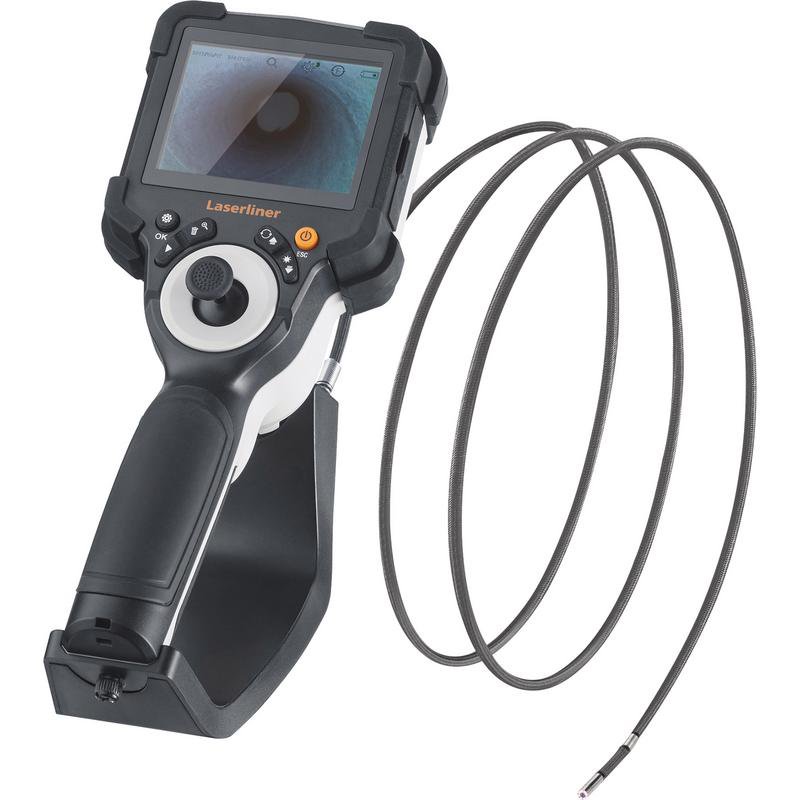

Laserliner VideoInspector 3DL Professional Video Inspection System - 082.236A

Laserliner VideoInspector 3DL Professional Video Inspection System

ref: 32061 / 082.236A

This professional video inspection system offers maximum flexibility, even on tricky jobs. It has an individually flexible and extremely small camera head which is perfect for narrow openings. The camera head can be quickly adjusted to the optimum view using the joystick on the base unit. This allows hard-to-reach places to be investigated which cannot be viewed with fixed camera systems. However, it provides very reliable, 360° inspection of, for example, pipe seals and the damage can be precisely located. The camera head and probe are waterproof and resistant to diesel, petrol, motor oil, AdBlue®, ethanol and sea water, making the device extremely versatile. Further benefits include the top quality LED object lighting and the magnetic stand for setting up the base unit. upplied with battery, network/charging device, incl. international adapter, USB cable, micro-SD card and carrying case.

• Effective problem localisation behind or in objects, walls, pipes, cavities
• upplied with battery, network/charging device, incl. international adapter, USB cable, micro-SD card and carrying case
• Joystick control of the camera head provides maximum flexibility and optimum viewing
• Save time setting up on site with rapid adjustment of the required viewing angel
• Perfect for hard to reach locations which cannot be viewed with fixed camera systems
• Reliable 360° inspection of pipe seals
• Compact camera head ideal for inspecting small openings
• Waterproof camera head and probe: also resistant to diesel, petrol, motor oil, AdBlue®, ethanol and sea water (salinity 28%)
• Powerful object lighting thanks to 8 high-performance LEDs
• User has both hands free to work thanks to the magnetic stands on the camera unit

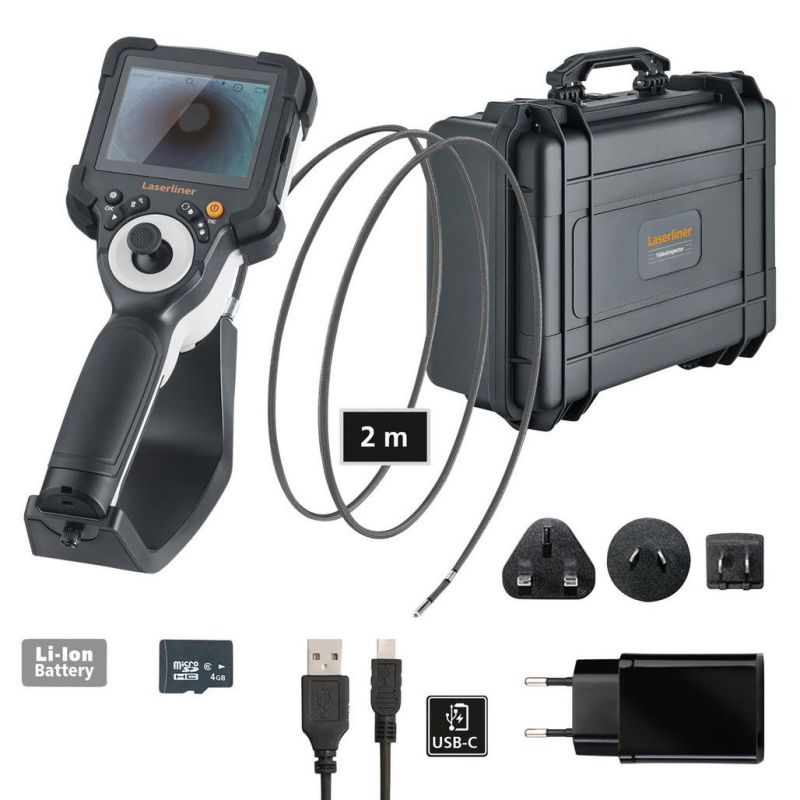

• 1 x Laserliner 082.236A VideoInspector 3DL Professional Video Inspection System
• 1 x InspectorCamera 3DL
• 1 x Integrated Li-ion battery pack
• 1 x Network/charging device incl. international adapter
• 1 x USB cable
• 1 x Micro SD card
• 1 x Carrying case

• Image/video recording: Yes
• Digital zoom: Yes
• Time stamp: Yes
• Mains operation: Yes
• Object illumination: Yes
• Controllable camera head: Yes
• Live display: Yes
• Image/video playback: Yes
• Image alignment: Yes
• Data transfer: Yes
• Diameter Camera Head: 6 mm
• Camera Resolution: 1280 x 720 pixels
• Field of View (FOV): 78°
• Depth of Focus (DOF): 3 8 cm
• Screen Type: 3,5" TFT display
• Display Resolution: 640 x 480 pixels
• Image Format: JPEG
• Length of Probe: 2 m
• Illumination: 4 brightness levels
• Digital Zoom: 2x digital zoom in 10% increments
• Memory: Micro-SD memory card up to 32 GB
• Port: USB
• Dimensions (W x H x D): 108 mm x 260 mm x 110 mm
• Weight: 750g (incl. Akkupack)
