Laserliner ThermoVisualizer Pro Thermal Imaging Camera - 082.078A

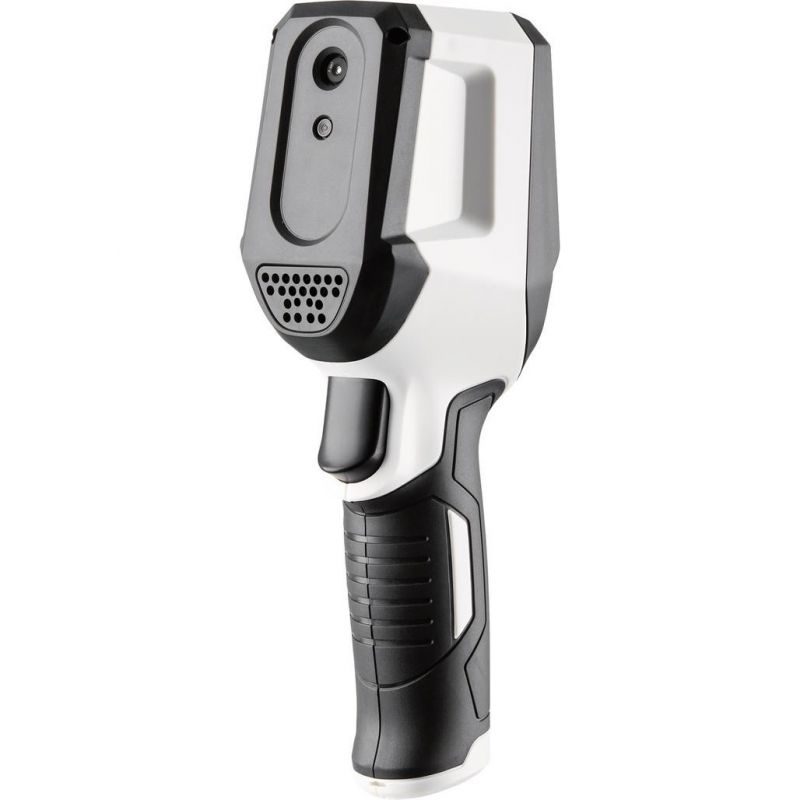

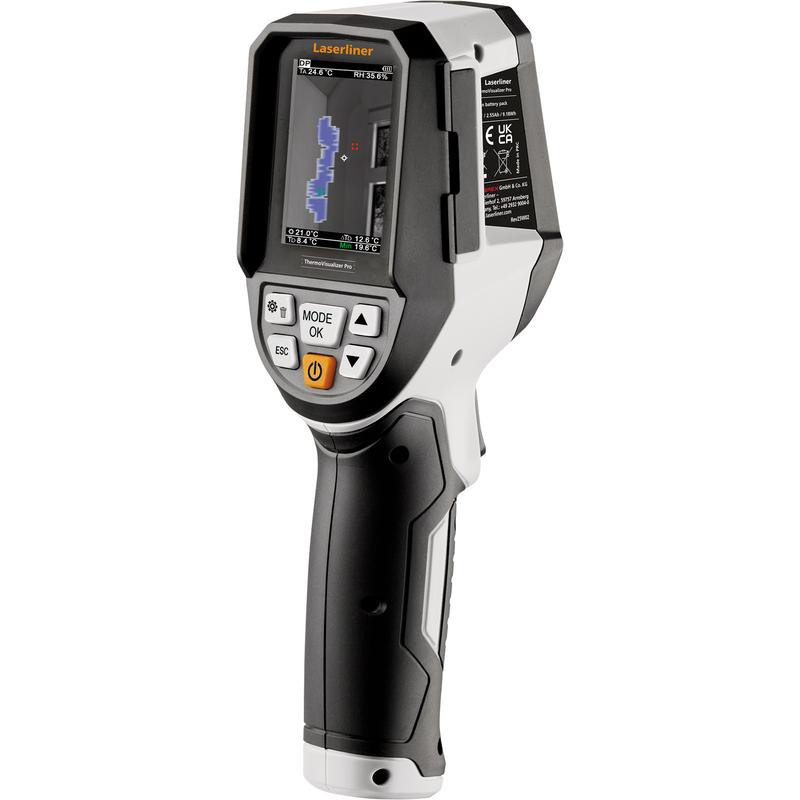

Laserliner ThermoVisualizer Pro Thermal Imaging Camera

ref: 082.078A / 31986

This innovative thermal camera determines surface temperatures, relative humidity, ambient temperature and dew point temperature. It reliably visualises temperature curves, thermal bridges and condensation. A fusion from the thermal camera, digital camera and hydrometer forms the visual dew point function. It generates reliable thermal images with precise marking of surfaces that have reached or fallen below the dew point, ideal for critical interior space inspections. In addition to building inspections, the many possible uses include working on electrical systems, machines, heating and ventilation systems as well as locating heat sources or cold spots. Supplied with battery pack, USB-C-cable and softbag.

• Reliable visualisation of temperature curves, energy loss, thermal bridges and electrical and mechanical overloads
• Supplied with battery pack, USB-C-cable and softbag
• Determining surface temperatures, relative humidity, ambient temperature and dew point temperature
• Flexible display with infrared image, digital image and mix image
• Visual dew point function for precise marking of surfaces that have reached or fallen below the dew point
• Perfect for critical interior space inspections, for example to detect condensation and with a clear thermal bridge warning
• Versatile: Building inspections, electrical systems, machines, heating and ventilation engineering, locating heat sources and cold spots
• Device fits well in the hand due to compact ergonomic design
• Suitable for fitting on tripods with a 1/4” thread
• IP 54: dust and splash proofing

• 1 x Laserliner 082.078A ThermoVisualizer Pro Thermal Imaging Camera
• 1 x Micro SD card
• 1 x Integrated Li-ion battery pack
• 1 x USB-C-cable
• 1 x Softbag

• Image recording: Yes
• Data transfer: Yes
• Digital camera: Yes
• Time stamp: Yes
• Adjustable emissions level: Yes
• Humidity: Yes
• Min/Max: Yes
• MIX image: Yes
• Ambient temperature: Yes
• Thermal image: Yes
• Thermal bridge warning :Yes
• Dew point temperature: Yes
• Mains operation: Yes
• Screen Type: 2,4" Colour TFT
• Sensor Type: uncooled microbolometer
• Display Resolution: 320 x 240 pixels
• Image Frequency: 9 Hz
• Thermal Sensitivity (NETD): 60 mK @25°C
• Measuring Range Infrared Temperature: -20°C 150°C, 0°C 400°C
• Power Supply: Li-ion battery pack 3.6V / 2.55Ah / 9.18Wh
• Operating Time: approx. 4 hours
