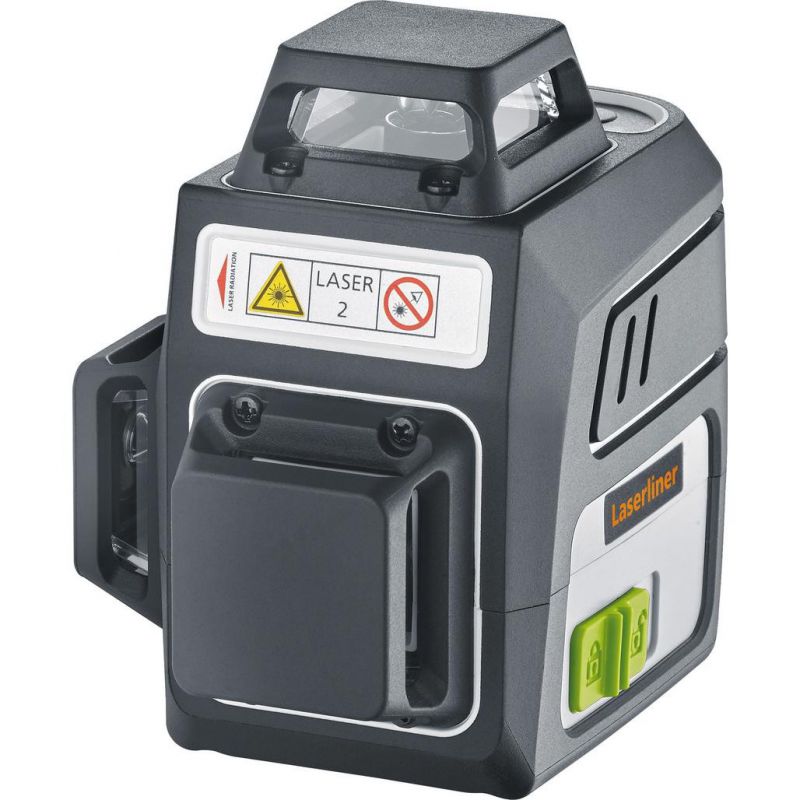

Laserliner PocketPlane-Laser 3G Three-Dimensional Laser - 036.700A

Laserliner PocketPlane-Laser 3G Three-Dimensional Laser

ref: 036.700A / 32164

This three-dimensional, practical and highly visible green laser projects one horizontal and two vertical laser circles for precise alignment of objects. The laser crosses form a plumb function for working simultaneously on floors and ceilings. A manual slope mode is available for creating gradients. This laser is a particularly useful tool for demanding projects due its the comprehensive range of accessories. The PocketWallHolder is a multi-functional, height-adjustable, magnetic bracket for attaching the laser to walls, metal items and tripods with a 1/4” or 5/8” thread. Supplied with battery pack.

• Three-dimensional laser with a horizontal and two vertical 360° laser circles
• Supplied with battery pack
• Accurate horizontal and vertical alignment of objects
• Good visibility through green laser technology
• Easy alignment of slopes with manual tilt function
• Plumb function for synchronous working on floor and ceiling

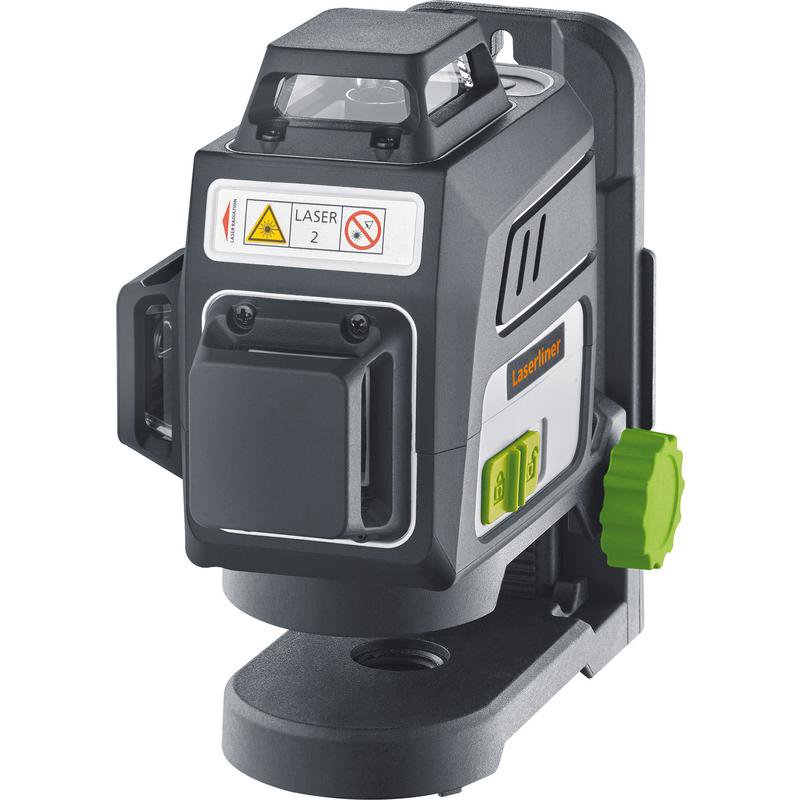

• Height-adjustable, magnetic, multi-function bracket with 1/4” and 5/8” thread for attaching to walls, metal items and tripods
• Magnetic target plate with stand, nail hole and dual scale – perfect for working close to ceilings
• Laser enhancement glasses for optimum visibility of laser lines with the human eye
• Time-saving automatic alignment

• 1 x Laserliner 036.700A PocketPlane-Laser 3G Three-Dimensional Laser
• 1 x PocketWallHolder
• 1 x Magnetic target plate green
• 1 x Laser enhancement glasses
• 1 x Li-ion battery pack
• 1 x Network/charging device incl. international adapter
• 1 x USB-C-cable
• 1 x Carrying case

• Horizontal/vertical levelling: Yes
• Manual slope function: Yes
• Battery and mains operation: Yes
• Hand receiver mode: Yes
• Self-Levelling Range: ± 3.5° (horizontal)
• Accuracy: ±0.3 mm/m
• Levelling: automatic
• Visibility (Typical)*: 30 m
• Laser Wavelength: 515 nm
• Laser Class: 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
• Operating Time: with 3 laser levels: approx. 9 hours
• Dimensions (W x H x D): 104 mm x 97 mm x 76 mm
• Weight: 388g (incl. Akkupack)
