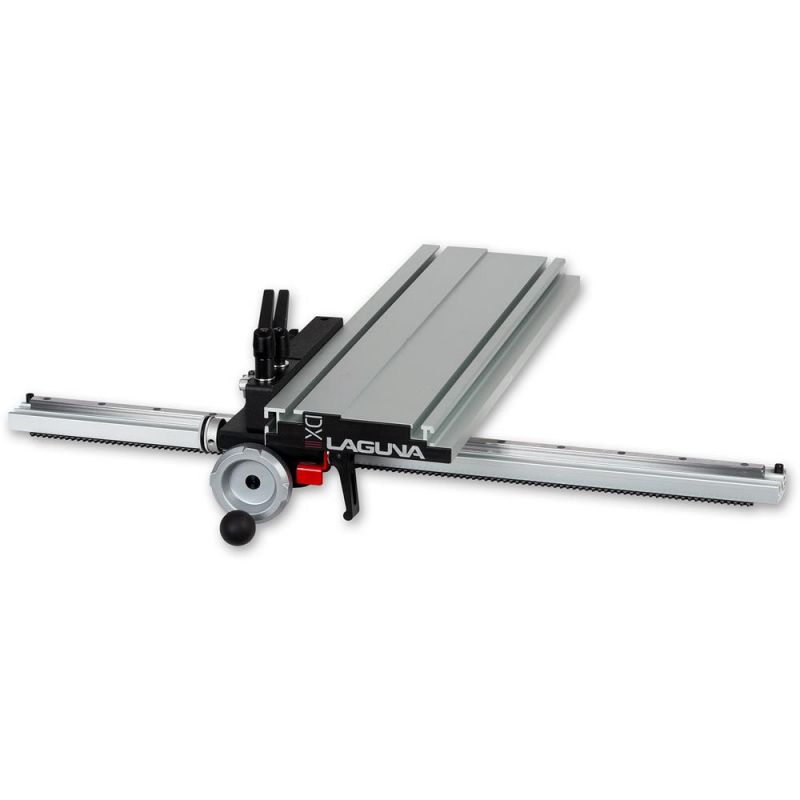

Laguna DX111 DriftMaster Bandsaw Fence System

Laguna DX111 DriftMaster Bandsaw Fence System

ref: 112933

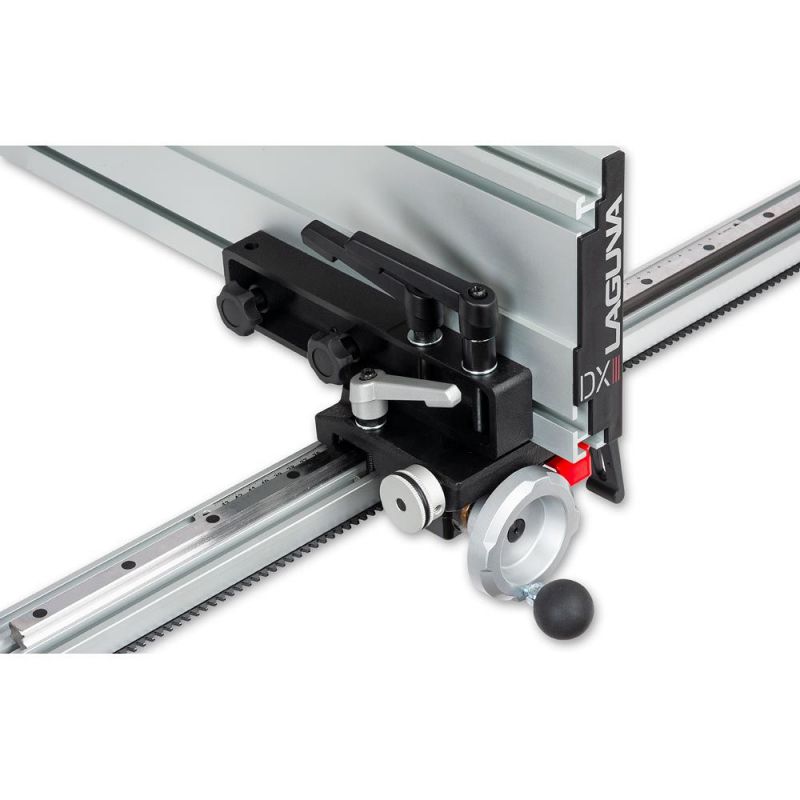

Introducing a one-of-a-kind fence system, the all-new DX3 DriftMaster Fence. The DX3 comes equipped with a robust Linear Motion Guide System, which is maneuvered by a Precision Handwheel, allowing for unparalleled accuracy. In addition, the DX3’s micro adjustment knob makes it easier, quicker, and requires no tools to set the fence drift adjustment. Crafted for professionals, this multi-mode fence redefines the resawing experience. Unleash innovation and embrace precision with the DX3 DriftMaster.

• The world's only Multi-Mode Precision Bandsaw Fence
• Tool-free Drift Adjustment for exacting cuts
• Fits most bandsaws from 14"-18"
• Universal mounting bracket makes installation quick and easy
• Dual mode functionality: Precision handwheel movements for repeated and incremental cuts. Manual movements with lock
• Hi/Low resaw fence retains accuracy when changing from high to low position

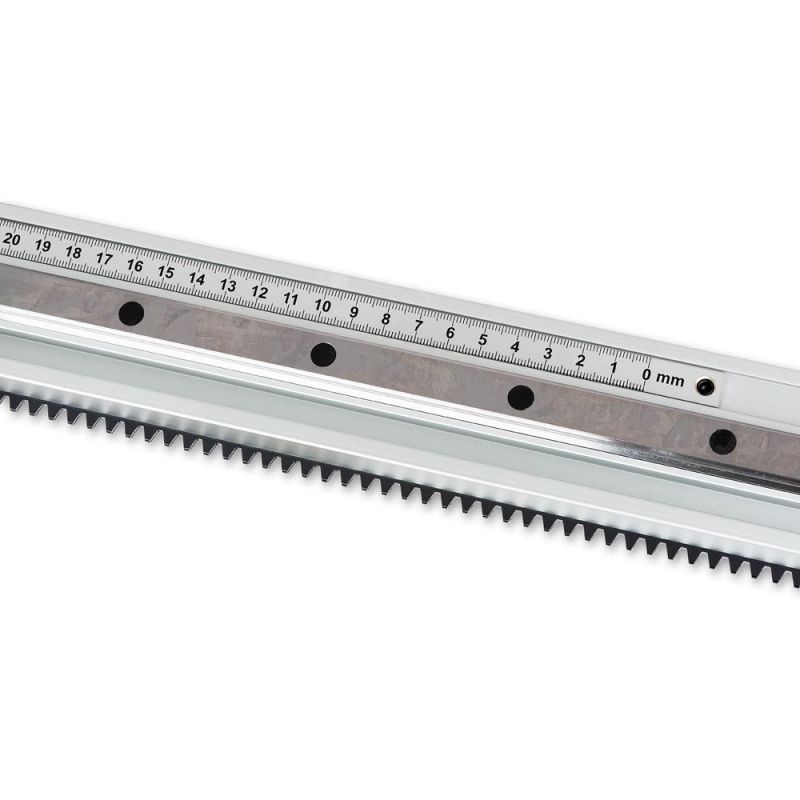

• Linear guide rail provides smooth, stable operation
• Turns bandsaws into a precision cutting machine
• Reversable manual tape scale included (In/mm)
• Color coded handles: Red - mode selection, Black - Fence lock, Grey - manual lock.

• Fence Height 7-1/4” at high position 43/64” at low position
• Fence Length 22-3/4”
• Full Fence Travel 26” in total potential. The actual travel of the fence at left and right of the blade depends on bandsaw design.
• Fence Travel per handle rotation 1/4” (6.28mm)
• Fence Tilt 10° left to 10° right
• Net Weight 27 lbs. (12.3 kg.)
• Gross Weight 30.4 lbs. (13.8 kg.)

Laguna DXIII Manual
