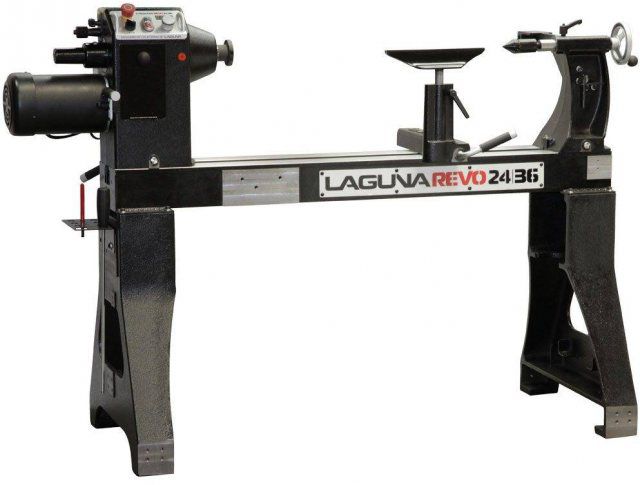

Laguna 24/36 REVO Woodturning Lathe - Laguna Variable Speed Wood Lathe
Product Code: LG/24/36REVO/111778
Brand: Laguna
Stock Available
Delivery typically 3-4 days
£3,921.98 Inc. VAT
£3,268.32 Exc. VAT
Laguna 2436 REVO Woodturning Lathe - Laguna Variable Speed Wood Lathe
Key Features

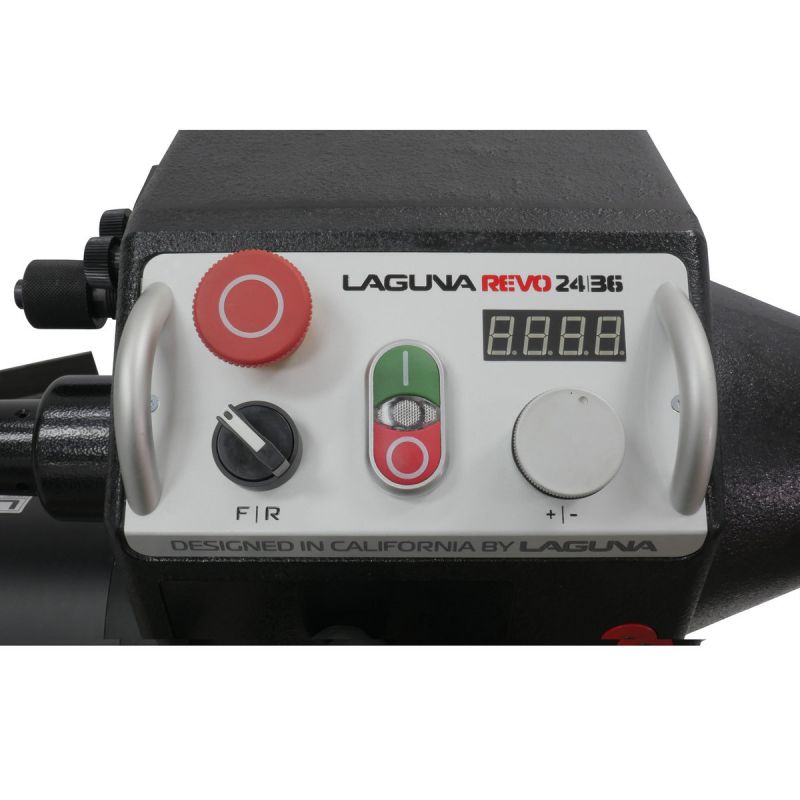

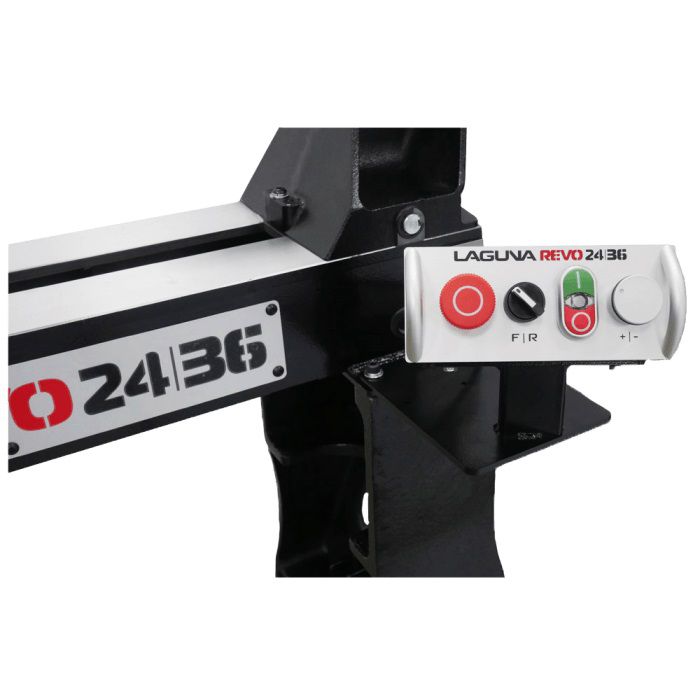

- The first feature that will catch your attention is undoubtedly the ergonomic angled control panel made from anodized aluminum.
- The blue hue of the DRO along with the beautiful knurled control knob fitted with a rubber grip signals this is no ordinary lathe.
- The bed is made from steel which allows the cast iron headstock to travel incredibly smoothly.
- Steel is the preferred material due to its well known longevity & strength.
- Electronic variable speed is obtained via a VFD that converts 1 phase input to 3 phase output, so even at low settings you will get an incredible amount of torque.
- The DRO gives you an accurate RPM readout at all times any fine adjustments are made electronically.
- Changing from high to low settings is made easy by using the quick release handle.

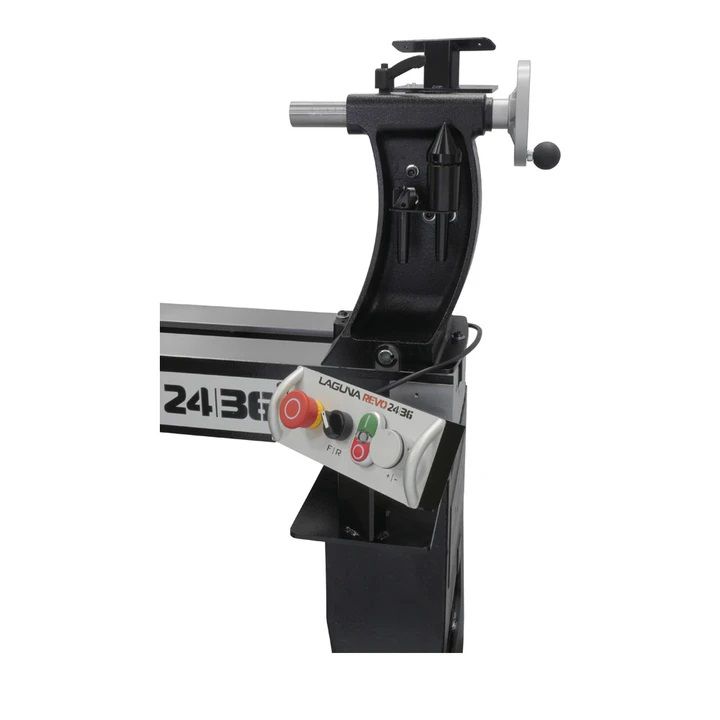

- The headstock & tailstock lock handles are situated on the back to eliminate any interruptions to your work flow.
- Ergonomically designed handles use a cam lock resulting in a firm feel with no deflection.
Specification

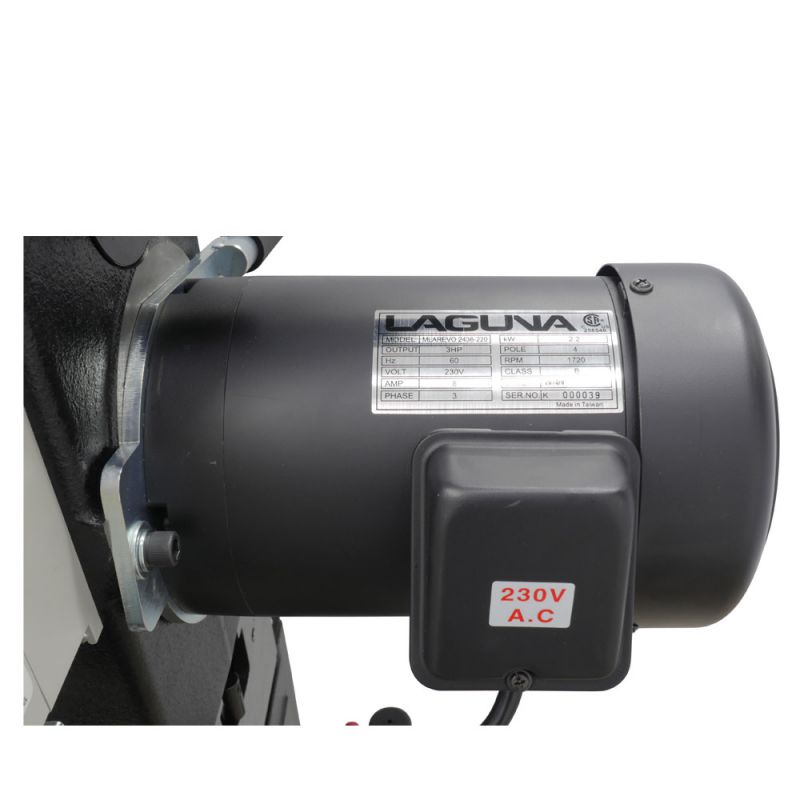

- Motor: Induction, 1725RPM, 3HP, 220V
- Voltage: 220V, 50hz, single phase input, 3 phase output
- Recommended breaker size: 15 amp
- Swing over bed: 609mm (24″)
- Swing over banjo: 501mm (19 3/4″)
- Outboard swing max: 965mm (38″)
- Distance between center: 914mm (36″)
- Floor to spindle center: 1130mm (44 1/2″)
- Floor to bed height: 826mm (32 1/2″) with pads
- Floor space: 1524mm, 660mm, 1327mm (60″, 26″, 52 1/4″)

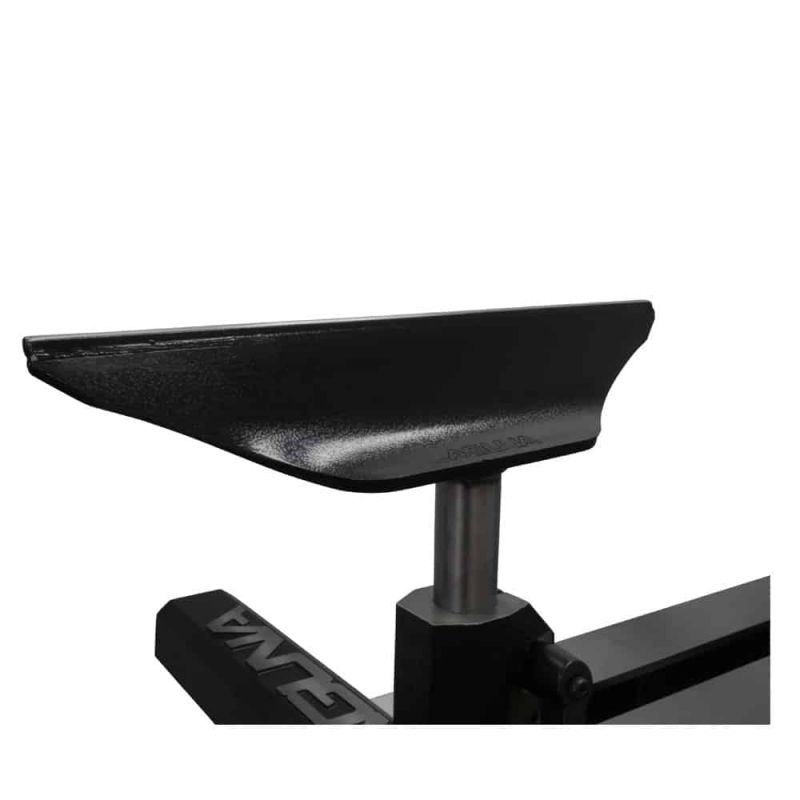

- Tool rest: 305mm (12″)
- Speed range high: 135-3500 RPM
- Speed range low: 50 – 1300 RPM
- VFD: Delta S1 variable frequency drive

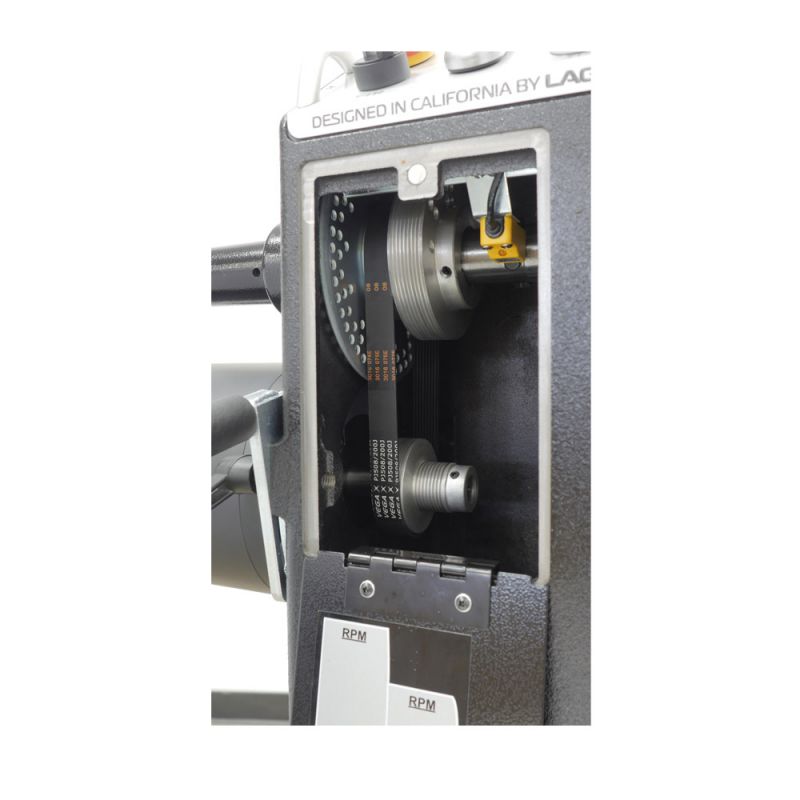

- Drive belt: Poly-groove drive belt with easy access
- Spindle size: M33 x 3.5mm
- Spindle lock: Spring loaded

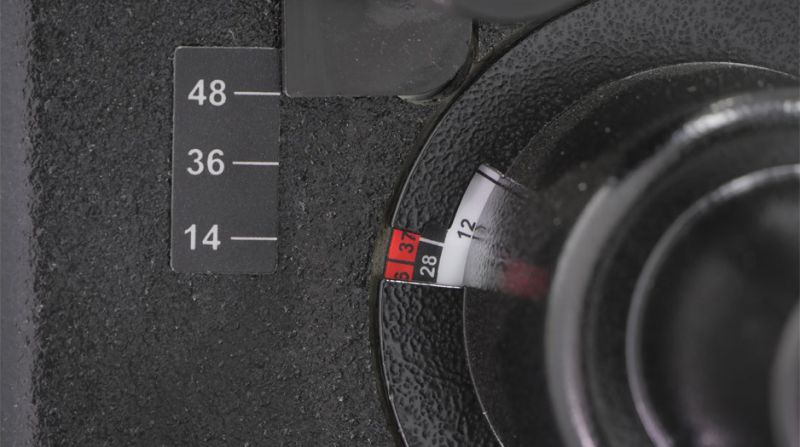

- Spindle index: 14/.36/48 positions with lock
- Headstock & tailstock bore: 9.5mm dia (3/8″ dia)

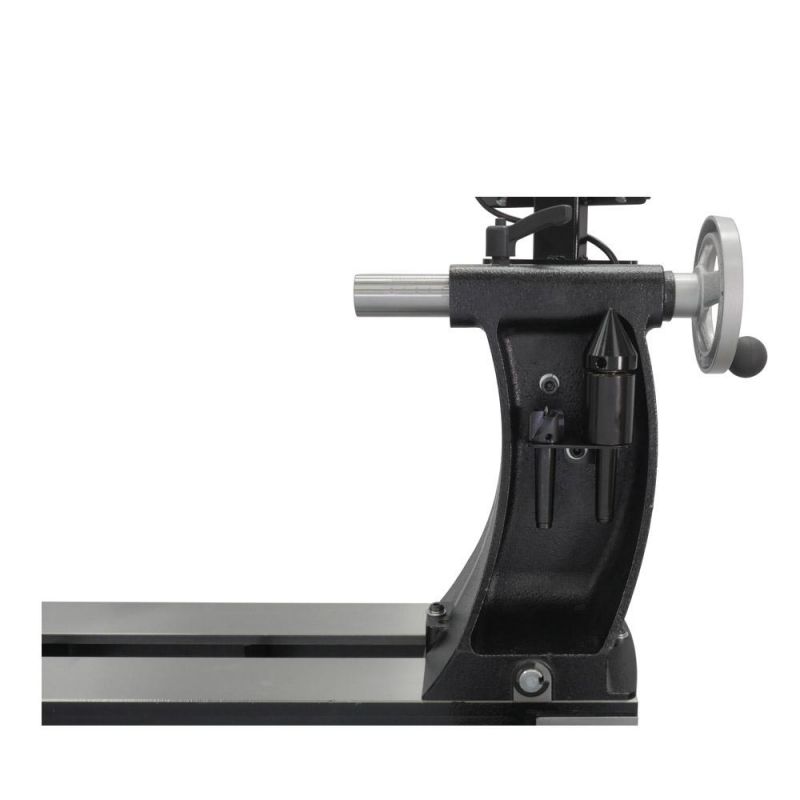

- Tailstock travel: 114mm (4 1/2″)
- Tailstock removal: Self-ejecting
- Tailstock tapers: MT 2
- Face plate: 76mm diameter (3″)
- Bed material: Steel
- Weight: 242kg/255kg
