Laguna 1836 REVO Woodturning Lathe - Laguna Variable Speed Wood Lathe

X
Product Code: LG/1836REVO
Brand: Laguna
Low Stock - Please Call For Availability
Was £3,199.00 Inc. VAT
Now £2,899.00!
£2,415.83 Exc. VAT
COLLECTION
DELIVERY
Please call to check stock availability for larger quantities
Qty
Laguna

Laguna 1836 REVO Woodturning Lathe - Laguna Variable Speed Wood Lathe

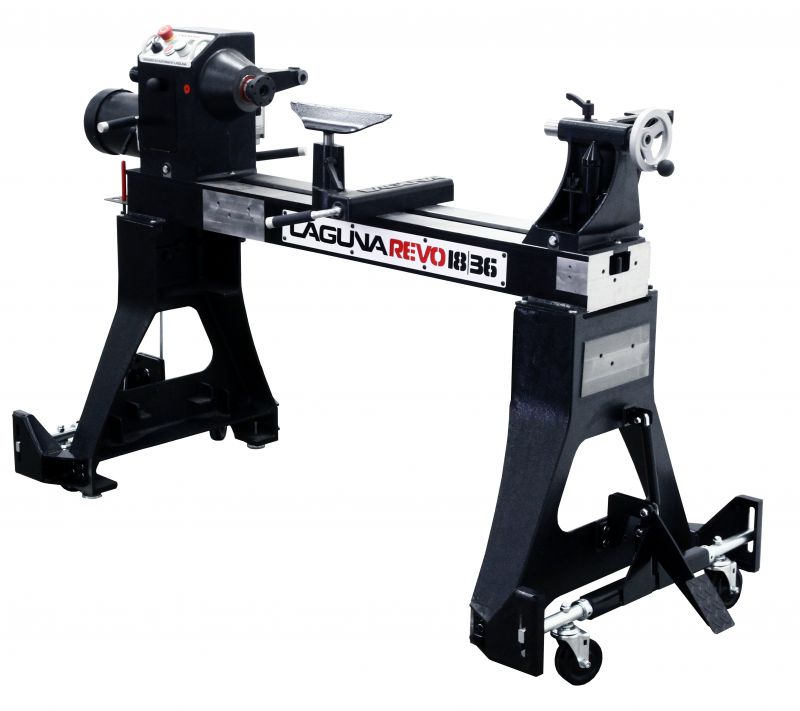

(Wheel kit shown is an optional extra and NOT included with this lathe)



Key Features

  • Everything about this lathe is designed for the user. Strength, stability and control are at the heart throughout to satisfy true specialists and woodturning professionals.
  • One of the striking features of the lathe is an ergonomic panel with controls mounted in an anodized aluminium plate. The speed is smoothly controlled with a tactile rubber augmented knurled aluminium dial. Add the blue hue of the speed indicator and this machine stands out from the competition.
  • The solid bed, with an impressive width of 208mm, is made of high-quality steel ASTM A36 (tougher than cast iron), and is precisely ground providing smooth travel of the headstock, tailstock and toolrest. The spindle is run by a highly efficient induction motor with a VFD frequency convertor for high torque even at lower speeds. The speed range can be changed with a clever one-lever mechanism.
  • The headstock, tailstock and legs of the lathe are made from cast-iron securing minimum vibration and high comfort for turning of oversized pieces. Tailstock and Headstock cam lock levers are placed on the back of the machine and will not get in the way. All cam lock levers have soft grip handles and a long length resulting in a firm feel with no deflection.
  • Supplied with 2MT four prong drive centre, 2MT revolving tail centre, 75mm (3") diameter faceplate, knock-out bar, onboard storage for accessories, 1.8m power cable with UK 3 pin plug.



Specification

  • Motor (Induction): 1500w (2hp) 3 phase output
  • Power Supply: 220-240v / 50Hz / 1 phase
  • Recommended Breaker: 16 Amp
  • Swing over bed: 450mm (18")
  • Swing over Banjo: 340mm (13.5”)
  • Swing with optional Expansion Set: 800mm (32")
  • Distance between centers: 910mm (36”)
  • Between centers with optional Expansion Set: 1410mm (56”)
  • Speed Range - Low: 50-1300 RPM
  • Speed Range - High: 135-3500 RPM
  • Drive Belt: Poly-Groove Drive Belt with quick change

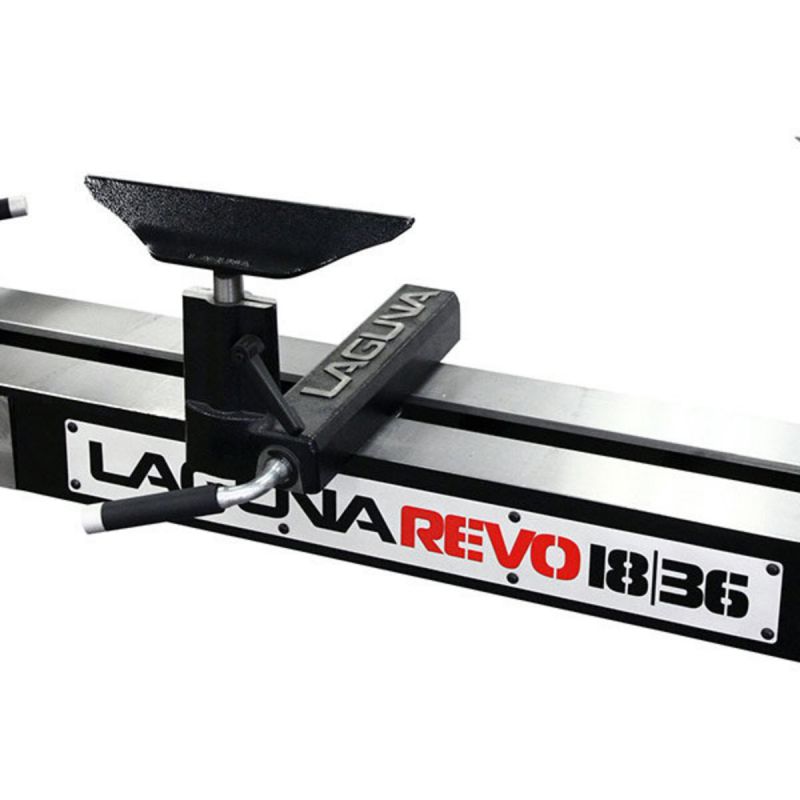

  • Toolrest Length: 305mm (12")
  • Tool Rest Stem Diameter: 25.4mm (1”)
  • Tool Rest Leading Edge: Hardened Steel
  • Headstock Spindle Taper: 2MT
  • Headstock Spindle Thread: M33 x 3.5mm (Right Hand)
  • Headstock Spindle Through Bore: 9.5mm (3/8”)
  • Headstock Spindle Indexing: 14/36/48 positions with Lock
  • Headstock Front Bearing: TPI Taiwan 6207LLU
  • Headstock Rear Bearing: TPI Taiwan 6205LLU
  • Tailstock Taper: 2MT
  • Tailstock Quill Travel: 114mm (4.5”) Self Ejecting
  • Tailstock Through Bore: 9.5mm (3/8”)
  • Faceplate Diameter: 75mm
  • Floor to Spindle Centre: 1054mm (41.5")
  • Assembled Dimensions (WxDxH): 1524mm x 660mm x 1194mm
  • Shipping Dimensions (WxDxH): 1540mm x 690mm x 710cm
  • Weight (Net /Ship): 194Kg / 206Kg
  • Manufacturers warranty: 1 Year
  • Assembly time: 2 Hours (Needs 2 people)




Optional Accessories:

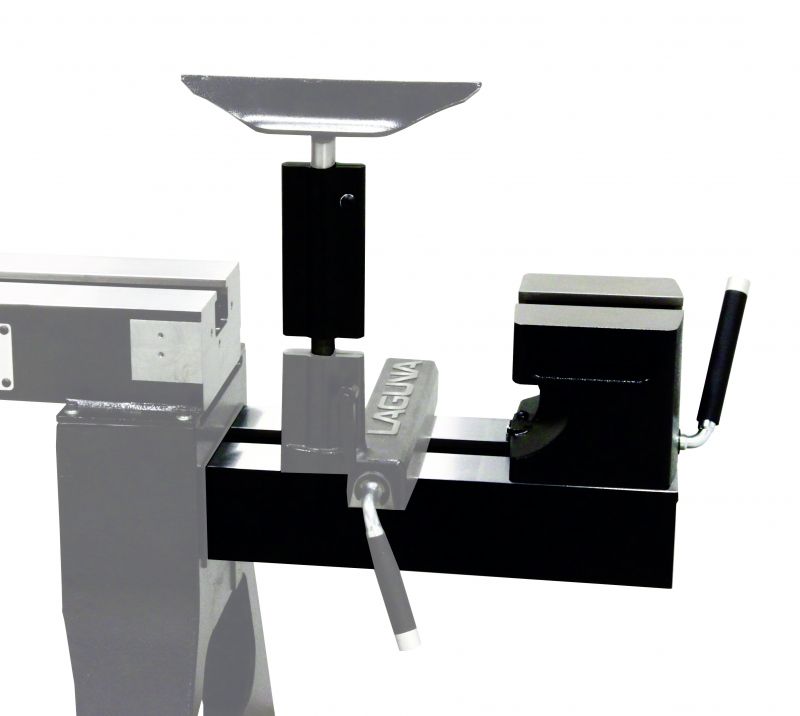

  • Expansion Set: The 500mm (20”) extension bed fitted to the end of the main bed, increases the maximum spindle capacity to a huge 1410mm (56"). A riser block allows the tailstock to travel out to this full length. By sliding the headstock along to the end of the main bed, the bowl turning capacity is also increased to an impressive 800mm (32"). A tool rest post extension completes the set.
  • Swing Away Tailstock: A fast and convenient way to move the tailstock out of the way is this hinged extension bed, which can quickly be unclipped and swings the bed and tailstock away.
  • Heavy Duty Wheel Kit: Attaches to each end of the floorstand. With foot lever action, assisted by a gas strut to take the weight, moving this heavy lathe around is a breeze.
  • Comparitor: The comparitor set is a method of mounting a spindle to be copied so that it sits at eye level. The work piece can then be easily compared to the template.
  • Halogen Flood Light: Dust proof ribbed aluminium case, swivels 320 degrees and provides bright glare free illumination on the work piece.
