Laguna 16-32DS Drum Sander Package - c/w tables, abrasives and cleaning stick

Product Code: LG/16-32PACK-PK

Brand: Laguna

Low Stock - Please Call For Availability

Was £1,899.00 Inc. VAT

Now £1,699.00!

£1,415.83 Exc. VAT

COLLECTION

DELIVERY

Please call to check stock availability for larger quantities

Check out our Fair Deal on Delivery Promise

Laguna 16-32 Supermax Drum Sander Package - Ref: LG/16/32PACK

Key Features

The 16-32 Drum Sander is the newest member of the SuperMax Tools drum sander family which was designed with new features to improve productivity.
We’ve addressed issues common with other drum sanders by engineering features that are exclusive to our 16-32 machines. No other drum sander on the market has these features!

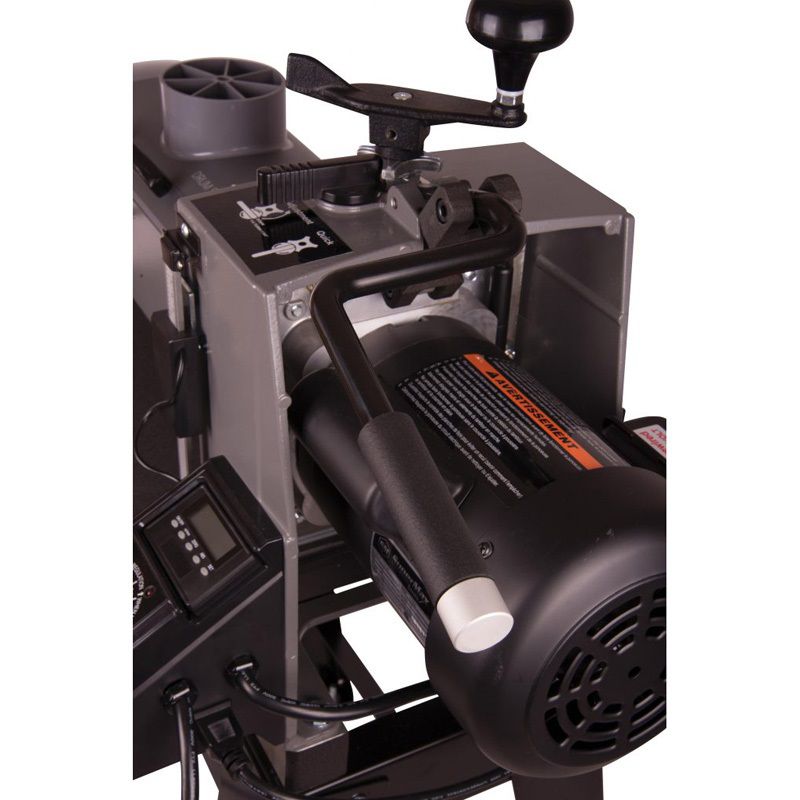

Patented “Quick Adjust Lever” which allows height adjustments from 0”-3” with one pull of a lever versus 48 revolutions of a hand wheel greatly reducing set-up time and increases productivity.

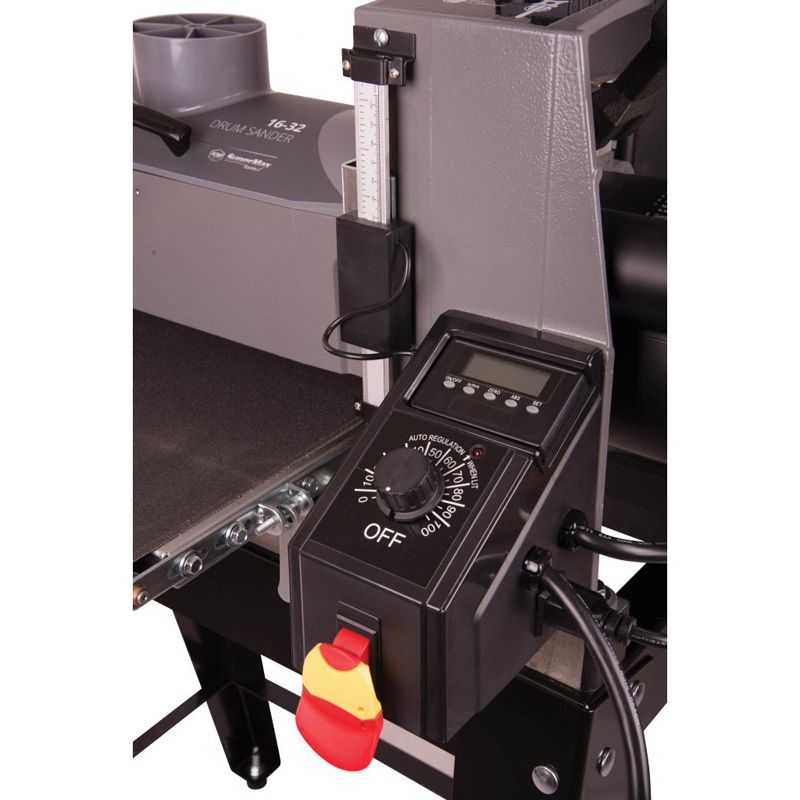

Includes built-in Digital Read Out which helps maintain consistent thicknesses to increase accuracy and quality.

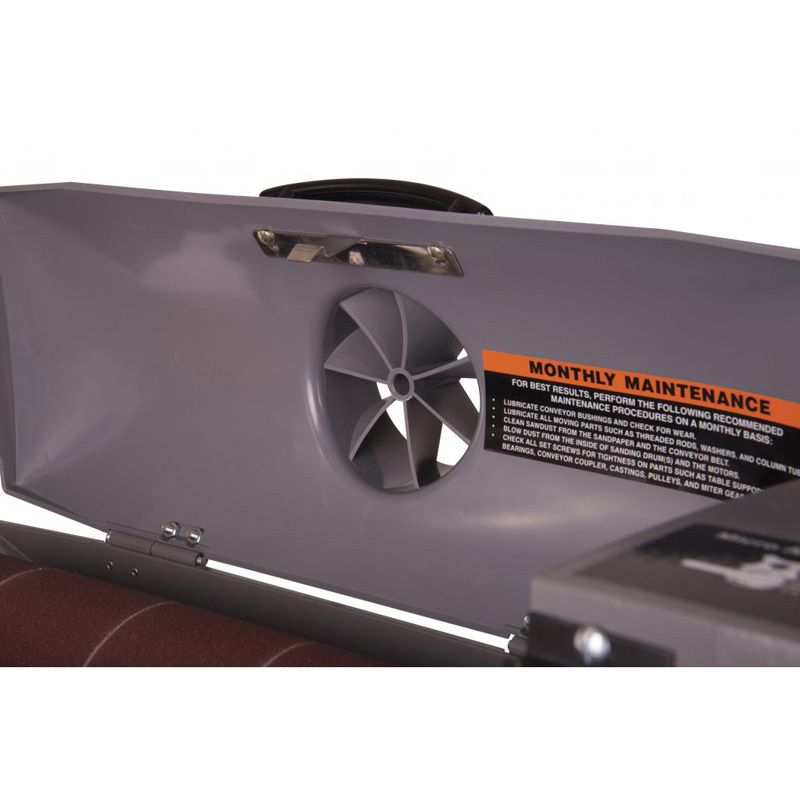

A newly designed Turbo Vented Dust Port increases CFM air-flow to dust collectors by 15%.
Simple alignment feature : Just one nut adjusts the conveyor to parallel the sanding head, making aligning the conveyor to the sanding head fast and easy.
Indexed alignment setting : The fast lever is an indexed alignment setting for narrow and wide stock. When sanding stock wider than 16”, the index lever will properly adjust the conveyor for flawless wide sanding.
Drum will never go “out of alignment” The drum carriage is bolted to the base, preventing any movement or alignment issues. INTELLISAND Technology

Items included

1 X Laguna 16-32 Supermax Drum Sander 240v on stand
1 X LG/BC01 Laguna Sanding Drum Cleaning Stick
1 X Laguna 16DS4xMIXG Pre-cut abrasive wraps for Laguna 16-32 Drum Sander 1 x 36g, 2x 80g,1 x 120g

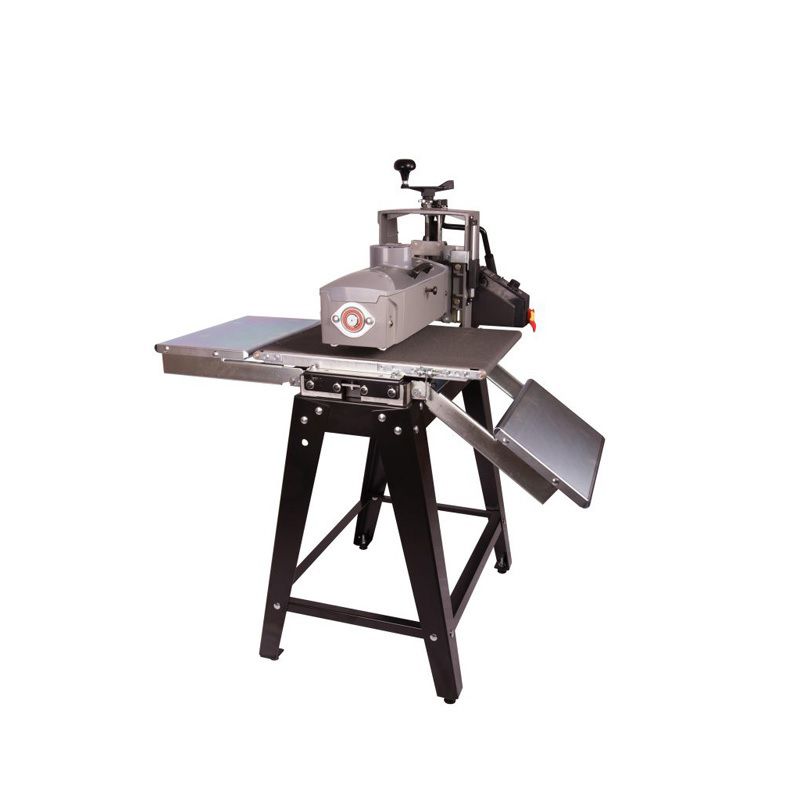

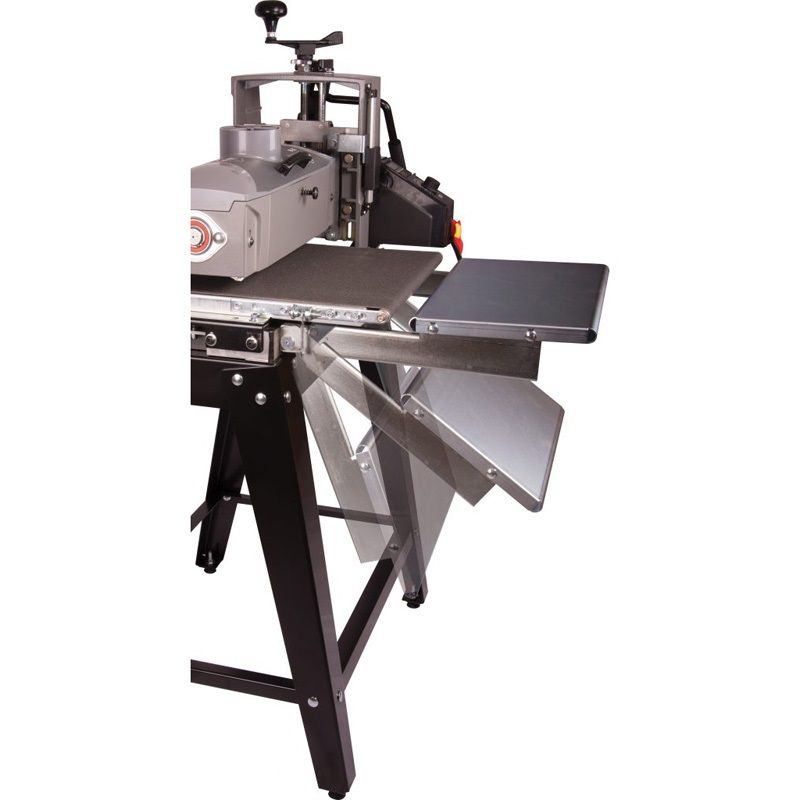

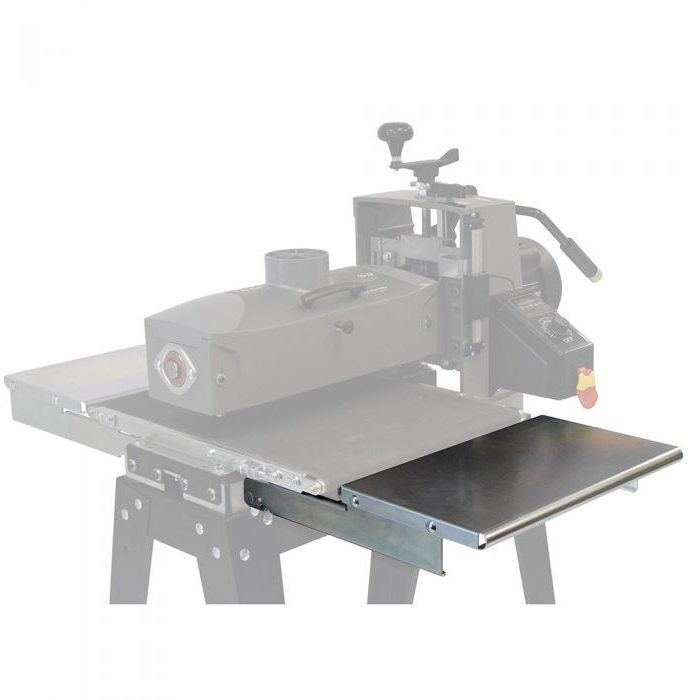

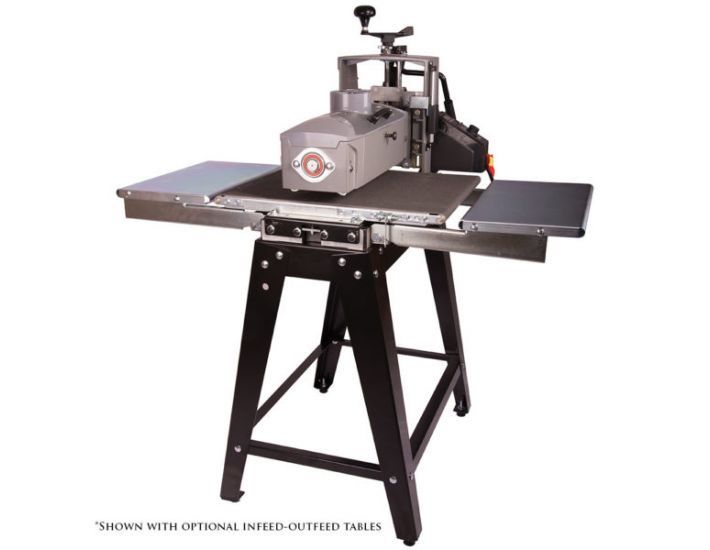

1 X Laguna 16/32FE Folding Infeed / Outfeed Tables for Laguna 16-32 Drum Sander

Specification

Part Number: 16/32DS
Drum motor (Induction): 1100w (1.5hp)
Conveyor motor (DC): 40w (1/20hp)
Power supply: 220-240v / 50Hz / 1 phase
Maximum width (1 pass): 405mm (16”)
Maximum width (2 passes): 810mm (32”)
Minimum length: 57mm (2-1/4”)
Maximum thickness: 75mm (3”)
Minimum thickness: 0.8mm (1/32”)
Drum Dimensions: 127mm x 405mm (5" x 16")
Drum Speed: 1400 rpm
Conveyor Speed (Variable): 0-3 m/min (0 - 10 fpm)
Dust collection minimum requirement: 1000m3/h (600cfm)
Dust port diameter: 100mm (4”)
Power cable: 1.8m with UK 3 pin plug
Assembled dimensions (WxDxH): 860mm x 560mm x 1220mm
Weight (net / ship): 117kg /
Manufacturers warranty: 1 Year

Laguna 16/32 Owners Manual

PLEASE NOTE THESE VIDEOS ARE FROM AMERICA AND YOU SHOULD THEREFORE ALLOW FOR COSMETIC DIFFERENCES IN THE SOON TO BE UPLOADED UK VERSION OF THIS MACHINE.
