Laguna 14/BX Bandsaw Package Deal - 14" Woodworking Bandsaw c/w 4 blades and wheel kit

X
Product Code: LG/14/BX-PK2
Brand: Laguna
Stock Available
Delivery typically 3-4 days
Was £2,388.62 Inc. VAT
Now £1,799.00!
£1,499.17 Exc. VAT
COLLECTION
DELIVERY
Qty
Laguna

Laguna 14/BX Floorstanding Bandsaw Package Deal - 14" Laguna Woodworking Bandsaw 2-1/2hp 230v - c/w 4 Bandsaw Blades, Wheel Kit and Mitre Guide
Ref: LG/14/BX-PK2



Key Features

Having the same impressive build quality as the 1412, the main differences for this BX model are

  • Increased weight
  • Solid one-piece Frame
  • Frame is heavier Gauge
  • Disc-Brake w/ Micro-Switch

The 2 1/2 HP TEFC braked motor provides adequate power for even the deepest cuts. There is a quick blade release tension lever that makes blade changing faster and this is complimented with an easy to view blade tension scale indicator to easily ensure correct tension set up.

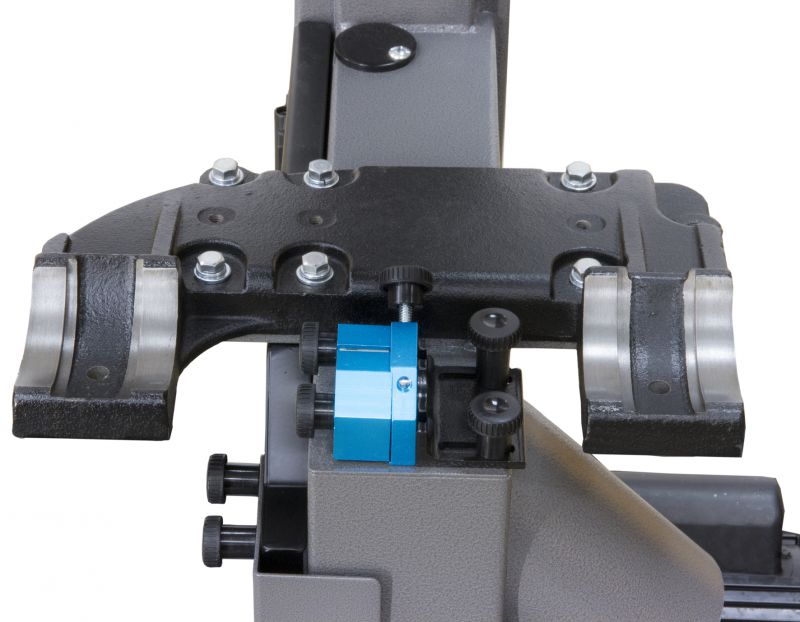

The micro polished 21" X 16″ cast iron table is mounted onto an oversized Trunion with two locking points that ensure there is a solid surface to work from. The rigid aluminium high/low fence ensures full and precise timber support.

Solid cast iron wheels are electronically / dynamically balanced & fitted with polyurethane one-piece tyres designed to run cooler and last longer than conventional tyres. The worm gear & pinion on the blade guard is ultra-smooth and engineered to have minimum flex even when fully extended - this is a trade mark of Laguna.

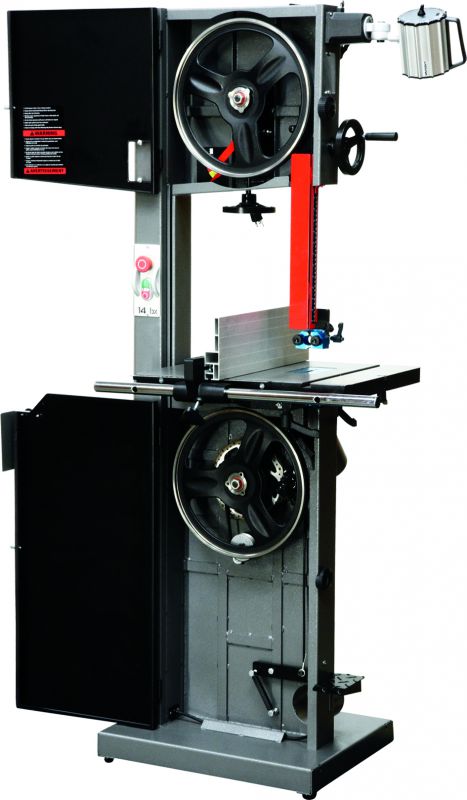

Double windows allow you to check both tension and tracking while the machine is running. There is a premium anodized aluminium throat plate with fine adjustment for ultimate accuracy.

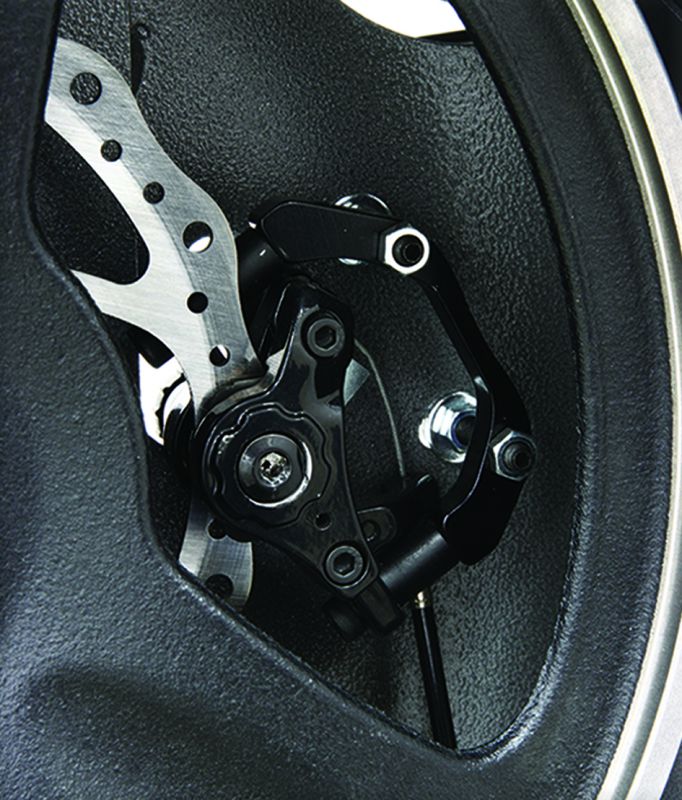

The added convenience of the foot operated disc brake allows you to stop the saw whilst still having both hands on the work piece. This works by cutting power to the motor and the disc break then engages the flywheel to rapidly stop the blade.

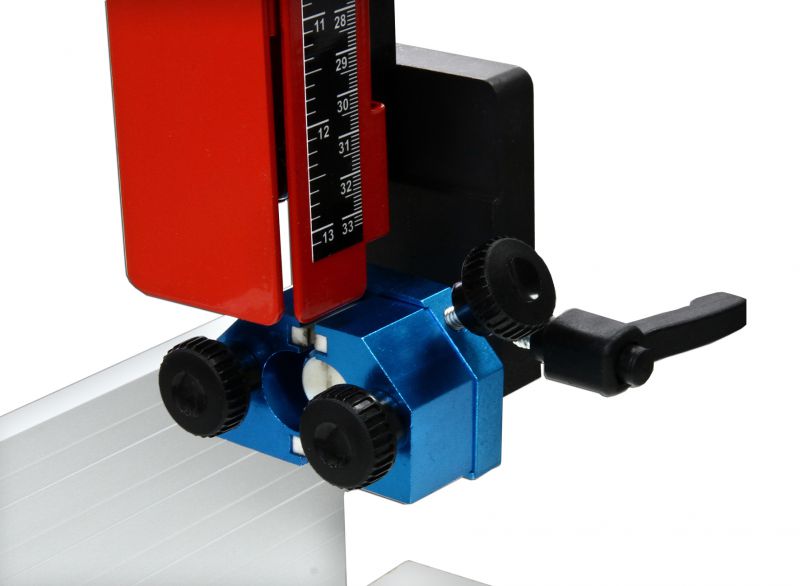

And last but certainly not least, the famous ceramic Laguna guides create 10 points of contact on the blade allowing easy set up and highly accurate cuts even when re-sawing deep timber.



Items included

  • 1 x Laguna 14BX bandsaw
  • 1 x Woodpecker Blade 2921mm x 6mm (1/4") x 6tpi
  • 1 x Woodpecker Blade 2921mm x 10mm (3/8") x 6tpi
  • 1 x Woodpecker Blade 2921mm x 13mm (1/2") x 4tpi
  • 1 x Woodpecker Blade 2921mm x 20mm (3/4") x 4tpi
  • 1 x Woodworking Bandsaw Mobility Kit Wheelkit
  • 1 x Laguan Mitre Guide



Specification

  • Motor (Induction): 1800w (2.5hp)
  • Power Supply: 220-240V / 50Hz / 1 phase
  • Maxmimum Cutting Depth: 330mm (13")
  • Wheel Size (Cast Iron): 355mm (14")
  • Throat Width: 340mm (13.6")
  • Maximum Cutting Width With Fence: 310mm (12")
  • Fence Height (Hi/Lo): 140mm / 12mm (5.5" / 0.5")
  • Table Size (Cast Iron): 400mm x 546mm (16" x 21.5")
  • Table Tilt: -7 degrees to +45 degrees
  • T-Slot For Optional Mitre Guide: 19mm to 25mm (3/4" to 1")
  • Blade Length: 2,921mm (115")
  • Minimum Blade Width: 3mm (1/8")
  • Maximum Blade Width: 19mm (3/4")
  • Blade Guide (Above and Below Table): Laguna 5 Piece Ceramic
  • Recommended Breaker Size: 16 Amp
  • Power Cable: 1.8m with UK 3 pin plug
  • Dust Collection Outlets: 100mm (4")  x 2
  • Floor To Table Height: 965mm (38")
  • Weight (net / ship): 123kg / 150kg
  • Assembled Dimensions (WxDxH): 755mm x 713mm x 1790mm
  • Shipping Dimensions (WxDxH): 1860mm x 660mm x 640mm
  • Manufacturers Warranty: 1 Year
Items Included
Click For Bigger Image
1 X Starrett Woodpecker Bandsaw Blade 2921mm (115") 3/4 Wide x 3 TPI fits Laguna 14BX and 14/12
Click For Bigger Image

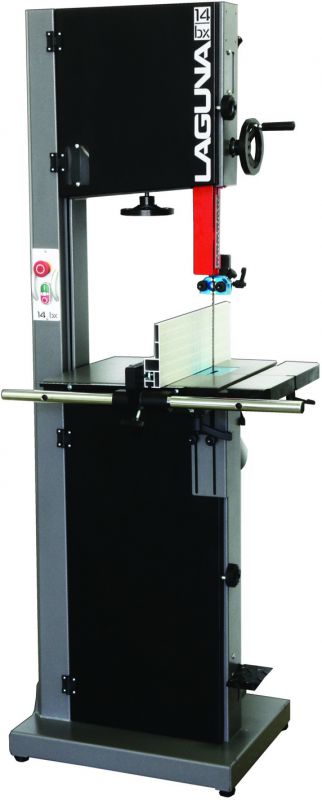

1 X Laguna 14/BX 14" Woodworking Bandsaw
Click For Bigger Image
1 X Laguna 14/12 and 14BX Woodpecker Bandsaw Blade 2921mm x 6mm (1/4") x 6tpi
Click For Bigger Image
1 X Laguna 14/12 and 14BX Woodpecker Bandsaw Blade 2921mm x 10mm (3/8") x 6tpi
Click For Bigger Image
1 X Laguna 14/12 and 14BX Woodpecker Bandsaw Blade 2921mm x 13mm (1/2") x 4tpi
Click For Bigger Image
1 X Laguna 14/12WK Woodworking Bandsaw Mobility Kit Wheelkit
Click For Bigger Image
1 X LG/SMG Sliding Mitre Guide for Laguna Bandsaws
