Kreg KJDECKSYS20 - Kreg Deck Jig Decking Screwing System

Kreg Deck Jig Decking Screwing System - (Ref: KJDECKSYS20)

• The Kreg Deck Jig helps you get the deck you want, without any unsightly exposed nails or screws

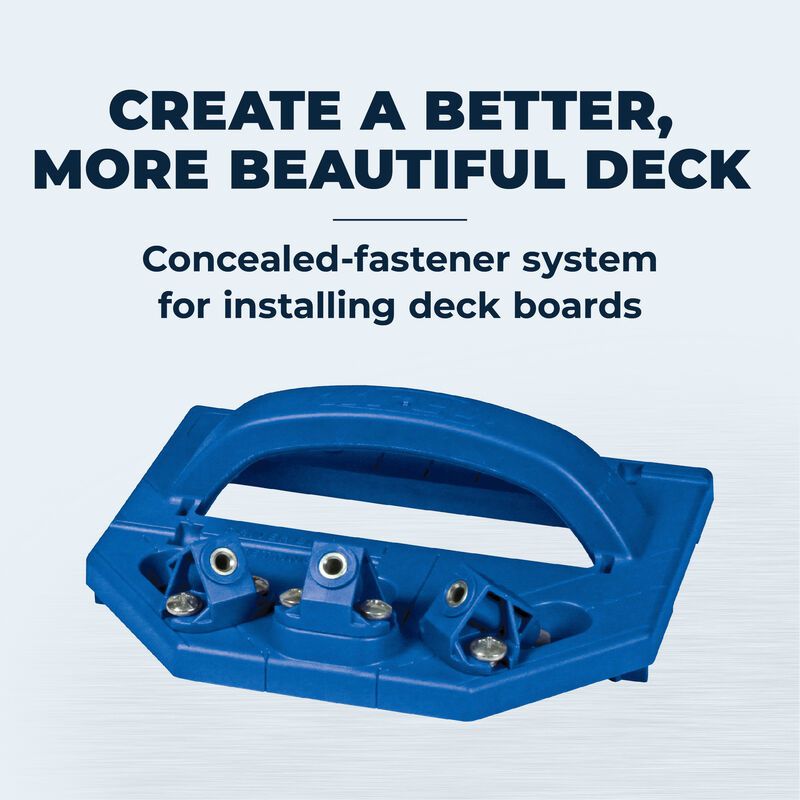

• Concealed-fastener system for installing deck boards
• Easy-grip handle gives you a secure hold and complete control over each and every joint

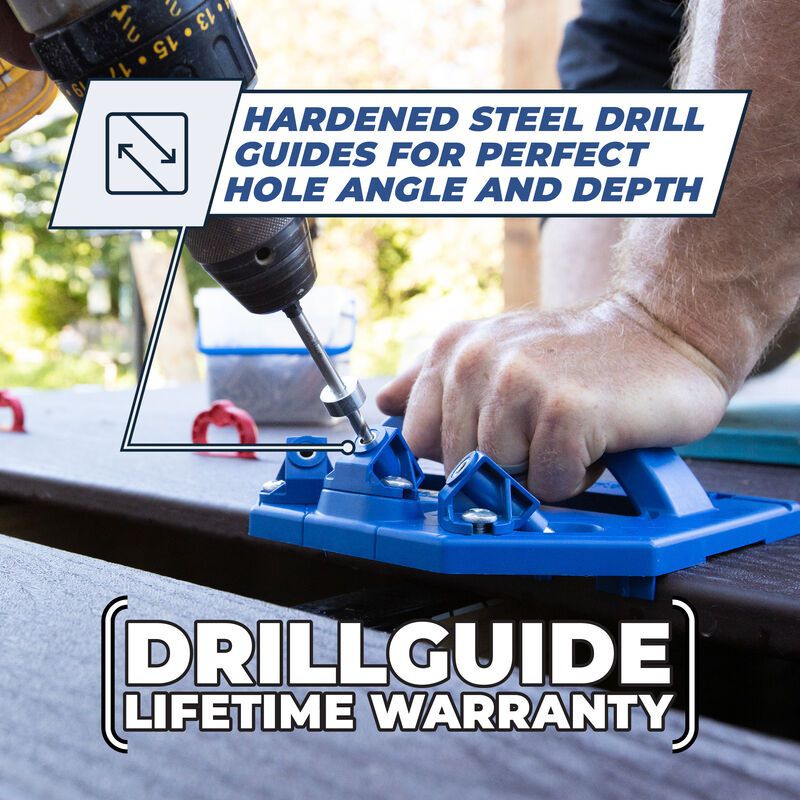

• Hardened-steel guides keep the stepped drill bit and driver bit at the precise, optimal angle

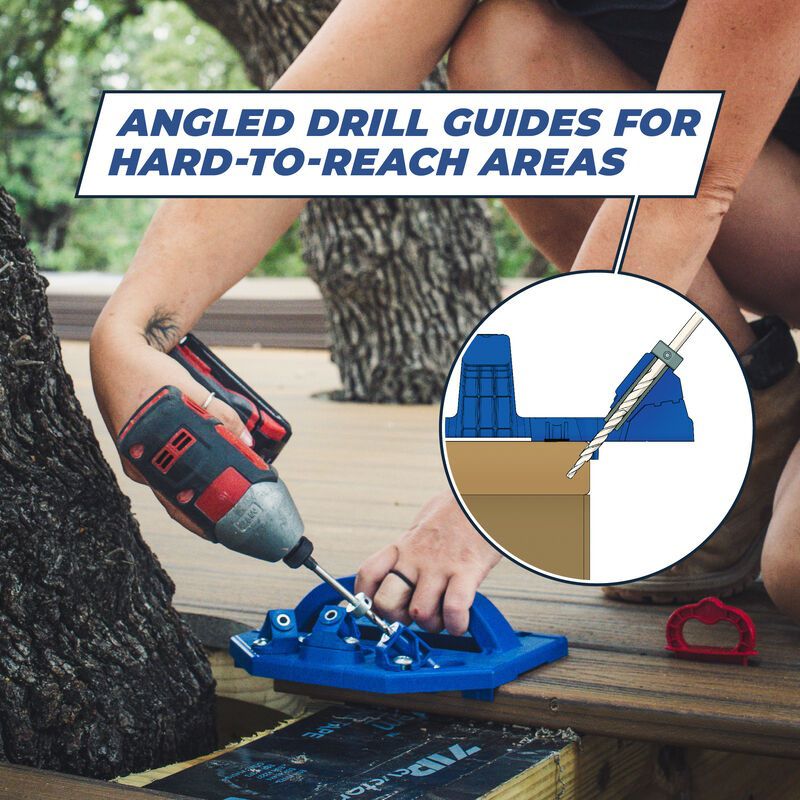

• Three lifetime-warranted, hardened-steel drill guides let you install deck boards in a variety of hard-to-reach areas

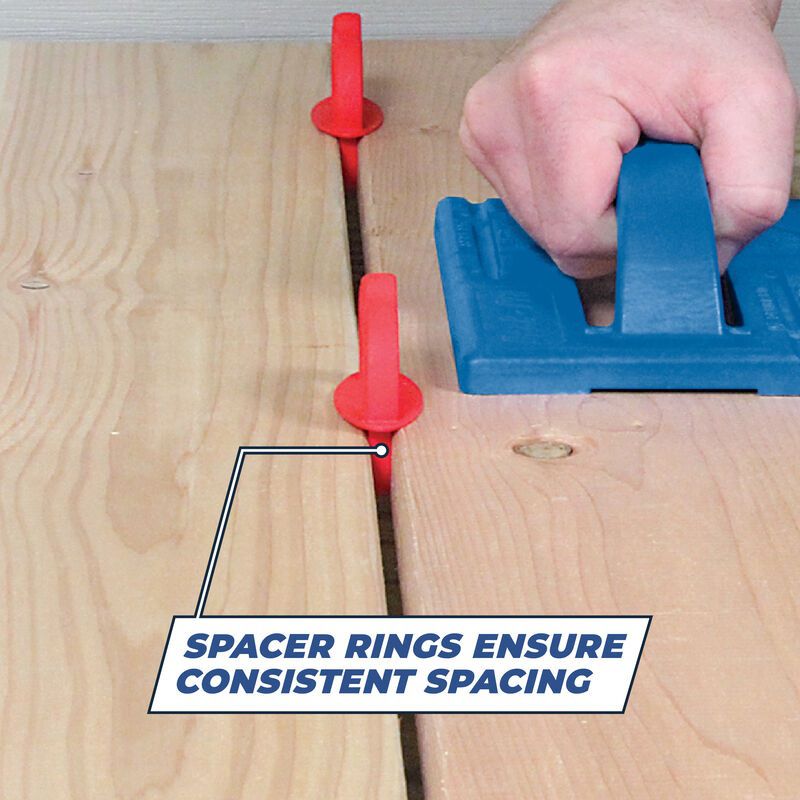

• Handy spacer rings ensure accurate deck board spacing for proper drainage and longer deck life

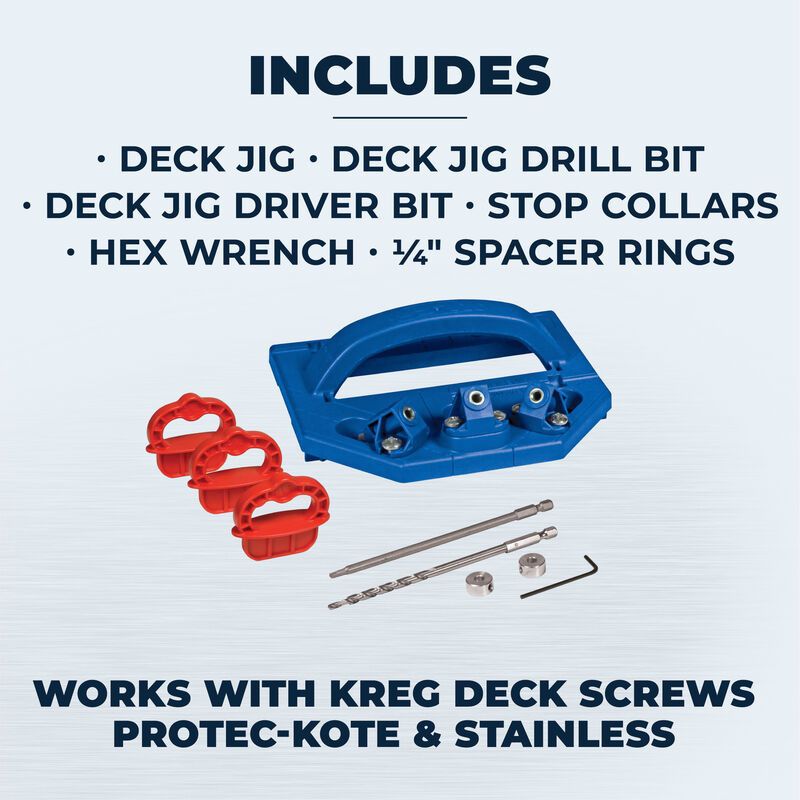

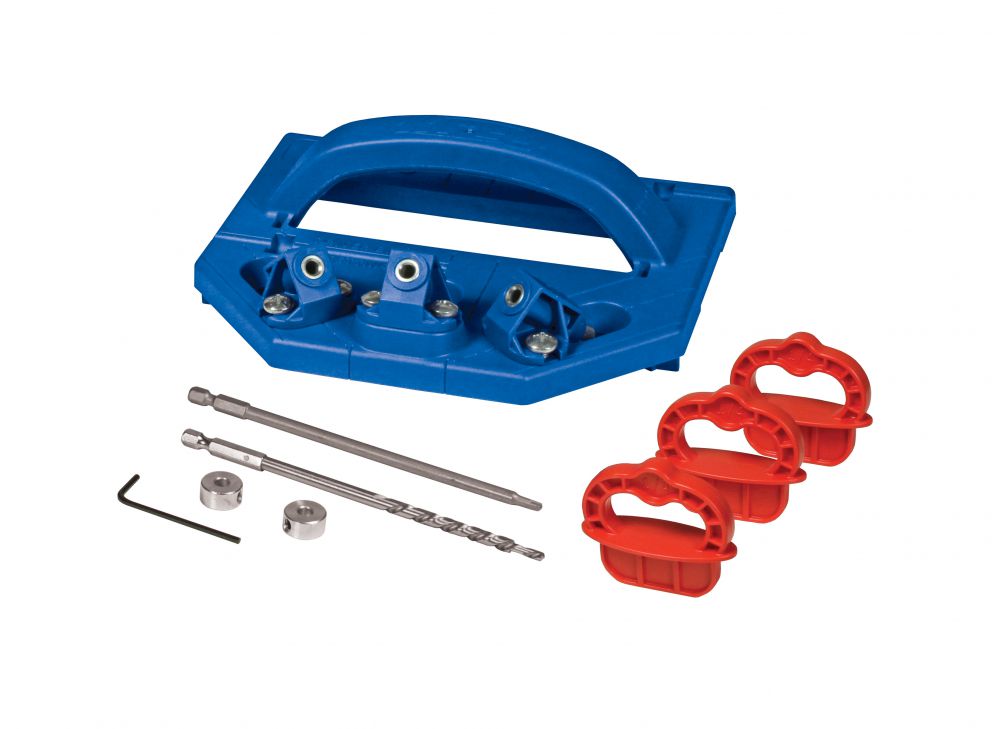

• 1 x Deck Jig,
• 1 x Deck Jig Drill Bit
• 1 x Deck Jig Driver Bit
• 2 x Stop Collars
• 1 x Hex Wrench
• 3 x  ¼" Spacer Rings
• Owner's Manual

• Features: Installs concealed deck fasteners
• Three hardened-steel drill guides
• Construction: Impact-resistant polymer, hardened steel
• Adjustability: Adjustable stop collars for 4/4, 5/4, and 2-by decking
• Capacity: 4/4, 5/4 and 2-by (1 1/2"-thick) decking material
• Warranty: Lifetime drill guide warranty

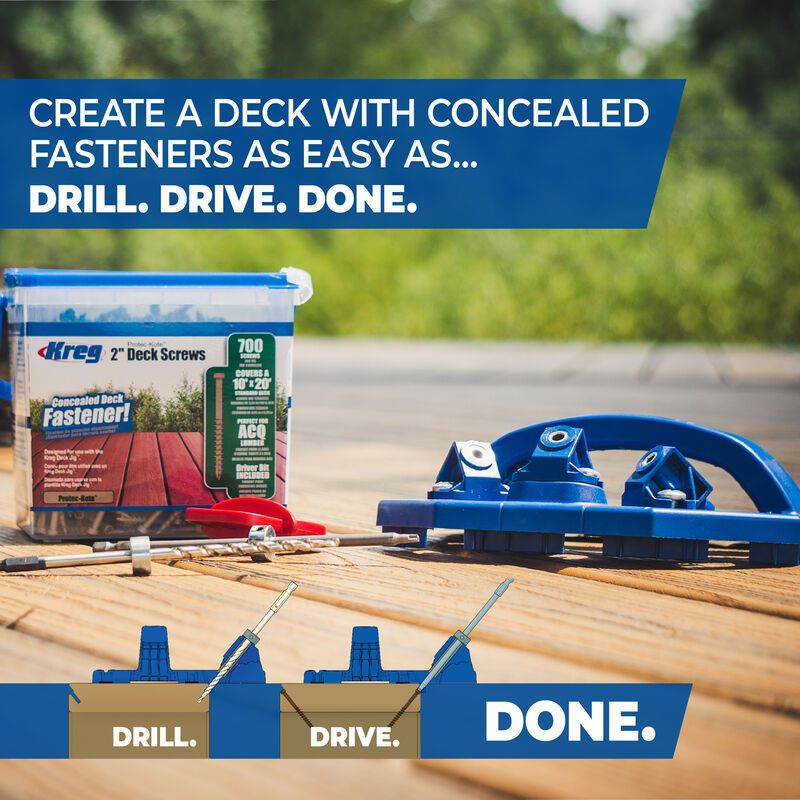

• Create a better, more-beautiful deck with the Kreg® Deck Jig™. This concealed-fastening system works together with Kreg Deck Screws to allow you to install decking without visible fasteners, so all you see is the beauty of your decking instead of a bunch of screws. The Deck Jig features hardened-steel guides to drill precisely positioned pilot holes, and to guide Deck Screws to attach decking from the edge solidly and invisibly—whether you’re using solid-wood or composite deck boards.

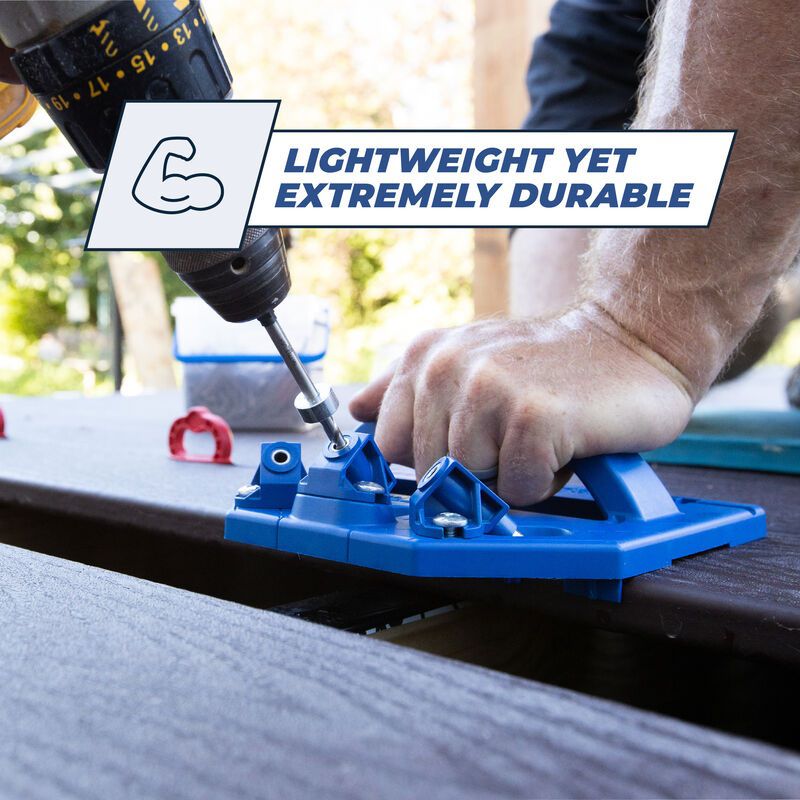

• The Deck Jig makes drilling the stepped pilot holes and driving screws easy in all situations thanks to three hardened-steel guides—one at 90° to the board edge, and two at opposing 45° angles—that allow easy access when working near walls, as well as when creating strong joints where boards butt together end to end. The stepped drill bit creates a perfectly positioned pocket hole and clearance hole for the Kreg Deck Screw, while a stop collar ensures prefect drilling depth.
• After drilling, just drop a Kreg Deck Screw—an integral part of this concealed-fastening system—into the same guide, and then drive it with the included square-drive driver bit. It’s equipped with a stop collar, too, to ensure that the self-tapping, case-hardened screw gets driven to the perfect depth. The aggressive threads bite securely into the joist, while the smooth upper shank and flat-bottom head work together to pull the deck board tightly in to place.

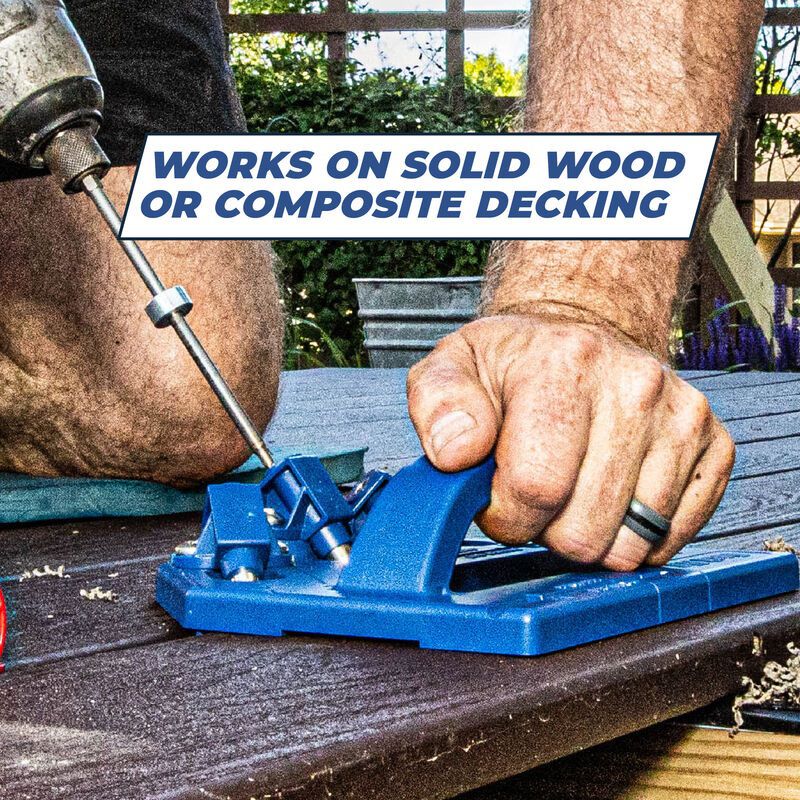

• The Deck Jig Concealed-Fastener System works with composite decking, as well as solid-wood decking such as cedar, hardwoods, and pressure-treated wood—kiln-dried after treatment (KDAT) recommended.
