Kreg Heavy Duty Pocket Hole System Kit - includes Jig, Clamp, Screws, Driver, Drill Bits

Kreg Heavy Duty Pocket Hole System Kit

Includes Jig, Clamp, Screws, Driver, Drill Bits

• Kreg KJHD - Kreg HD Pocket-Hole System
• KREG® Easy-Set Drill Bit with Easy-Set Depth Gauge / Depth Collar / Hex Wrench - 9.5mm (3/8")
• Kreg DDS-INT Kreg 76mm/3in & 152mm/6in no2 Square Driver Combo
• Kreg KHC3-INT - Kreg 76mm / 3" Wood Project Clamp with Automaxx
• Kreg SML-C2X250-125-EUR Kreg HD WR Pocket Hole Screws - 64mm / 2-1/2" x 14 Coarse, Washer-Head, qty 125

Kreg HD Pocket Hole Jig - (Ref: KJHD)

• The Kreg Jig® HD delivers the strength and confidence you need to BUILD BIG!
• Designed with the same tried-and-true efficient design and hardened-steel drill guides as the original Kreg Jig®, the Kreg Jig® HD lets you create joints in 38mm and thicker materials that are an amazing 50% stronger than traditional Kreg Joints™.
• If you are framing walls, building deck railings, outdoor furniture, or any other large project, you always want the strongest joint possible; and this is where the Kreg Jig® HD excels — strength.

• The Kreg Jig HD Pocket-Hole System is the heavy-duty solution for building with wood
• Creates joints 50% stronger than standard Kreg Joints
• Optimized for large outdoor projects
• For use with materials 38mm and thicker
• Works with the Kreg Jig® K5 and K4
• Stop Block provides easy, repeatable registration to workpiece
• Face Clamp locks into Kreg Jig HD for secure drilling
• Hex-Shank HD Drill Bit is Quick-Change compatible

Bigger bit, bigger screws, and of course — bigger projects. The Kreg Jig® HD delivers the strength and confidence you need to BUILD BIG!

Efficient Design and Hardened-Steel Drill Guides

Designed with the same tried-and-true efficient design and hardened-steel drill guides as the original Kreg Jig®, the Kreg Jig® HD lets you create joints in 11/2" and thicker materials that are an amazing 50% stronger than traditional Kreg Joints™. If you are framing walls, building deck railings, outdoor furniture, or any other large project, you always want the strongest joint possible; and this is where the Kreg Jig® HD excels — strength.

Great for 2x4s and 11/2"-Thick and Larger Stock

The Kreg Jig® HD is optimized for working with 2x4s and 11/2" thick and larger stock. It utilizes #14 heavy-duty, hardened-steel screws that provide incredible shear-resistance, as well as three anti-corrosion layers for incredible long-term moisture resistance.

Works As a Stand-Alone Jig

The Kreg Jig® HD works great as a stand-alone jig. Simply connect it to your Kreg Face Clamp, lock it into place, and take it where you need to go. Depending on the project, the Kreg Jig® HD can also connect directly to your model K3, K4, K4MS, or K5 Kreg Jig® benchtop base for upright drilling.

KREG® Easy-Set Drill Bit with Easy-Set Depth Gauge / Depth Collar / Hex Wrench - 9.5mm (3/8") - (Ref: KPHA308-INT)

• Add a second bit to your Kreg® 300-Series Pocket-Hole Jig, or update any Kreg Jig to make building wood projects with boards and plywood even easier. The Kreg® Easy-Set Pocket-Hole Drill Bit with Step Collar and Gauge/Wrench is the same stepped bit that comes with 300-Series Kreg Pocket-Hole Jigs.
• This drill bit works with materials from ½" to 1½" thick, and features engraved markings for ½", ¾", 1½", along with the matching Easy-Set Stop Collar. The Material Thickness Gauge allows you to easily determine material thickness from ½" to 1½" easily, too.  A ¼" hex-shank fits all standard quick-change chucks. Compatible with all Kreg Pocket-Hole Jigs.

• Stepped drill bit, stop collar, and thickness gauge/wrench for Kreg® Pocket-Hole Jigs
• Works with materials from ½" to 1½" thick
• Drill bit features easy-set etched markings for ½", ¾", 1½" materials
• Stop collar window aligns with etched markings on drill bit for easy setup
• Thickness Gauge measures material thickness, has built-in hex wrench
• Direct replacement for items included with Kreg® Pocket-Hole Jig 320, 310
• Also works with K5, K4, K3, R3, Mini, and Foreman

• Construction
• Hardened steel, steel, polypropylene
• Material Capacity
• ½" to 1 ½" (13-38mm)
• Compatible with:Kreg® Pocket-Hole Jig 320, 310, and related accessories, as well as K5, K4, K3, R3, Mini, Foreman

• (1) Easy-Set Drill Bit
• (1) Easy-Set Stop Collar
• (1) Material Thickness Gauge/Hex Wrench

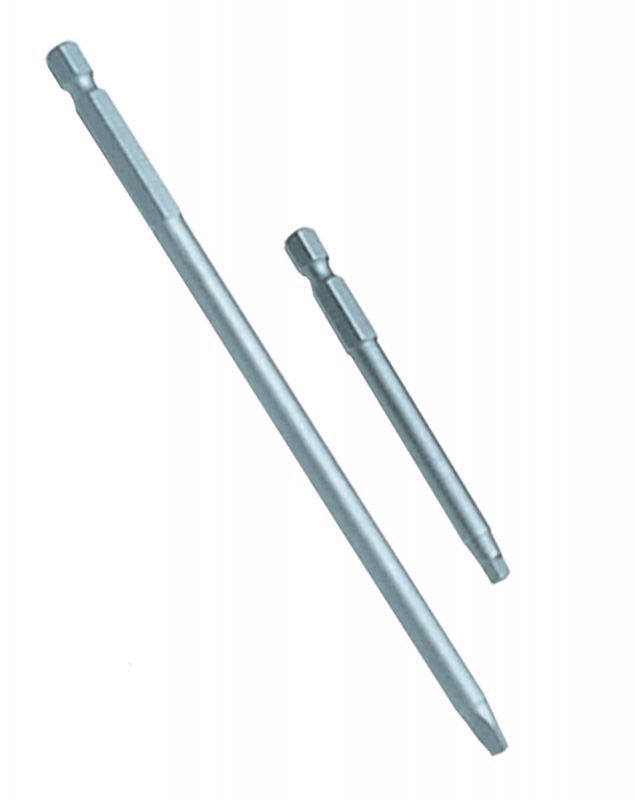

Kreg 76mm / 3in & 152mm / 6in no2 Square Driver Combo - Kreg DDS-INT

• All Kreg® drivers features a solid one-piece construction, magnetic tip, and Kreg® Quick-Change Chuck compatibility for fast and easy bit changes.
• This combo includes one 76mm square driver and one 152mm square driver.
• The 152mm version offers the most flexibility and ease-of-use for your projects.
• The 76mm version is handy when you’re working in tight spots where the 152mm driver can’t reach.

• 1 x 76mm square driver
• 1 x 152mm square driver
• Solid, one-piece construction
• Quick-Change compatible
• Magnetic tip

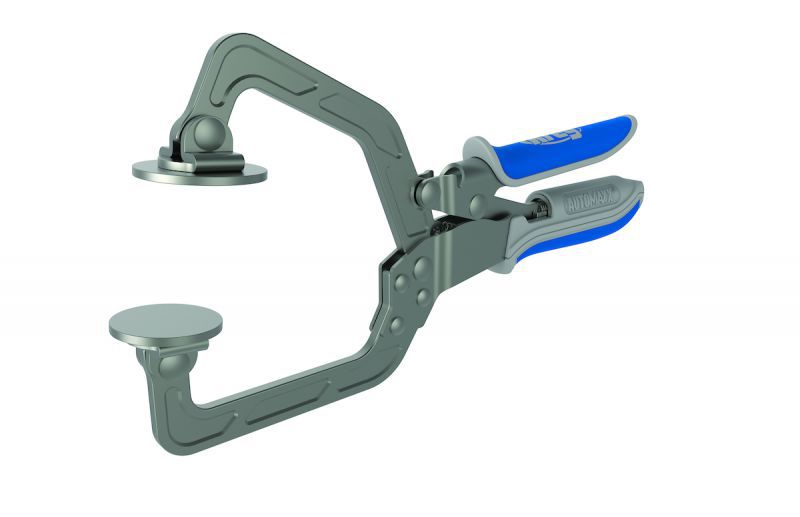

Kreg 76mm / 3" Wood Project Clamp with Automaxx - (Ref: KHC3-INT)

• Wood Project Clamps are perfect for Kreg Joinery, project assembly, general clamping, and more. Available in two sizes — 3" reach and 6" reach — these versatile clamps have large clamp faces that distribute clamping force evenly and won't mar delicate surfaces. They are compatible with the Kreg Jig® R3's Clamp Pad Adapter and the Kreg Jig® Portable Base.
• Auto-Adjust Technology. Thanks to Automaxx® Auto-Adjust Technology, Wood Project Clamps adjust to match material thickness automatically with a simple squeeze of handles — whether the material is thick, thin, or in between. You can clamp a 2x4 and then a piece of 1/2" plywood without ever readjusting the clamp.
• Easy-to-Regulate Clamping Pressure. Easily regulate clamping pressure with a simple thumbscrew. Just set your desired pressure by turning the thumbscrew for more or less pressure. Once the pressure is set, the clamp maintains consistent clamping pressure with every thickness.
• Highly-Durable Construction. Wood Project Clamps are designed to withstand years of heavy use, thanks to heavy-duty, all-metal construction. They also have ergonomic padded grips for comfort and ease-of-use.

• Quick, convenient clamping with automatic adjustment
• 76mm reach; clamps materials up to 76mm thick
• Adjusts automatically to match material thickness
• Easy-to-regulate pressure with a simple thumbscrew
• Large clamp faces spread pressure evenly
• Ergonomic padded grips prevent hand fatigue
• Works with the Kreg Jig® R3 clamp pad adapter, as well as the portable base

Kreg SML-C2X250-125-EUR Kreg HD WR Pocket Hole Screws - 64mm / 2-1/2" x 14 Coarse, Washer-Head, qty 125

• Kreg Jig® HD Screws are optimized for use with the Kreg Jig® HD and 38mm and larger stock. These large 63mm long #14 hardened-steel screws provide incredible shear-resistance, and have a Protec-Kote™ finish with three anti-corrosion layers for long-term moisture resistance. #3 square driver.

• Specifically designed to hold your pieces together to create a strong, long-lasting joint
• For use with 38mm and larger stock
• Optimized for use with the Kreg Jig® HD
• 63mm long #14 hardened-steel screws
• Provide incredible shear-resistance
• Protec-Kote™ finish for long-term moisture resistance
• #3 square driver
• 125 count screws

Take a look at our Knowledge Centre for handy guides to pocket-hole joinery and help with choosing the correct screws.
