Jet JWL-1840EVS-M WOOD LATHE

JET JWL-1840EVS-M Wood Lathe

• Machine height ergonomically adjustable using the 100mm cast iron risers and levelling feet supplied
• Emergency stop switch can be positioned as needed with the magnet on the machine bed
• The headstock moves across the whole machine bed and pivots by 360° for maximum versatility
• The main spindle is supported on three bearings for greater rigidity and load-bearing capacity

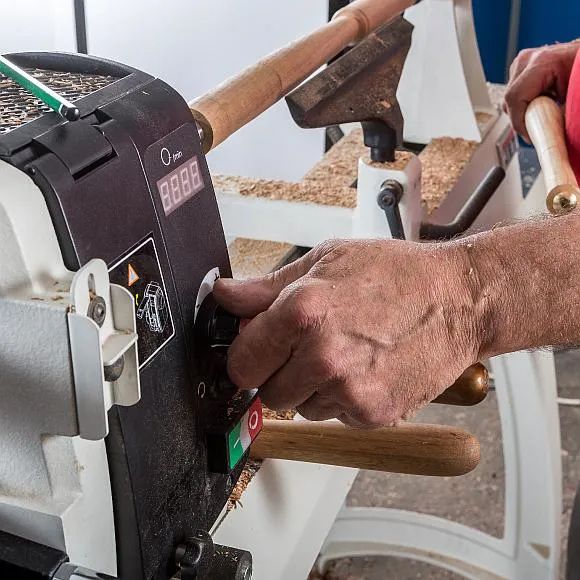

• Infinitely variable, adjustable speeds using a frequency converter, from 40–3'200rpm with 2 belt speeds

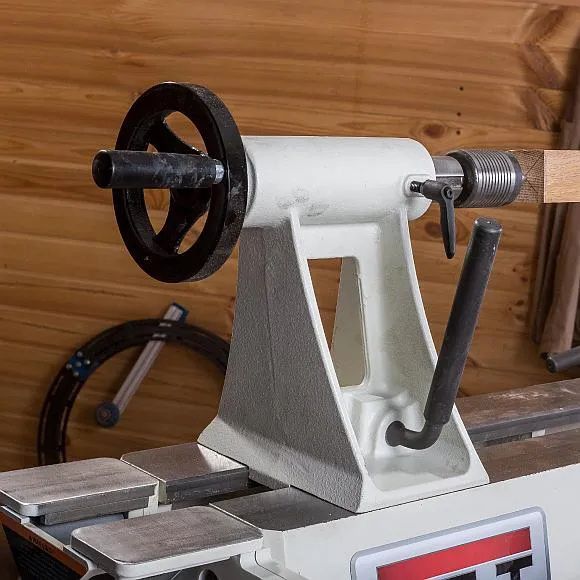

• Tailstock with heavy-duty Acme thread, quill with anti-rotation key, with mm scale
• Double-wedge clamping for tool rest and extension, load-bearing, efficient, holds position securely
• Spindle lock for two-handed changing of the faceplate and turning chuck
• The 36-hole spindle indexing device integrated in the pulley enables many types of decorative work

• Motor (V/kW): 230/2.4
• Swing over bed (mm): 470
• Swing over tool rest base (mm): 360
• Centre distance (mm): 970 (1'025 with short trading grains)
• Spindle speeds (rpm): 40–3'200, variable
• Spindle nose: M33×3.5
• Spindle index lock: 36×10°
• Headstock spindle taper: MT2
• Tailstock spindle taper: MT2
• Tailstock hole diameter (mm): 9
• Tailstock ram travel (mm): 108
• Steel support (ø/mm): 350/25.4
• Centre above floor min/max (mm): 995/1'130
• Dimensions (mm): 1'854×508×1'334
• Weight (kg): 190
