Jet JWL-1015VS Mini Wood Lathe 230V

JET Mini Wood Lathe 230V
Ref: JWL-1015VS

• An ideal choice for the novice woodturner looking for an affordable, user-friendly first lathe, as well as the advanced enthusiast or professional who wants to add a full-featured mini-lathe to the shop. This sturdy, smooth-running 15” mini-lathe has the power, precision and versatility to turn out any number of projects.
• Heavy, extra-wide cast iron machine bed (GG-20) for the ultimate in smooth operation and stability when working on unbalanced pieces
• Infinitely variable speed control with 3 belt speeds, from 200 to 3'600 rpm
• The Smart Control electronic control system ensures maximum torque, beneficial for turning large pieces

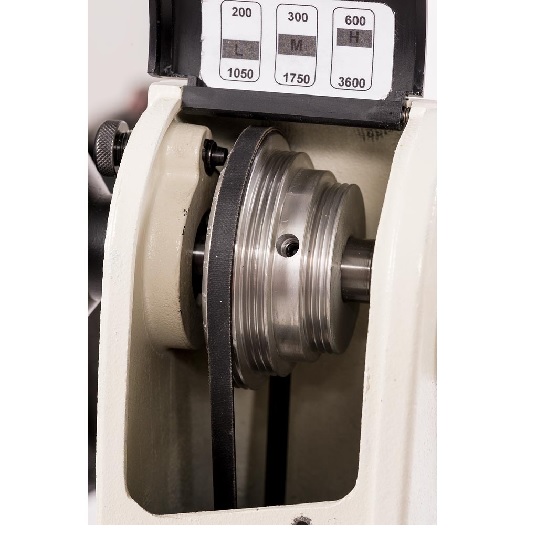

• Easy belt access from the front, simple belt tensioning system
• Poly-v belt drive, quiet and suitable for continuous operation
• Integrated spindle indexing device 24×15°
• Tailstock quill with 9mm hole allows material to be drilled through
• Quick-release lever for simple and accurate positioning of tool rest and tailstock

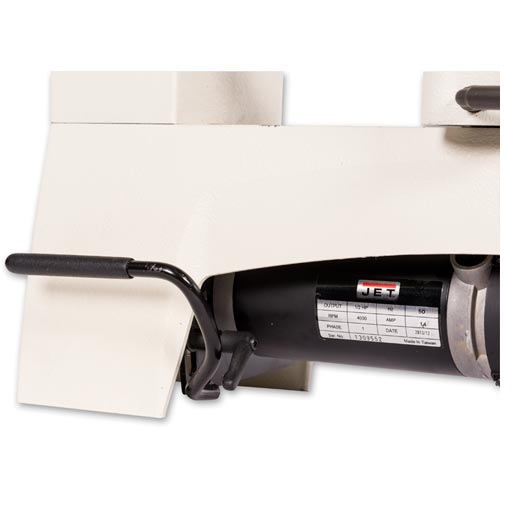

• Motor (V/kW): 230/0.5
• Swing over bed (mm): 254
• Swing over tool rest base (mm): 186
• Centre distance (mm): 368
• Spindle nose: M33×3.5
• Spindle index lock: 24×15°
• Headstock spindle taper: MT2
• Tailstock spindle taper: MT2
• Tailstock hole diameter (mm): 0
• Tailstock ram travel (mm): 50
• Steel support (ø/mm): 150/15.9
• Dimensions (mm): 775×300×445
• Weight (kg): 33
• Spindle speed ranges: 600-3600, 300-1750, 200-1050
