Jet JWDS-1632-M Drum Sander with open stand

JET Drum Sander with open stand - JWDS-1632-M

• Constructed with one open side, it allows sanding widths up to 812mm in two throughputs
• Sandsmart™ control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload
• Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage
• Drum with dustproof and lifetime-lubricated grooved ball bearings
• Drum hood with integrated guide channels for the ultimate in extraction and a dust-free environment

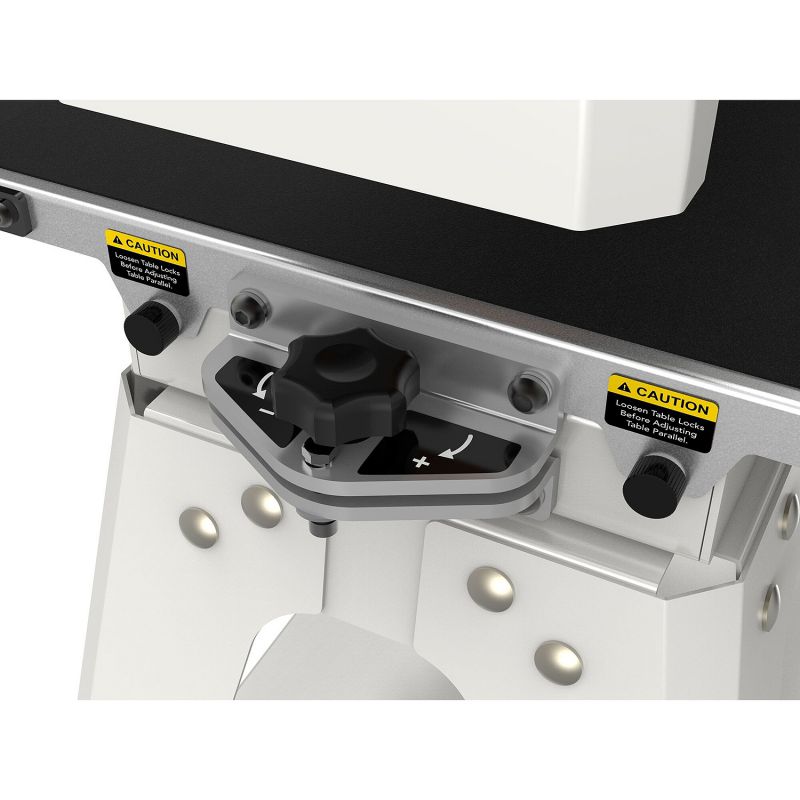

• Adjusting tool alignment is quick and accurate by shifting the feed table, with memory function
• Feed bed made from precision rolled steel plate, deeply ribbed

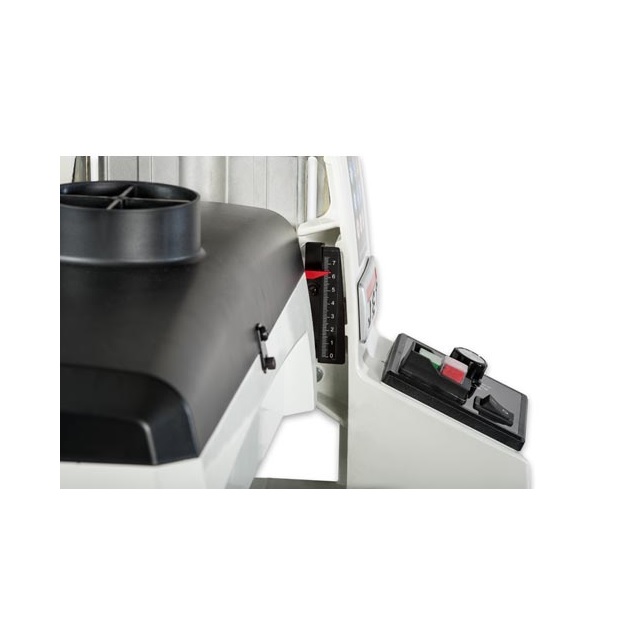

• Height scale and crank scale ring allow precise positioning

• Motor (V/kW): 230/1.6
• Drum speed (rpm): 1450
• Drum dimensions (ø-mm): 127 × 406
• Sanding speed (m/s): 9.5
• Feed speed (m/min): 0 – 3
• Maximum sanding width (mm): 406 (812, two passes)
• Minimum sanding length (mm): 60
• Max./min. sanding height (mm): 75 / 0.8
• Dust port (ø-mm): 100
• Dimensions (mm): 1010 × 510 × 1270
• Weight (kg); 71
