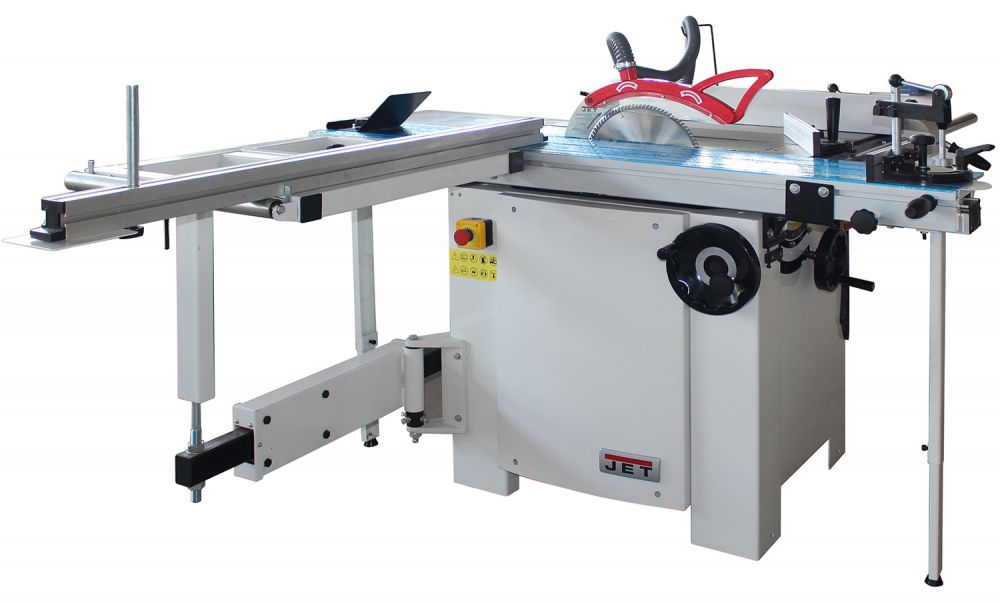

Jet JTSS-1600-T Panel Saw 400V

JET PANEL SAW 400V
Ref: JTSS-1600-T

• Professional panel saw for working with wood and wood-based laminated materials

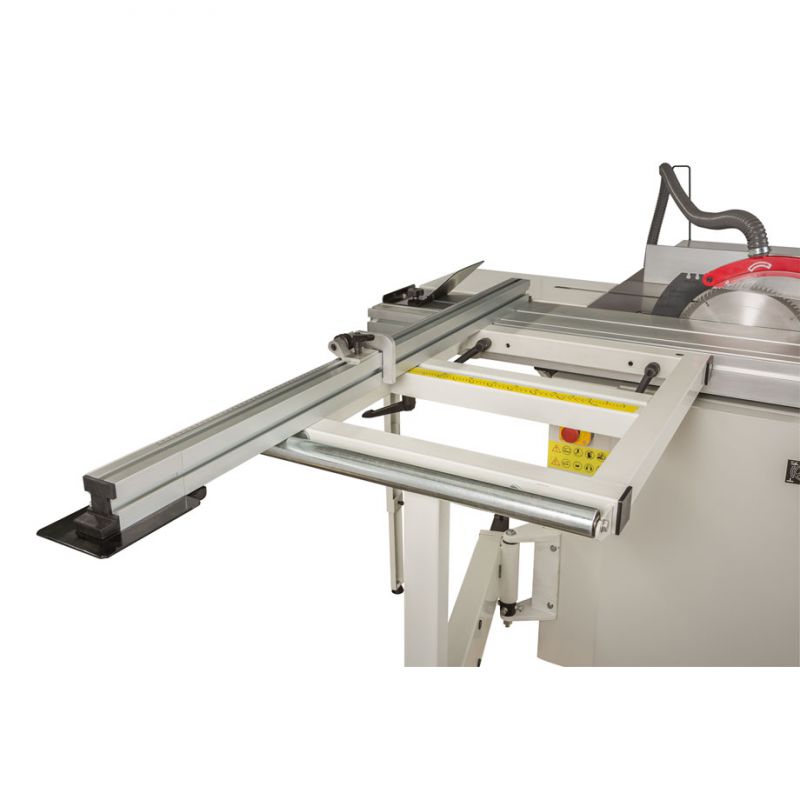

• The machine features a sliding table (carrier) with a 1'600mm travel distance
• Supplied with various accessories, which is a definite advantage as no further parts purchase is needed

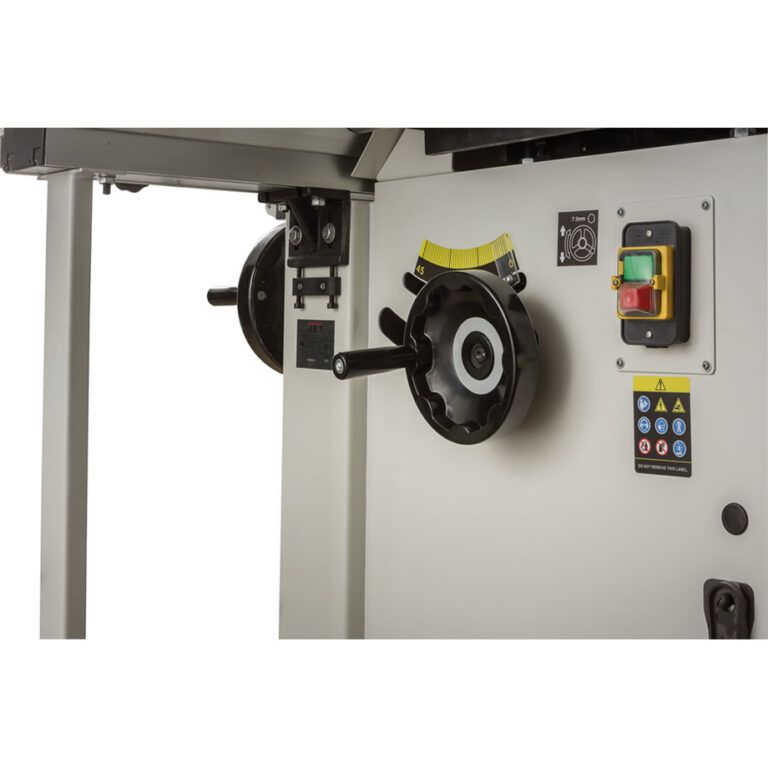

• The machine has a scoring blade driven by the main motor as well as a sawing module with tilting and height adjustment
• Plan milled grey cast iron table

• Motor (V/kW): 400/3.8
• Blade speed (U/min): 4'500
• Blade-size/bore (ø-mm): 315/30
• Mitre capacity: 0° – 45°
• Max. cutting depth at 0° /45° (mm): 100/80
• Max. cutting width (mm): 1'220
• Table size (mm): 800×385
• Extension size (mm): 500×310

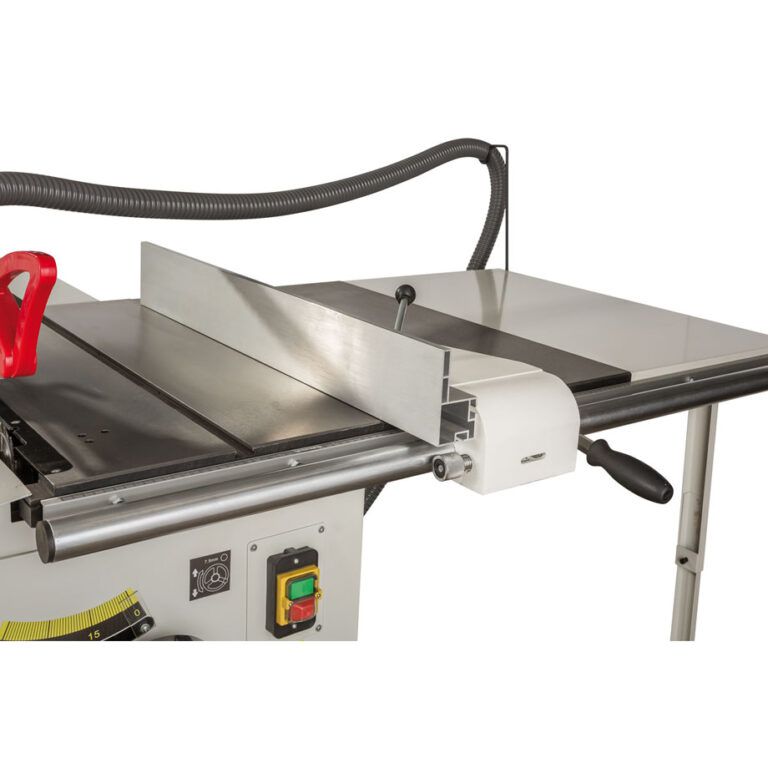

• Table extension right (mm): 800×440

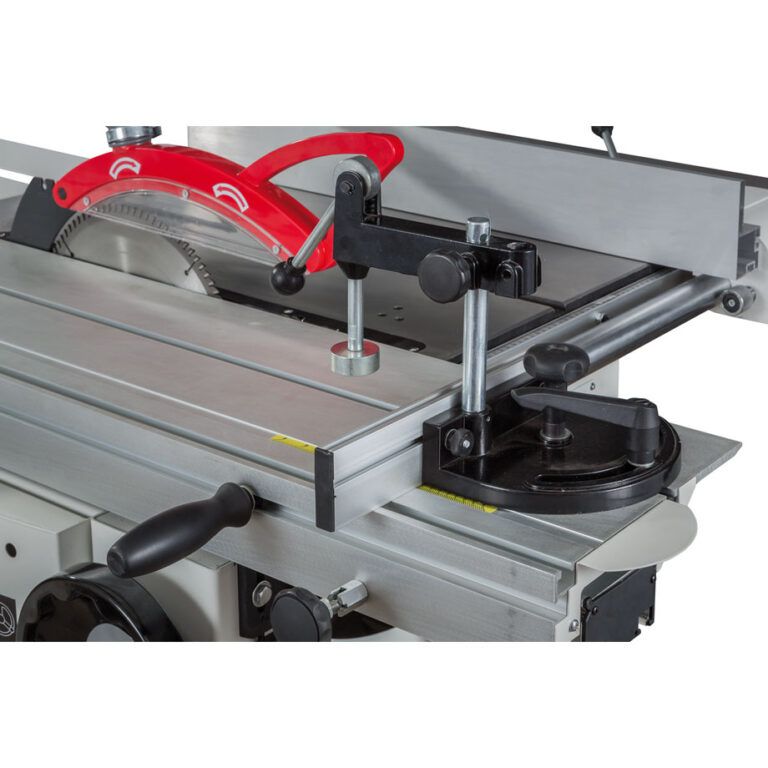

• Precision sliding table (mm): 1'600×270
• Max. length of cut (mm): 1'350
• Scoring blade speed (rpm): 8'500
• Scoring blade size/-bore (ø-mm): 90/20
• Dimensions (mm): 1'750×3'000×1'200
• Weight (kg): 265

• Motor KW: 400/3.8
• Table Size: 800×385
• Blade Speeds: 4'500
• Dimensions L x W x H: 1'750×3'000×1'200
