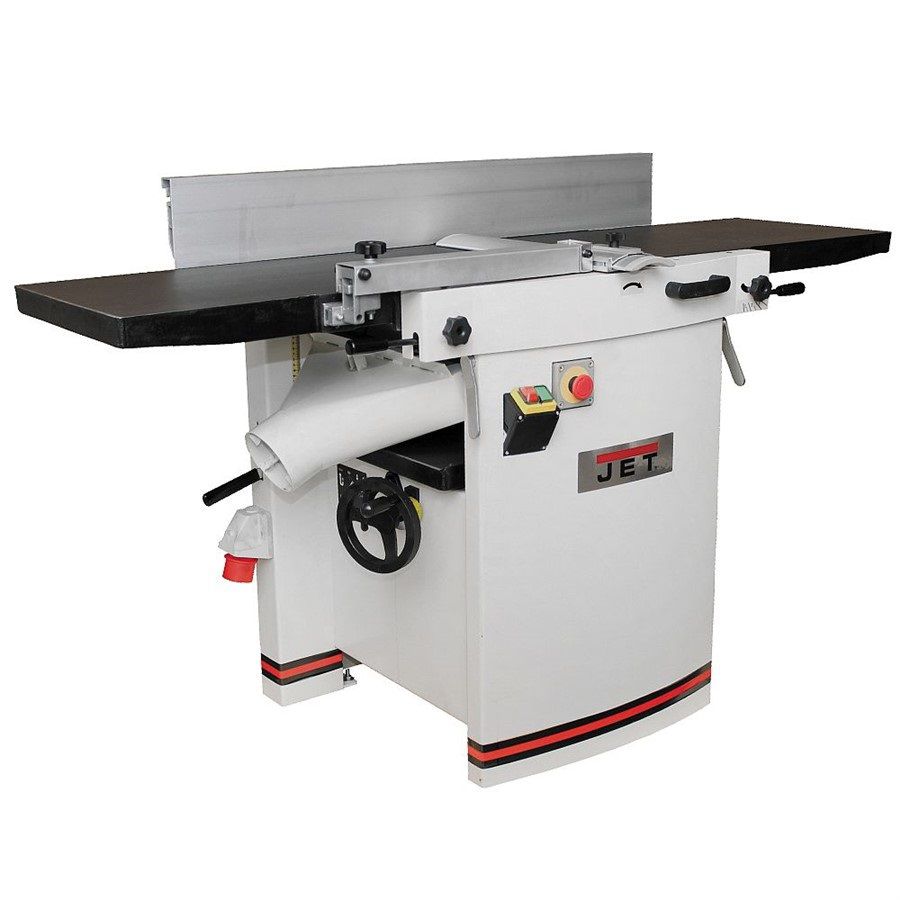

Jet JPT-410-T PLANER THICKNESSER 400V

JET PLANER THICKNESSER 400V
Ref: JPT-410-T

• Dual fold-out table to switch from planing to thicknessing in a matter of seconds, without removing the fence
• Graded planing tables made from high-quality cast iron guarantee outstandingly smooth workpiece movement
• Two-sided eccentric regulation for quick adjustment of the chip remover and hollow joint
• The 3-knife shaft allows fast processing and top planing results
• Large-sized planer fence made from aluminium, inclinable to 45°, precisely machined, stable in operation
• Warp resistant one-piece machine casing for unfailing precision
• Feed can be turned off

• Motor (V/kW): 400/3.7
• Cutterhead rotation (rpm): 5'500
• Feed speed (m/min); 7
• Maximum planing width (mm); 407
• Thicknessing height (mm); 4 – 225
• Maximum depth of cut (mm); 3
• Maximum thicknessing depth of cut (mm); 4.5
• Number of knives: 3
• Planer blades (mm); 410×25×3
• Depth of cut table size (mm): 600×407
• Planing table length (mm); 1'660
• Indexable inserts number –
• Minimum thicknessing length (mm); 150
• Fence size (mm): 1'100×150
• Fence tilt (deg.); 45° /90°
• Dust port (ø-mm); 100 & 120
• Dimensions (mm); 1'660×870×1'000
• Weight (kg); 315

• Motor KW: 400/3.7
• Feed Speed: 7
• Dimensions L x W x H: 1'660×870×1'000
