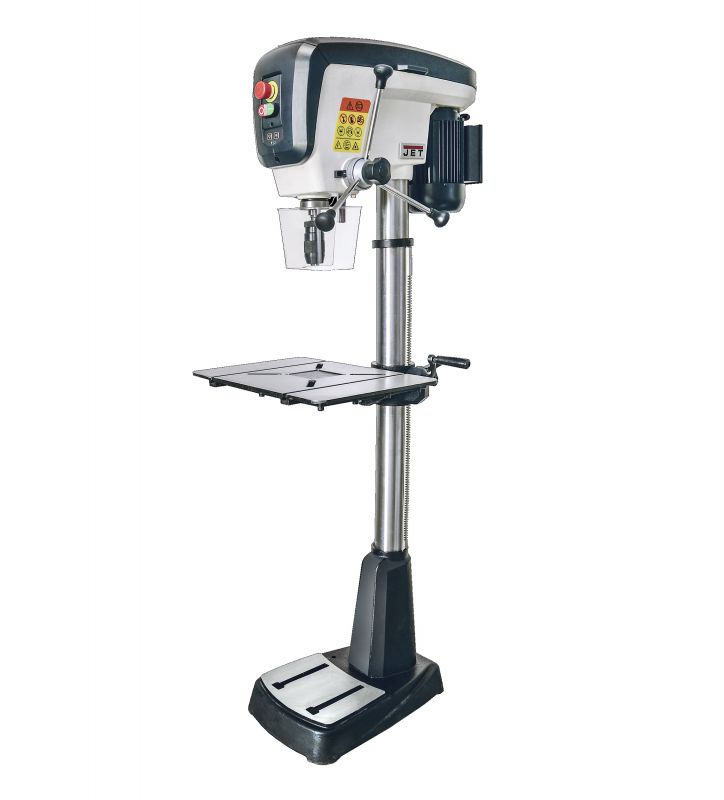

Jet JDP-17-T DRILL PRESS 400V

JET DRILL PRESS 230V
Ref: JDP-17-T

• Heavy-duty drill press developed specifically for wood workshops
• Extra-large, precision-planed work table with 2 T-slots and 4 table slots for even greater flexibility
• Flat table edge designed for using clamps
• Replaceable MDF table insert
• 127mm drill stroke with just one turn of the handwheel, for long drill holes
• Integrated drill depth stop for precision batch tasks
• Efficient 1.0kW induction motor and quiet poly-v belt drive
• One-handed belt tensioning for fast speed changes
• Xacta-X laser system easily identifies the drill center
• Integrated long-life LED working lamp prevents shadows
• Large cast iron base for high stability
• Electric drill chuck protector, belt guard protection and emergency stop as standard

• Motor (V/kW): 400/1.0
• Spindle speed range (rpm): 180 – 2'900
• Number of spindle speeds: 16
• Spindle fixture: MT2
• Spindle travel (mm): 127
• Distance spindle to column (mm): 215
• Spindle distance to table (max., mm): 763
• Spindle distance to base (max., mm): 1'194
• Table size (mm): 356×483
• Table tilt: 90° left/90° right 90°
• Miter t-slot/distance (mm): 13/270
• Column diameter (mm): 80
• Dimensions (mm): 723×483×1'679
• Weight (kg): 86

• Motor KW: 400/1.0
• Spindle Speeds: 16
• Spindle Travel: 127
• Spindle Speed Range: 180 – 2'900
• Table Size: 356×483
• Dimensions L x W x H: 723×483×1'679
