Holzmann ZS40HS Gear Driven Pillar Drill with XL Table 415v
Product Code: HOL/ZS40HS
Brand: Holzmann
Stock Expected
Delivery typically within 4-5 weeks
£2,399.99 Inc. VAT
£1,999.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY

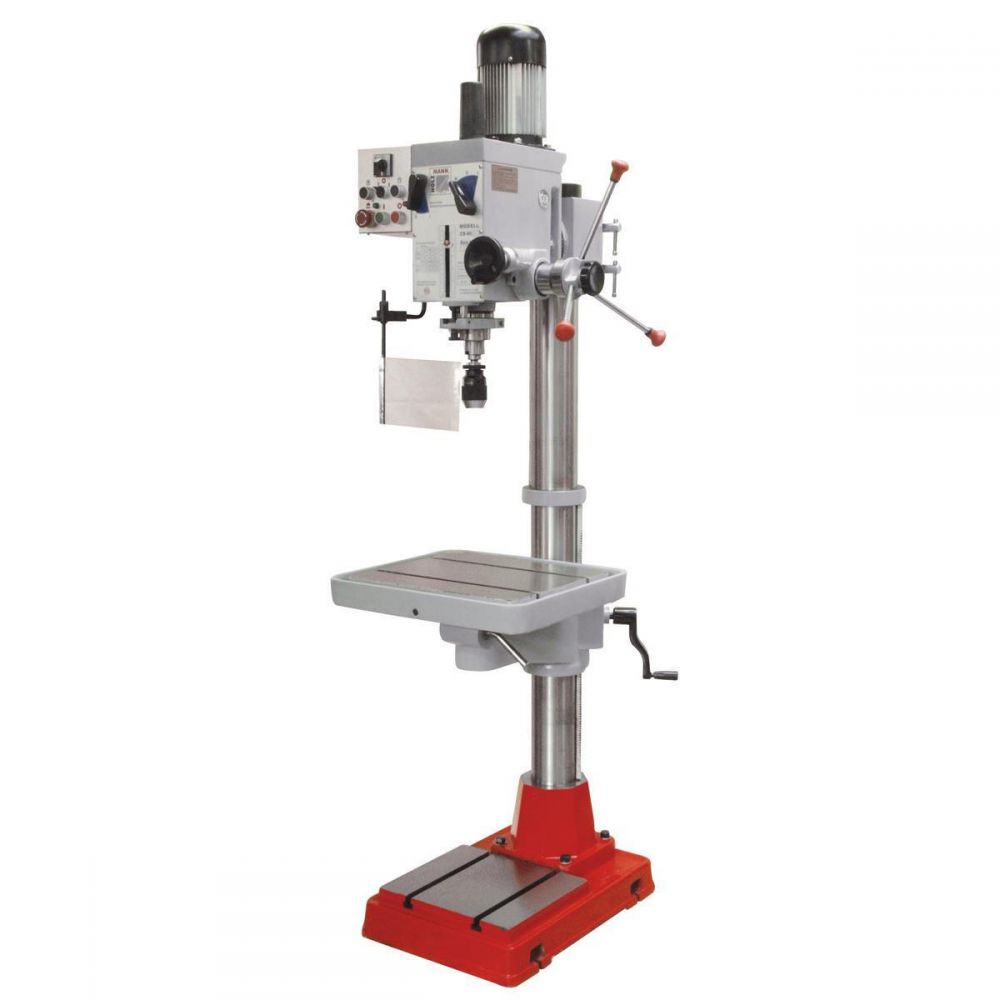

Holzmann ZS40HS Gear Driven Pillar Drill with XL Table 415v
Key Features
- largely dimensioned, height adjustable hardened and precision-ground cast iron table with 360° rotation ability around center and column
- the table is equipped with t-nut guides (14mm) to fix devices as a vice
- height adjustable and tiltable gear head delivers wide application range
- automatic tapping function and CW/CCW run as standard
- spindle sleeve downfeed via three spoke hand wheel
- permanent oil bath lubricated gear with ground and hardened gear wheels
- massive base plate featuring T-slots enables the mounting of oversize height workpieces
- powerful motor assures max. drilling performance at continuous duty
- torsion resistant column with smoothed surface
- height adjustable spindle protection with microswitch for your safety
- fine infeed via precision wheel positioned at machine front with depth scale indication
- included in delivery: drill chuck 16mm, reducer MT4/3, MT3/2, wedge, drawbar M12
Technical details
motor data
- motor power s6 in W: 1500
- motor power s1 in W: 1100
- voltage: 400V
- cable length: 2,5 m
measurements
- table size in mm: 550 x 480
- outreach in mm: 270
- max. height in mm: 2120
technical specification
- drilling spindle collet: MK4 / MT4
- quill travel: 120
- column diameter in mm: 115
- distance spindle-base in mm: 1260
- max. distance spindle-table in mm: 790
- max. drilling performance steel in mm: ø 32 (M16)
- max. drilling performance cast in mm: ø 40 (M20)
- drilling spindle speed in min-1: 95-1600 (6)
weight
