Holzmann SB4132SM 16mm Pillar Drill 415v
Product Code: HOL/SB4132SM_400V
Brand: Holzmann
£1,079.99 Inc. VAT
£899.99 Exc. VAT

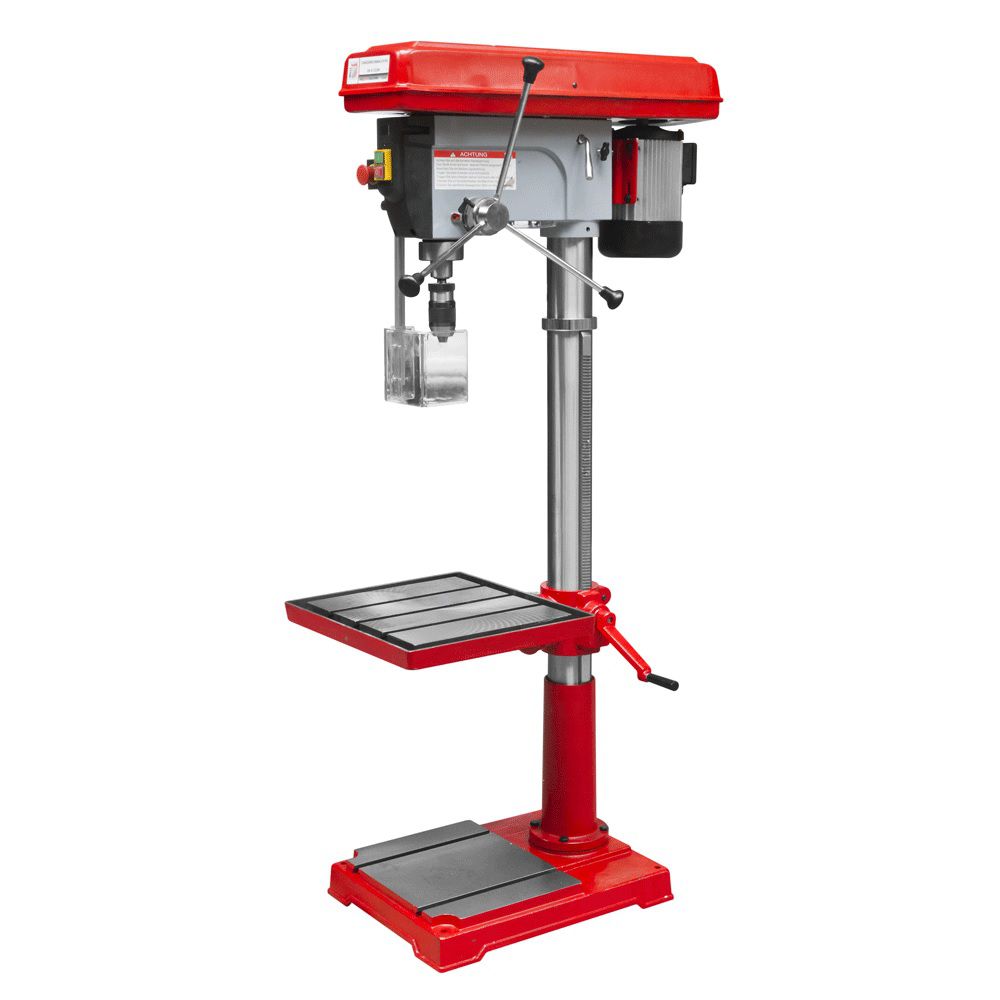

Holzmann SB4132SM 16mm Pillar Drill 415v
Key Features
- left/right rotation 2- step motor
- speed range 60-3480min-1
- features solid, polished base with T-nuts
- aluminum motor according IP54
- torsion-resistant, solid and polished steel column
- the worktable is tiltable from-45° to +45° and rotates 360° around table center and column
- spindle protection cover
- adjustable drill depth stop with scale for accurate drill depth control
- selection switch for CW/CCW-rotation
- 2-step motor
- SB4132SM 16mm Pillar drill + left & right rotation 2 step motor + selection switch for CW & CCW rptation + aluminium motoraccording to IP54 + 24 speeds 60-3480 rpm + inclinable table 45Deg +/- + practical tri-arm lever w depth scale + quick action chuck 3-16mm B18 + 700/1100W (S1) motor 415v Professional
Technical details
motor data
- motor power s6 in W 1500/2200
- motor power s1 in W 700/1100
- voltage 400V
measurements
- total dimensions in mm 570x870x1710
- table size in mm 475×420
- outreach in mm 257
- max. height in mm 1710
technical specification
- max. drilling performance in mm 32
- base in mm 580×450
- spindle stroke in mm 120
- distance spindle-base in mm 1160
- max. distance spindle-table in mm 680
- drilling spindle collet MK4 / MT4
- drilling spindle speed in min-1 (24) 60-3480
weight
